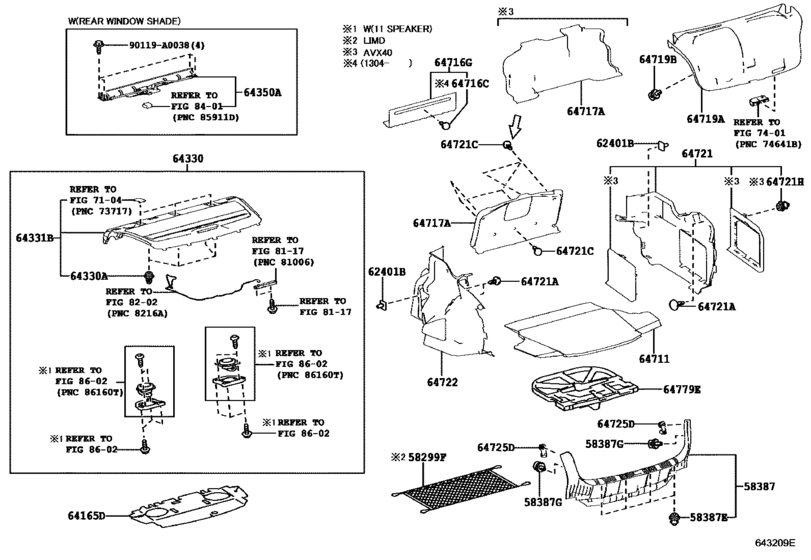

Package Tray Panel & Luggage Compartment Mat ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58299F
|
58299F
58299-AA010 Net, Baggage Holder[10.2012 - 10.2015] AVX40,GSX40..LIMD |
58299-AA010 |
US $91.73 |
||
|
58387
|
58387
58387-07010
Plate, Rear Floor Finish
[10.2012 - 10.2015] AVX40,GSX40 |
58387-07010 |
— | ||
|
58387E
|
58387E
62489-0E010 Clip(For Rear Floor Finish Plate)[10.2012 - 10.2015] AVX40,GSX40 |
62489-0E010 |
from US $1.24 |
||
|
58387G
|
58387G
90467-07201 Clamp(For Cool Air Intake)[10.2012 - 10.2015] AVX40,GSX40 |
90467-07201 |
from US $1.13 |
||
|
62401B
|
62401B
90530-25010 Fastener, Hook[10.2012 - 10.2015] AVX40,GSX40 |
90530-25010 |
from US $1.54 |
||
|
64165D
|
64165D
64165-07020
Cover, Upper Back Panel Hole, No.1
[10.2012 - 10.2015] AVX40,GSX40 |
64165-07020 |
— | ||
|
64165D
|
64165D
64165-07030
Cover, Upper Back Panel Hole, No.1
[10.2012 - 10.2015] AVX40,GSX40..LIMD SEAT HEATER-WITH(FRONT & REAR SEAT) |
64165-07030 |
— | ||
|
64330
|
64330
64330-07010-A0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40 FLAXEN,TRIM0# |
64330-07010-A0 |
— | ||
|
64330
|
64330
64330-07010-B0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40 LT.GRAY,TRIM1# |
64330-07010-B0 |
— | ||
|
64330
|
64330
64330-07010-C0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM2# |
64330-07010-C0 |
— | ||
|
64330
|
64330
64330-07020-A0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0# |
64330-07020-A0 |
— | ||
|
64330
|
64330
64330-07020-B0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1# |
64330-07020-B0 |
— | ||
|
64330
|
64330
64330-07020-C0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,BLACK,TRIM2# |
64330-07020-C0 |
— | ||
|
64330
|
64330
64330-07030-A0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT |
64330-07030-A0 |
— | ||
|
64330
|
64330
64330-07030-B0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEA |
64330-07030-B0 |
— | ||
|
64330
|
64330
64330-07030-C0
Panel Assy, Package Tray Trim
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT) |
64330-07030-C0 |
— | ||
|
64330
|
64330
64330-07040-A0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),FLAXEN,TRIM 0# |
64330-07040-A0 |
— | ||
|
64330
|
64330
64330-07040-B0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),LT.GRAY,TRI M1# |
64330-07040-B0 |
— | ||
|
64330
|
64330
64330-07040-C0
Panel Assy, Package Tray Trim
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),BLACK,TRIM2 # |
64330-07040-C0 |
— | ||
|
64330A
|
64330A
90467-A0006 Clip(For Front Fender Seal)[10.2012 - 10.2015] AVX40,GSX40 |
90467-A0006 |
from US $0.94 |
||
|
64331B
|
64331B
64330-07050-A0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40 FLAXEN,TRIM0# |
64330-07050-A0 |
— | ||
|
64331B
|
64331B
64330-07050-B0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40 LT.GRAY,TRIM1# |
64330-07050-B0 |
— | ||
|
64331B
|
64331B
64330-07050-C0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM2# |
64330-07050-C0 |
— | ||
|
64331B
|
64331B
64330-07060-A0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0# |
64330-07060-A0 |
— | ||
|
64331B
|
64331B
64330-07060-B0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1# |
64330-07060-B0 |
— | ||
|
64331B
|
64331B
64330-07060-C0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,BLACK,TRIM2# |
64330-07060-C0 |
— | ||
|
64331B
|
64331B
64330-07070-A0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),FLAXEN,TRIM 0# |
64330-07070-A0 |
— | ||
|
64331B
|
64331B
64330-07070-B0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),LT.GRAY,TRI M1# |
64330-07070-B0 |
— | ||
|
64331B
|
64331B
64330-07070-C0
Board, Package Tray Trim, Front
[10.2012 - 10.2015] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT),BLACK,TRIM2 # |
64330-07070-C0 |
— | ||
|
64331B
|
64331B
64330-07080-A0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),FLAXEN,TRIM0#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT |
64330-07080-A0 |
— | ||
|
64331B
|
64331B
64330-07080-B0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LT.GRAY,TRIM1#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEA |
64330-07080-B0 |
— | ||
|
64331B
|
64331B
64330-07080-C0
Board, Package Tray Trim, Front
[10.2012 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),BLACK,TRIM2#; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT) |
64330-07080-C0 |
— | ||
|
64350A
|
64350A
64333-07040
Shade Assy, Rear Window
[10.2012 - 08.2014] GSX40..LIMD KOREA SPEC&SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)& AUDIO-AVN(KOREA SPEC) & 11SPEAKER; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT); AVX40,GSX40..LI |
64333-07040 |
— | ||
| replacement | |||||
|
64350A
|
64350A
64333-07041
Shade Assy, Rear Window
[10.2012 - 08.2014] GSX40..LIMD KOREA SPEC&SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)& AUDIO-AVN(KOREA SPEC) & 11SPEAKER; AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT); AVX40,GSX40..LI |
64333-07041 |
— | ||
|
64350A
|
64350A
64333-07041
Shade Assy, Rear Window
[09.2014 - 10.2014] AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD SUN SHADE(REAR WINDOW)-WITH(POWER)&SEAT HEATER-WITH(FRONT & REAR SEAT)&AUDIO-AVN & |
64333-07041 |
— | ||
|
64711
|
64711
64711-07020-C0
Mat, Luggage Compartment Floor
[11.2012 - 10.2015] AVX40 BLACK,TRIM0#,1#,2# |
64711-07020-C0 |
— | ||
|
64716C
|
64716C
71769-06010-C0
Clip(For Luggage Compartment Trim Cover)
[04.2013 - 10.2015] AVX40,GSX40 BLACK |
71769-06010-C0 |
— | ||
|
64716G
|
64716G
64713-07010-C0
Cover, Luggage Compartment Trim, Rear
[10.2012 - 03.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
64713-07010-C0 |
— | ||
|
64716G
|
64716G
64713-07011-C0
Cover, Luggage Compartment Trim, Rear
[04.2013 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
64713-07011-C0 |
— | ||
|
64717A
|
64717A
64717-07020-C0
Cover, Luggage Compartment Trim, Front
[11.2012 - 10.2015] AVX40 BLACK,TRIM0#,1#,2# |
64717-07020-C0 |
— | ||
|
64719A
|
64719A
64719-07010-C0
Cover, Luggage Compartment Door
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
64719-07010-C0 |
— | ||
|
64719B
|
64719B
90467-A0037
Clip, No.4(For Floor Under Cover, Lh)
[10.2012 - 10.2015] AVX40,GSX40 |
90467-A0037 |
— | ||
|
64721
|
64721
64721-07020-C0
Cover, Luggage Compartment Trim, Inner Rh
[11.2012 - 10.2015] AVX40 BLACK,TRIM0#,1#,2# |
64721-07020-C0 |
— | ||
|
64721A
|
64721A
90467-A0002-C0
Clip
[10.2012 - 10.2015] AVX40,GSX40 BLACK |
90467-A0002-C0 |
— | ||
|
64721H
|
64721H
62489-0E010 Clip(For Rear Floor Finish Plate)[11.2012 - 10.2015] AVX40 |
62489-0E010 |
from US $1.24 |
||
|
64722
|
64722
64722-07020-C0
Cover, Luggage Compartment Trim, Inner Lh
[11.2012 - 10.2015] AVX40 BLACK,TRIM0#,1#,2# |
64722-07020-C0 |
— | ||
|
64725D
|
64725D
64725-0T010-C0 Hook, Luggage Compartment Trim, No.1LUGGAGE COMPARTMENT TRIM, NO.1 [10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
64725-0T010-C0 |
US $13.86 |
||
|
64779E
|
64779E
64779-06010
Tray, Spare Wheel Cover
[10.2012 - 10.2015] AVX40,GSX40 |
64779-06010 |
— | ||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— | ||
