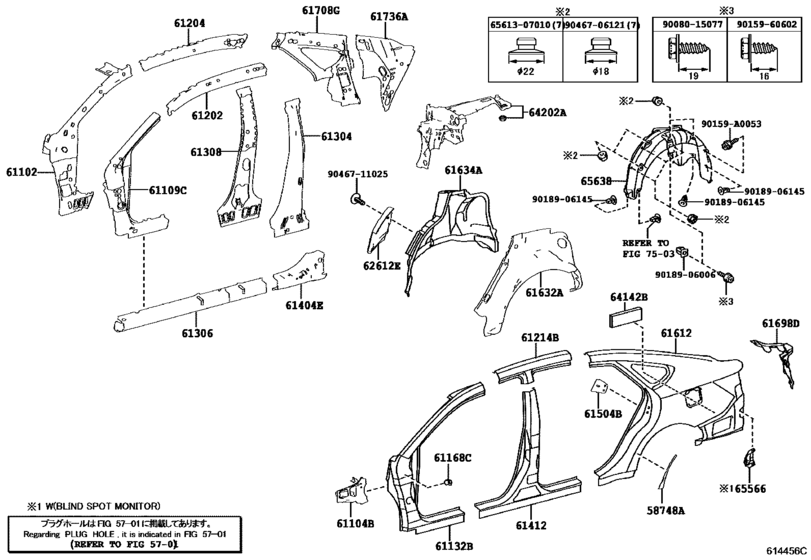

Side Member ([10.2012 - ] LH SIDE (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58748A
|
58748A
58748-07010 Protector, Quarter Panel, Rear Lh[10.2012 - 10.2015] AVX40,GSX40 |
58748-07010 |
from US $10.34 |
||
|
61102
|
61102
61102-07010
Panel Sub-Assy, Cowl Side, Lh
[10.2012 - 10.2014] AVX40,GSX40 |
61102-07010 |
— | ||
|
61102
|
61102
61102-07020
Panel Sub-Assy, Cowl Side, Lh
[10.2014 - 10.2015] AVX40,GSX40 |
61102-07020 |
— | ||
|
61102
|
61102
61102-07021
Panel Sub-Assy, Cowl Side, Lh
[10.2015 -] AVX40,GSX40 |
61102-07021 |
— | ||
|
61104B
|
61104B
61104-07010
Reinforcement Sub-Assy, Cowl Side, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61104-07010 |
— | ||
|
61109C
|
61109C
61109-07010
Reinforcement Sub-Assy, Front Pillar, Lower Lh
[10.2012 - 10.2014] AVX40,GSX40 |
61109-07010 |
— | ||
|
61109C
|
61109C
61109-07020
Reinforcement Sub-Assy, Front Pillar, Lower Lh
[10.2014 - 10.2015] AVX40,GSX40 |
61109-07020 |
— | ||
|
61109C
|
61109C
61109-07030
Reinforcement Sub-Assy, Front Pillar, Lower Lh
[10.2015 -] AVX40,GSX40 |
61109-07030 |
— | ||
|
61132B
|
61132B
61132-07020
Pillar, Front Body, Outer Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61132-07020 |
— | ||
|
61168C
|
61168C
61168-06010 Bracket, Instrument Panel To Cowl Side, RhNO.6 PILLAR OUTER [10.2012 - 10.2015] AVX40,GSX40 |
61168-06010 |
US $2.91 |
||
|
61202
|
61202
61202-07010
Rail Sub-Assy, Roof Side, Lh
[10.2012 - 10.2014] AVX40,GSX40 |
61202-07010 |
— | ||
|
61202
|
61202
61202-07020
Rail Sub-Assy, Roof Side, Lh
[10.2014 - 10.2015] AVX40,GSX40 |
61202-07020 |
— | ||
|
61204
|
61204
61204-07010
Rail Sub-Assy, Roof Side, Inner Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61204-07010 |
— | ||
|
61204
|
61204
61204-07011
Rail Sub-Assy, Roof Side, Inner Lh
[10.2015 - 07.2016] AVX40,GSX40 |
61204-07011 |
— | ||
|
61204
|
61204
61204-07012
Rail Sub-Assy, Roof Side, Inner Lh
[08.2016 -] AVX40,GSX40 |
61204-07012 |
— | ||
|
61214B
|
61214B
61214-07010
Rail, Roof Side, Outer No.2 Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61214-07010 |
— | ||
|
61304
|
61304
61304-07010
Reinforce Sub-Assy, Center Body Pillar, Upper Lh
[10.2012 - 09.2014] AVX40,GSX40 |
61304-07010 |
— | ||
| replacement | |||||
|
61304
|
61304
61304-07020
Reinforce Sub-Assy, Center Body Pillar, Upper Lh
[10.2012 - 09.2014] AVX40,GSX40 |
61304-07020 |
— | ||
|
61304
|
61304
61304-07020
Reinforce Sub-Assy, Center Body Pillar, Upper Lh
[10.2014 - 10.2015] AVX40,GSX40 |
61304-07020 |
— | ||
|
61306
|
61306
61306-06905
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[10.2012 - 10.2014] AVX40,GSX40 |
61306-06905 |
— | ||
|
61306
|
61306
61306-06909
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[10.2014 - 10.2015] AVX40,GSX40 |
61306-06909 |
— | ||
|
61308
|
61308
61308-07010
Pillar Sub-Assy, Center Body, Inner Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61308-07010 |
— | ||
|
61308
|
61308
61308-07020
Pillar Sub-Assy, Center Body, Inner Lh
[10.2015 -] AVX40,GSX40 |
61308-07020 |
— | ||
|
61404E
|
61404E
61404-07010
Reinforce Sub-Assy, Rocker, Outer Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61404-07010 |
— | ||
|
61412
|
61412
61312-07030
Panel, Rocker, Outer Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61312-07030 |
— | ||
|
61504B
|
61504B
61504-07030
Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61504-07030 |
— | ||
|
61612
|
61612
61602-07050
Panel, Quarter, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61602-07050 |
— | ||
|
61632A
|
61632A
61632-07020
Panel, Quarter Wheel House, Outer Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61632-07020 |
— | ||
|
61634A
|
61634A
61634-06910
Panel, Quarter Wheel House, Inner Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61634-06910 |
— | ||
|
61698D
|
61698D
61698-06904
Housing, Quarter Panel End, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61698-06904 |
— | ||
|
61708G
|
61708G
61708-07010
Panel Sub-Assy, Roof Side, Inner Front Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61708-07010 |
— | ||
|
61708G
|
61708G
61708-07011
Panel Sub-Assy, Roof Side, Inner Front Lh
[10.2015 -] AVX40,GSX40 |
61708-07011 |
— | ||
|
61736A
|
61736A
61736-07030
Panel, Roof Side, Inner Rear Lh
[10.2012 - 10.2015] AVX40,GSX40 |
61736-07030 |
— | ||
|
62612E
|
62612E
62612-06090
Insulator, Quarter Wheel House, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
62612-06090 |
— | ||
|
64142B
|
64142B
63357-0E010
Silencer, Roof
[10.2012 - 10.2015] AVX40,GSX40 |
63357-0E010 |
— | ||
|
64202A
|
64202A
64202-07020
Strainer Sub-Assy, Package Tray To Floor, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
64202-07020 |
— | ||
|
65566
|
65566
65565-07010 Patch, Side Panel Rear End, Rh[10.2012 - 10.2015] AVX40,GSX40..LIMD; AVX40,GSX40..XLE,XLETO BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
65565-07010 |
US $18.19 |
||
|
65638
|
65638
65638-07020
Liner, Rear Wheel House, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
65638-07020 |
— | ||
|
90159A0053
|
90159A0053
90159-A0053
New Genuine Part
|
90159-A0053 |
— | ||
|
6561307010
|
6561307010
65613-07010 Strip, Side Gate Hinge, Inside |
65613-07010 |
US $2.18 |
||
|
9008015077
|
9008015077
90080-15077
New Genuine Part
|
90080-15077 |
— | ||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906145
|
9018906145
90189-06145 GROMMET SCREW |
90189-06145 |
from US $1.01 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $3.22 |
||
|
9046711025
|
9046711025
90467-11025 Clip(For Front Floor Mat) |
90467-11025 |
US $1.92 |
||
