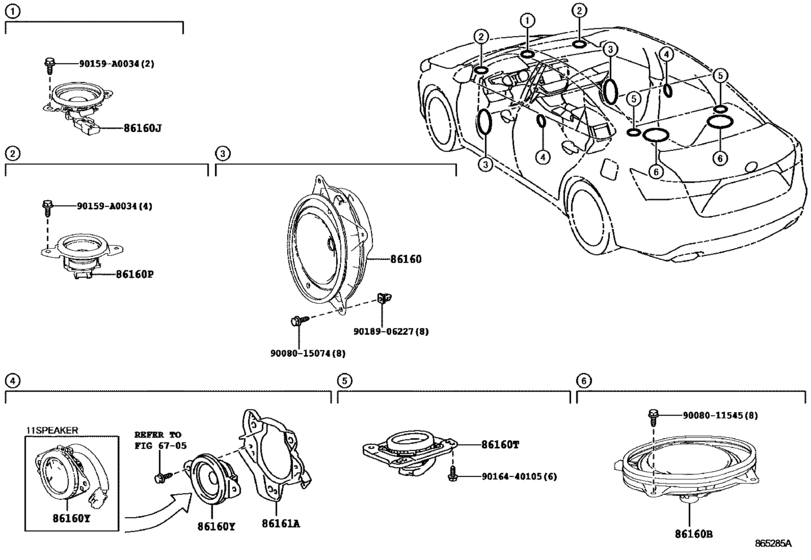

Speaker ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-07070
Speaker Assy, Front No.1
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO |
86160-07070 |
— | ||
|
86160
|
86160
86160-0WU60 Speaker Assy, Front No.1[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER |
86160-0WU60 |
US $240.24 |
||
|
86160B
|
86160B
86160-07090
Speaker Assy, Rear
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO |
86160-07090 |
— | ||
|
86160B
|
86160B
86160-0WU70
Speaker Assy, Rear
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER |
86160-0WU70 |
— | ||
|
86160J
|
86160J
86160-07080
Speaker Assy, Front No.3
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO |
86160-07080 |
— | ||
|
86160J
|
86160J
86160-0WU80
Speaker Assy, Front No.3
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER |
86160-0WU80 |
— | ||
|
86160P
|
86160P
86160-07060
Speaker Assy, Front No.2
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO |
86160-07060 |
— | ||
|
86160P
|
86160P
86160-0WU50 Speaker Assy, Front No.2[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER |
86160-0WU50 |
US $165.98 |
||
|
86160T
|
86160T
86150-07030
Speaker Assy, Rear Header
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),LH; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,LH |
86150-07030 |
— | ||
|
86160T
|
86160T
86150-07040
Speaker Assy, Rear Header
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX),RH; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,RH |
86150-07040 |
— | ||
|
86160Y
|
86160Y
86160-07060
Speaker Assy, Front No.2
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO |
86160-07060 |
— | ||
|
86160Y
|
86160Y
86160-07100
Speaker Assy, Rear No.2
[10.2012 - 10.2014] AVX40,GSX40..LIMD AUDIO-*DA & 11SPEAKER & WITH(EXTENSION BOX); AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER |
86160-07100 |
— | ||
|
86161A
|
86161A
86161-07010
Bracket, Speaker, Rear
[10.2012 - 10.2015] AVX40,GSX40 RH |
86161-07010 |
— | ||
|
86161A
|
86161A
86161-07020
Bracket, Speaker, Rear
[10.2012 - 10.2015] AVX40,GSX40 LH |
86161-07020 |
— | ||
|
90159A0034
|
90159A0034
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
||
|
9008015074
|
9008015074
90080-15074 New Genuine Part |
90080-15074 |
US $0.73 |
||
|
9016440105
|
9016440105
90164-40105 SCREW BINDING |
90164-40105 |
US $1.12 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
