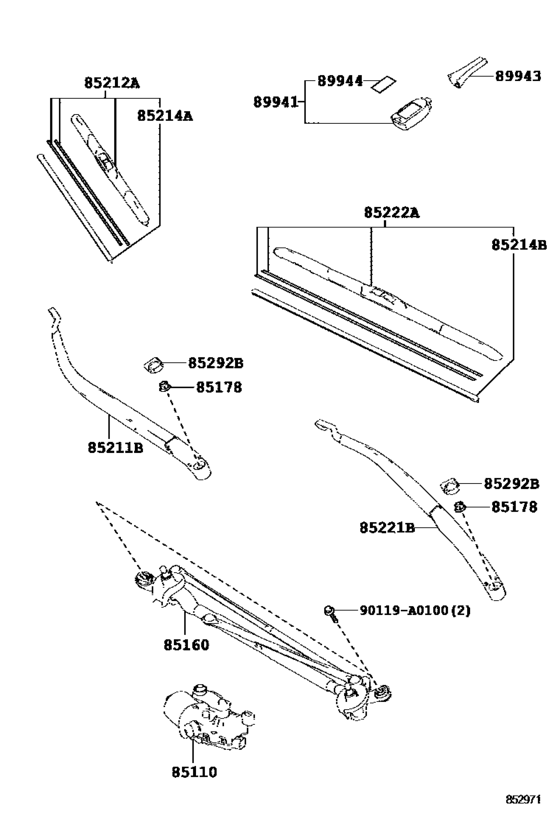

Windshield Wiper ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-06120
Motor Assy, Windshield Wiper
[10.2012 - 09.2014] AVX40,GSX40 |
85110-06120 |
— | ||
|
85110
|
85110
85110-06190
Motor Assy, Windshield Wiper
[10.2014 - 10.2015] AVX40,GSX40 |
85110-06190 |
— | ||
|
85160
|
85160
85150-07050
Link Assy, Windshield Wiper
[10.2012 - 10.2015] AVX40,GSX40 |
85150-07050 |
— | ||
|
85178
|
85178
90182-A0017
Nut (For Front Wiper Arm Setting)
[10.2012 - 10.2015] AVX40,GSX40 |
90182-A0017 |
— | ||
|
85211B
|
85211B
85211-07050
Arm, Front Wiper, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
85211-07050 |
— | ||
|
85212A
|
85212A
85212-06130 Blade, Fr Wiper, Rh[10.2012 - 10.2015] AVX40,GSX40 |
85212-06130 |
from US $31.74 |
||
|
85214A
|
85214A
85214-06100 Rubber, Wiper, Rh[10.2012 - 10.2015] AVX40,GSX40 |
85214-06100 |
US $11.65 |
||
|
85214B
|
85214B
85214-0E151 Rubber, Wiper, Lh[09.2015 - 10.2015] AVX40,GSX40 |
85214-0E151 |
from US $13.62 |
||
|
85214B
|
85214B
85214-0T050
Rubber, Wiper, Lh
[10.2012 - 08.2015] AVX40,GSX40 |
85214-0T050 |
— | ||
|
85221B
|
85221B
85221-07050
Arm, Front Wiper, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
85221-07050 |
— | ||
|
85222A
|
85222A
85222-06130 Blade, Fr Wiper, Lh[10.2012 - 08.2015] AVX40,GSX40 |
85222-06130 |
US $62.46 |
||
| replacement | |||||
|
85222A
|
85222A
85222-06131 Blade, Fr Wiper, Lh[10.2012 - 08.2015] AVX40,GSX40 |
85222-06131 |
US $68.29 |
||
|
85222A
|
85222A
85222-06131 Blade, Fr Wiper, Lh[09.2015 - 10.2015] AVX40,GSX40 |
85222-06131 |
US $68.29 |
||
|
85292B
|
85292B
85292-AA010 Cover, Windshield Wiper Arm[10.2012 - 10.2015] AVX40,GSX40 |
85292-AA010 |
from US $2.46 |
||
|
89941
|
89941
89941-52010 Sensor, Rain[10.2012 - 10.2015] AVX40,GSX40..LIMD |
89941-52010 |
from US $177.94 |
||
|
89943
|
89943
89943-42010 Cover, Rain Sensor[10.2012 - 10.2015] AVX40,GSX40..LIMD |
89943-42010 |
US $17.04 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[10.2012 - 10.2015] AVX40,GSX40..LIMD |
89944-42010 |
from US $13.26 |
||
|
90119A0100
|
90119A0100
90119-A0100
New Genuine Part
|
90119-A0100 |
— | ||
