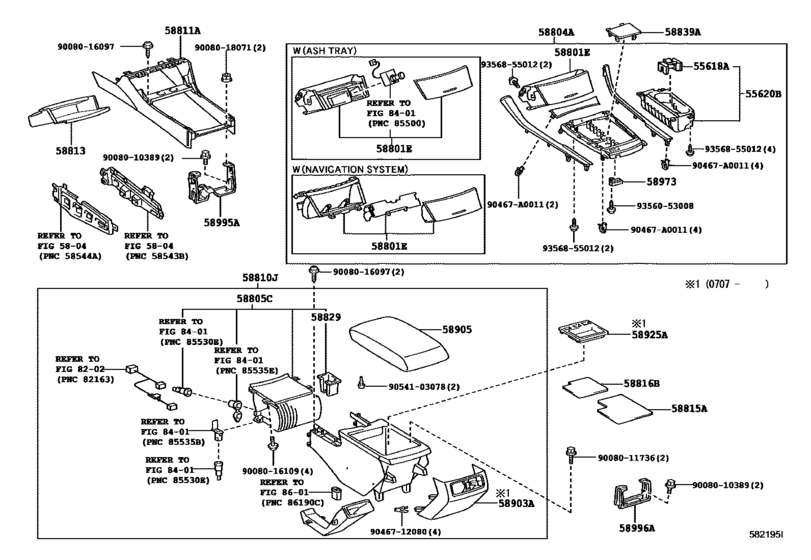

Console Box & Bracket ([01.2005 - ] (0501- )) Diagram Toyota AVALON
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Frame
- GSX30
- grade
- XL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2005
- To
- 07.2007
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55618A
|
55618A
55618-07011
Holder, Console Box Cup
[04.2005 - 05.2006] GSX30 |
55618-07011 |
— | ||
| replacement | |||||
|
55618A
|
55618A
55618-07012 Holder, Console Box Cup[04.2005 - 05.2006] GSX30 |
55618-07012 |
from US $7.06 |
||
|
55618A
|
55618A
55618-07012 Holder, Console Box Cup[06.2006 - 07.2007] GSX30 |
55618-07012 |
from US $7.06 |
||
|
55620B
|
55620B
55620-07010
Holder, Instrument Panel Cup
[01.2005 - 07.2007] GSX30 |
55620-07010 |
— | ||
|
58801E
|
58801E
58802-07010
Box Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30 |
58802-07010 |
— | ||
|
58801E
|
58801E
58802-07020
Box Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE; GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE; GSX30..LIMD,XLS AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE; GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE |
58802-07020 |
— | ||
|
58801E
|
58801E
58802-07050
Box Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30 ASH TRAY-WITH(FR) |
58802-07050 |
— | ||
|
58801E
|
58801E
58802-07060
Box Sub-Assy, Console, Upper
[08.2006 - 04.2007] GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH |
58802-07060 |
— | ||
| replacement | |||||
|
58801E
|
58801E
58802-07062
Box Sub-Assy, Console, Upper
[08.2006 - 04.2007] GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH |
58802-07062 |
— | ||
|
58801E
|
58801E
58802-07062
Box Sub-Assy, Console, Upper
[04.2007 - 07.2007] GSX30..XLS AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH; GSX30..LIMD EMV & NAVIGATION SYSTEM-WITH; GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH |
58802-07062 |
— | ||
|
58804A
|
58804A
58804-07010-B0
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL DARK GRAY,TRIM18 |
58804-07010-B0 |
— | ||
|
58804A
|
58804A
58804-07010-B1
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL SILVER,TRIM0#,16 |
58804-07010-B1 |
— | ||
|
58804A
|
58804A
58804-07030-B0
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,DARK GRAY,TRIM18; GSX30..XL AUDIO-AM/FM/CD-CH 9SP & CASSETTE,DARK GRAY,TRIM18; GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,DARK GRAY,TRIM1 8 |
58804-07030-B0 |
— | ||
|
58804A
|
58804A
58804-07030-B1
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,SILVER,TRIM0#,16; GSX30..XL AUDIO-AM/FM/CD-CH 9SP & CASSETTE,SILVER,TRIM0#,16; GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,SILVER,TRIM0#,1 6 |
58804-07030-B1 |
— | ||
|
58804A
|
58804A
58804-07050-B0
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL ASH TRAY-WITH(FR),DARK GRAY,TRIM18 |
58804-07050-B0 |
— | ||
|
58804A
|
58804A
58804-07050-B1
Panel Sub-Assy, Console, Upper
[01.2005 - 07.2007] GSX30..XL ASH TRAY-WITH(FR),SILVER,TRIM0#,16 |
58804-07050-B1 |
— | ||
|
58804A
|
58804A
58804-07080-B0
Panel Sub-Assy, Console, Upper
[08.2006 - 10.2006] GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH,DARK GRAY,TRIM1# |
58804-07080-B0 |
— | ||
|
58804A
|
58804A
58804-07082-B0
Panel Sub-Assy, Console, Upper
[10.2006 - 04.2007] GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH,DARK GRAY,TRIM1# |
58804-07082-B0 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-07080-B0
Panel Sub-Assy, Console, Upper
[10.2006 - 04.2007] GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WI TH,DARK GRAY,TRIM1# |
58804-07080-B0 |
— | ||
|
58805C
|
58805C
58805-07010-A0
Panel Sub-Assy, Console, Upper Rear
[01.2005 - 07.2007] GSX30 IVORY,TRIM0# |
58805-07010-A0 |
— | ||
|
58805C
|
58805C
58805-07010-B0
Panel Sub-Assy, Console, Upper Rear
[01.2005 - 07.2007] GSX30 LT.GRAY,TRIM17 |
58805-07010-B0 |
— | ||
|
58805C
|
58805C
58805-07010-B1
Panel Sub-Assy, Console, Upper Rear
[01.2005 - 07.2007] GSX30 GRAY,TRIM16 |
58805-07010-B1 |
— | ||
|
58805C
|
58805C
58805-07010-B2
Panel Sub-Assy, Console, Upper Rear
[01.2005 - 07.2007] GSX30..XL DK.GRAY,TRIM18 |
58805-07010-B2 |
— | ||
|
58810J
|
58810J
58810-07020-A0
Box Assy, Console
[01.2005 - 07.2007] GSX30..XL,XLS IVORY,TRIM0# |
58810-07020-A0 |
— | ||
|
58810J
|
58810J
58810-07020-B0
Box Assy, Console
[01.2005 - 07.2007] GSX30..XL,XLS LT.GRAY,TRIM17 |
58810-07020-B0 |
— | ||
|
58810J
|
58810J
58810-07020-B1
Box Assy, Console
[01.2005 - 07.2007] GSX30..XL,XLS GRAY,TRIM16 |
58810-07020-B1 |
— | ||
|
58810J
|
58810J
58810-07020-B2
Box Assy, Console
[01.2005 - 07.2007] GSX30..XL DK.GRAY,TRIM18 |
58810-07020-B2 |
— | ||
|
58811A
|
58811A
58811-07020-A0
Box, Console, Front
[01.2005 - 07.2007] GSX30 IVORY,TRIM0# |
58811-07020-A0 |
— | ||
|
58811A
|
58811A
58811-07020-B0
Box, Console, Front
[01.2005 - 07.2007] GSX30 LT.GRAY,TRIM17 |
58811-07020-B0 |
— | ||
|
58811A
|
58811A
58811-07020-B1
Box, Console, Front
[01.2005 - 07.2007] GSX30 GRAY,TRIM16 |
58811-07020-B1 |
— | ||
|
58811A
|
58811A
58811-07020-B2
Box, Console, Front
[01.2005 - 07.2007] GSX30..XL DK.GRAY,TRIM18 |
58811-07020-B2 |
— | ||
|
58811A
|
58811A
58811-07030-A0
Box, Console, Front
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,IVORY,TRIM0#; GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE,IVORY,TRIM0#; GSX30 AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,IVORY,TRIM0# |
58811-07030-A0 |
— | ||
|
58811A
|
58811A
58811-07030-B0
Box, Console, Front
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,LT.GRAY,TRIM17; GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE,LT.GRAY,TRIM17; GSX30 AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,LT.GRAY,TRIM17 |
58811-07030-B0 |
— | ||
|
58811A
|
58811A
58811-07030-B1
Box, Console, Front
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,GRAY,TRIM16; GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE,GRAY,TRIM16; GSX30 AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,GRAY,TRIM16 |
58811-07030-B1 |
— | ||
|
58811A
|
58811A
58811-07030-B2
Box, Console, Front
[01.2005 - 07.2007] GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE,DK.GRAY,TRIM18; GSX30..XL AUDIO-AM/FM/CD-CH 9SP & CASSETTE,DK.GRAY,TRIM18; GSX30..XL AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,DK.GRAY,TRIM18 |
58811-07030-B2 |
— | ||
|
58813
|
58813
58813-07010
Box, Console, Upper
[01.2005 - 07.2007] GSX30 |
58813-07010 |
— | ||
|
58815A
|
58815A
58815-07010
Carpet, Console Box
[01.2005 - 07.2007] GSX30 |
58815-07010 |
— | ||
|
58816B
|
58816B
58816-AC010
Insert, Console Box
[01.2005 - 07.2007] GSX30 |
58816-AC010 |
— | ||
|
58829
|
58829
58806-07010
Pocket, Console Box
[01.2005 - 07.2007] GSX30 |
58806-07010 |
— | ||
|
58839A
|
58839A
58839-07010
Cover, Console Box Hole
[01.2005 - 07.2007] GSX30..XL,XLS; GSX30..XL,XLS SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE) |
58839-07010 |
— | ||
|
58905
|
58905
58905-07010-A0
Door Sub-Assy, Console Compartment
[01.2005 - 07.2007] GSX30..XL,XLS IVORY,TRIM0# |
58905-07010-A0 |
— | ||
|
58905
|
58905
58905-07010-B1
Door Sub-Assy, Console Compartment
[01.2005 - 07.2007] GSX30..XL,XLS GRAY,TRIM16 |
58905-07010-B1 |
— | ||
|
58905
|
58905
58905-07010-B2
Door Sub-Assy, Console Compartment
[01.2005 - 07.2007] GSX30..XL DK.GRAY,TRIM18 |
58905-07010-B2 |
— | ||
|
58973
|
58973
58966-07010
Pin, Console Compartment Door Lock
[01.2005 - 07.2007] GSX30 |
58966-07010 |
— | ||
|
58995A
|
58995A
58995-07020
Bracket, Console Box Mounting, No.1
[01.2005 - 07.2007] GSX30 |
58995-07020 |
— | ||
|
58996A
|
58996A
58996-07010
Bracket, Console Box Mounting, No.2
[01.2005 - 07.2007] GSX30 |
58996-07010 |
— | ||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
9008010389
|
9008010389
90080-10389
New Genuine Part
|
90080-10389 |
— | ||
|
9008011736
|
9008011736
90080-11736
New Genuine Part
|
90080-11736 |
— | ||
|
9008016097
|
9008016097
90080-16097 New Genuine Part |
90080-16097 |
US $0.73 |
||
|
9008016109
|
9008016109
90080-16109
New Genuine Part
|
90080-16109 |
— | ||
|
9008018071
|
9008018071
90080-18071
New Genuine Part
|
90080-18071 |
— | ||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.66 |
||
|
9356053008
|
9356053008
93560-53008 New Genuine Part |
93560-53008 |
US $1.60 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
