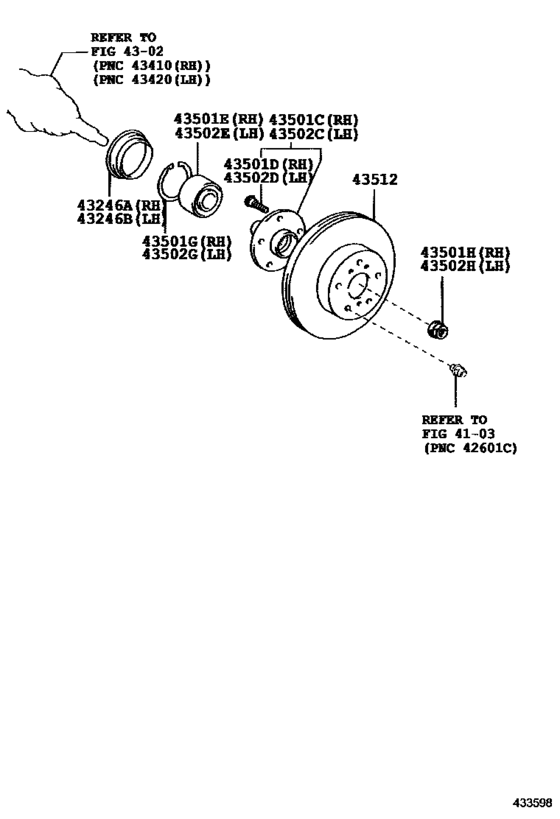

Front Axle Hub ([01.2005 - ] (0501- )) Diagram Toyota AVALON
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Frame
- GSX30
- grade
- XL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2005
- To
- 07.2007
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[01.2005 - 07.2007] GSX30 |
43246-28020 |
from US $12.27 |
||
|
43246B
|
43246B
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[01.2005 - 07.2007] GSX30 |
43246-28020 |
from US $12.27 |
||
|
43501C
|
43501C
43502-28100 Hub Sub-Assy, Front Axle[01.2005 - 07.2007] GSX30 (J) |
43502-28100 |
from US $100.19 |
||
|
43501C
|
43501C
43502-AA020
Hub Sub-Assy, Front Axle, Rh
[01.2005 - 08.2006] GSX30 (L) |
43502-AA020 |
— | ||
| replacement | |||||
|
43501C
|
43501C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[01.2005 - 08.2006] GSX30 (L) |
43502-AA021 |
— | ||
|
43501C
|
43501C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[09.2006 - 07.2007] GSX30 (L) |
43502-AA021 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[01.2005 - 07.2007] GSX30 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[01.2005 - 07.2007] GSX30 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90080-36193
Bearing (For Front Axle Hub Rh)
[01.2005 - 07.2007] GSX30 |
90080-36193 |
— | ||
|
43501G
|
43501G
90520-77001 Ring, Snap[01.2005 - 07.2007] GSX30 |
90520-77001 |
from US $3.18 |
||
|
43501H
|
43501H
90080-17238 Nut (For Rear Axle Shaft Rh)[01.2005 - 07.2007] GSX30 |
90080-17238 |
US $22.72 |
||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[01.2005 - 07.2007] GSX30 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-28100 Hub Sub-Assy, Front Axle[01.2005 - 07.2007] GSX30 (J) |
43502-28100 |
from US $100.19 |
||
|
43502C
|
43502C
43502-AA020
Hub Sub-Assy, Front Axle, Rh
[01.2005 - 08.2006] GSX30 (L) |
43502-AA020 |
— | ||
| replacement | |||||
|
43502C
|
43502C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[01.2005 - 08.2006] GSX30 (L) |
43502-AA021 |
— | ||
|
43502C
|
43502C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[09.2006 - 07.2007] GSX30 (L) |
43502-AA021 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[01.2005 - 07.2007] GSX30 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[01.2005 - 07.2007] GSX30 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90080-36193
Bearing (For Front Axle Hub Rh)
[01.2005 - 07.2007] GSX30 |
90080-36193 |
— | ||
|
43502G
|
43502G
90520-77001 Ring, Snap[01.2005 - 07.2007] GSX30 |
90520-77001 |
from US $3.18 |
||
|
43502H
|
43502H
90080-17238 Nut (For Rear Axle Shaft Rh)[01.2005 - 07.2007] GSX30 |
90080-17238 |
US $22.72 |
||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[01.2005 - 07.2007] GSX30 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-08030
Disc, Front
[01.2005 - 06.2006] GSX30 |
43512-08030 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-08040 Disc, Front[01.2005 - 06.2006] GSX30 |
43512-08040 |
US $192.54 |
||
|
43512
|
43512
43512-08040 Disc, Front[06.2006 - 07.2007] GSX30 |
43512-08040 |
US $192.54 |
||
