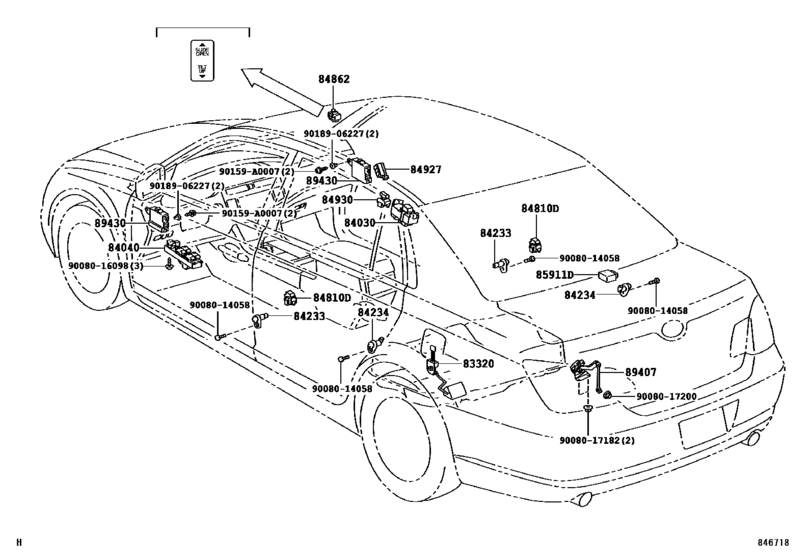

Switch & Relay & Computer ([01.2005 - ] DOOR,ROOF,FLOOR & LUGGAGE (0501- )) Diagram Toyota AVALON
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Frame
- GSX30
- grade
- XL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2005
- To
- 07.2007
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-07010
Gage Assy, Fuel Sender
[01.2005 - 07.2007] GSX30 |
83320-07010 |
— | ||
|
84030
|
84030
84030-AC040
Switch Assy,multiplex Network
[01.2005 - 07.2007] GSX30 |
84030-AC040 |
— | ||
|
84040
|
84040
84040-AC030
Master Switch Assy,multiplex Network
[01.2005 - 07.2007] GSX30 |
84040-AC030 |
— | ||
|
84233
|
84233
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[01.2005 - 07.2007] GSX30 |
84231-08030 |
US $10.56 |
||
|
84234
|
84234
84231-AA030 Switch Assy, Courtesy Lamp (For Rear Door)[01.2005 - 07.2007] GSX30 |
84231-AA030 |
US $8.56 |
||
|
84810D
|
84810D
84810-08010
Switch Assy, Power Window Regulator
[01.2005 - 07.2007] GSX30 |
84810-08010 |
— | ||
|
84862
|
84862
84862-AA030-A0 Switch, Slide Roof Motor[01.2005 - 07.2007] GSX30..LIMD,XLS IVORY,TRIM0#; GSX30..XL SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE),IVORY,TRIM0# |
84862-AA030-A0 |
US $47.76 |
||
|
84862
|
84862
84862-AA030-B0 Switch, Slide Roof Motor[01.2005 - 07.2007] GSX30..LIMD,XLS LT.GRAY,TRIM16,17; GSX30..XL SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE),LT.GRAY,TRIM16,17 |
84862-AA030-B0 |
US $47.76 |
||
|
84862
|
84862
84862-AA030-B2
Switch, Slide Roof Motor
[01.2005 - 07.2007] GSX30..XL SUN ROOF & MOON ROOF-MOON ROOF(TILT & SLIDE),GRAY,TRIM18 |
84862-AA030-B2 |
— | ||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[01.2005 - 07.2007] GSX30 |
84930-AA020 |
— | ||
|
89407
|
89407
89407-41010 Sensor Sub-Assy, Height Control, Rear Rh[01.2005 - 07.2007] GSX30..LIMD; GSX30..XL GRADE PACKAGE-SPORTS PACKAGE |
89407-41010 |
from US $262.51 |
||
|
90159A0007
|
90159A0007
90159-A0007 New Genuine Part |
90159-A0007 |
US $0.73 |
||
|
9008014058
|
9008014058
90080-14058
New Genuine Part
|
90080-14058 |
— | ||
|
9008016098
|
9008016098
90080-16098
New Genuine Part
|
90080-16098 |
— | ||
|
9008017182
|
9008017182
90080-17182
NUT FLANGE
|
90080-17182 |
— | ||
|
9008017200
|
9008017200
90080-17200
New Genuine Part
|
90080-17200 |
— | ||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
