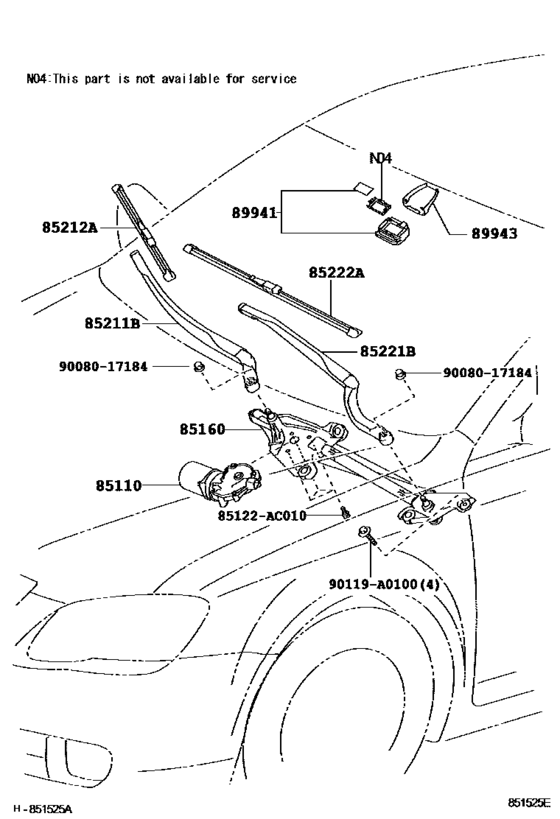

Windshield Wiper ([01.2005 - ] (0501- )) Diagram Toyota AVALON
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Frame
- GSX30
- grade
- XL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2005
- To
- 07.2007
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-AC010
Motor Assy, Windshield Wiper
[01.2005 - 07.2007] GSX30 |
85110-AC010 |
— | ||
|
85160
|
85160
85150-AC010
Link Assy, Windshield Wiper
[01.2005 - 07.2007] GSX30 |
85150-AC010 |
— | ||
|
85211B
|
85211B
85211-AC010
Arm, Front Wiper, Rh
[01.2005 - 07.2007] GSX30 |
85211-AC010 |
— | ||
|
85212A
|
85212A
85212-AC010
Blade, Fr Wiper, Rh
[01.2005 - 07.2007] GSX30 |
85212-AC010 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-AC011 Blade, Fr Wiper, Rh[01.2005 - 07.2007] GSX30 |
85212-AC011 |
from US $34.21 |
||
|
85221B
|
85221B
85221-AC010
Arm, Front Wiper, Lh
[01.2005 - 07.2007] GSX30 |
85221-AC010 |
— | ||
|
85222A
|
85222A
85222-AC010
Blade, Fr Wiper, Lh
[01.2005 - 04.2006] GSX30 |
85222-AC010 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-AC012 Blade, Fr Wiper, Lh[01.2005 - 04.2006] GSX30 |
85222-AC012 |
from US $56.78 |
||
|
85222A
|
85222A
85222-AC011
Blade, Fr Wiper, Lh
[05.2006 - 07.2007] GSX30 |
85222-AC011 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-AC012 Blade, Fr Wiper, Lh[05.2006 - 07.2007] GSX30 |
85222-AC012 |
from US $56.78 |
||
|
85122AC010
|
85122AC010
85122-AC010
Plate, Windshield Wiper Motor Cam
|
85122-AC010 |
— | ||
|
90119A0100
|
90119A0100
90119-A0100
New Genuine Part
|
90119-A0100 |
— | ||
|
9008017184
|
9008017184
90080-17184 Nut (For Front Wiper Arm Setting) |
90080-17184 |
US $1.12 |
||
