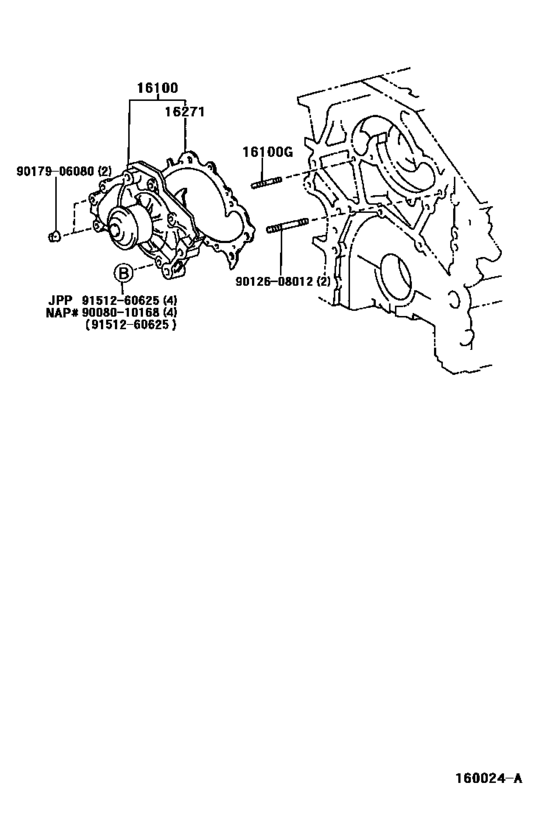

Water Pump ([03.1995 - ] (9503- )) Diagram Toyota AVALON
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- MCX10
- body
- SED
- ENGINE
- 1MZFE
- From
- 03.1995
- To
- 02.2000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09070
Pump Assy, Engine Water
[03.1995 -] 1MZFE..MCX10 |
16100-09070 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-29085 Pump Assy, Engine Water[03.1995 -] 1MZFE..MCX10 |
16100-29085 |
from US $182.42 |
||
|
16100G
|
16100G
90116-06144 Bolt, Stud(For Water Pump Set)[03.1995 -] 1MZFE..MCX10 |
90116-06144 |
US $1.92 |
||
|
16271
|
16271
16271-20020 Gasket, Water Pump[03.1995 -] 1MZFE..MCX10 |
16271-20020 |
US $18.70 |
||
|
9008010168
|
9008010168
90080-10168
New Genuine Part
|
90080-10168 |
— | ||
|
9012608012
|
9012608012
90126-08012 STUD HEX LOBULAR |
90126-08012 |
US $9.76 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.51 |
||
|
9151260625
|
9151260625
91512-60625 Bolt(For Cylinder Head Cover) |
91512-60625 |
US $1.46 |
||
| replacement | |||||
|
9151260625
|
9151260625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.92 |
||
