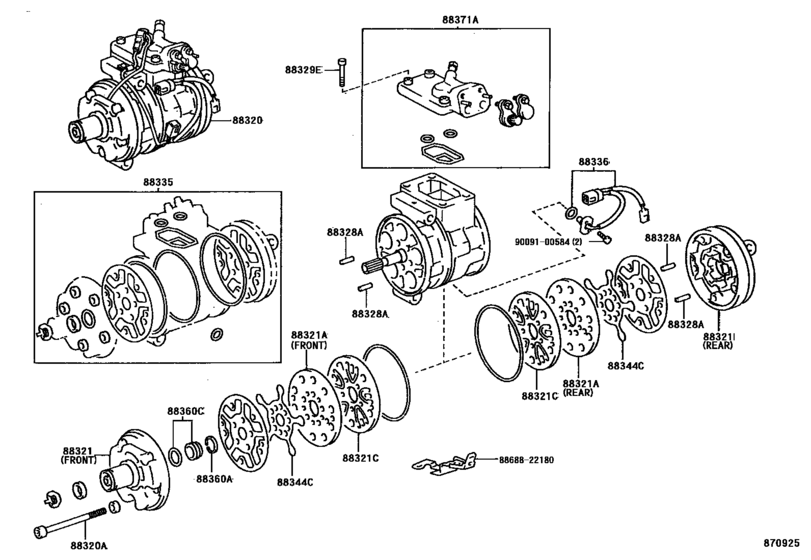

Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) Diagram Toyota AVALON
- Year
- 1994 - 1999
- Sales region
- U.S.A.
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-06050
Compressor Assy, Cooler
[09.1994 -] MCX10 |
88320-06050 |
— | ||
|
88320A
|
88320A
90068-04006
Bolt, Through
[09.1997 -] MCX10 |
90068-04006 |
— | ||
|
88320A
|
88320A
90099-04108
Bolt, Through
[09.1994 - 12.1994] MCX10 |
90099-04108 |
— | ||
| replacement | |||||
|
88320A
|
88320A
90099-04958
Bolt, Through
[09.1994 - 12.1994] MCX10 |
90099-04958 |
— | ||
|
88320A
|
88320A
90099-04958
Bolt, Through
[12.1994 - 09.1997] MCX10 |
90099-04958 |
— | ||
|
88321
|
88321
88321-06060
Head, Cooler Compressor Cylinder
[09.1997 -] MCX10..USA FRONT |
88321-06060 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[09.1994 - 09.1997] MCX10 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88322-06060
Head, Cooler Compressor Cylinder
[09.1997 -] MCX10 REAR |
88322-06060 |
— | ||
|
88321
|
88321
88322-32050
Head, Cooler Compressor Cylinder
[09.1994 - 09.1997] MCX10 REAR |
88322-32050 |
— | ||
|
88321A
|
88321A
88341-06050
Plate Sub-Assy, Valve
[09.1997 -] MCX10 FRONT |
88341-06050 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[09.1994 - 09.1997] MCX10 FRONT |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-06040
Plate Sub-Assy, Valve
[09.1997 -] MCX10 REAR |
88342-06040 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[09.1994 - 09.1997] MCX10 REAR |
88342-22010 |
— | ||
|
88321C
|
88321C
88343-06030
Reed, Suction Valve
[09.1997 -] MCX10 |
88343-06030 |
— | ||
|
88321C
|
88321C
88343-14020
Reed, Suction Valve
[09.1994 - 09.1997] MCX10 |
88343-14020 |
— | ||
|
88328A
|
88328A
90068-08001
Pin, Compressor
[09.1997 -] MCX10 |
90068-08001 |
— | ||
|
88328A
|
88328A
90099-08058
Pin, Cylinder Block
[09.1994 - 09.1997] MCX10 |
90099-08058 |
— | ||
|
88329E
|
88329E
90068-04007
Bolt, Compressor, No.1
[09.1997 -] MCX10 |
90068-04007 |
— | ||
|
88329E
|
88329E
90099-04924
Bolt, Service Valve
[09.1994 - 09.1997] MCX10 |
90099-04924 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[09.1994 -] MCX10 |
88335-2B030 |
from US $39.29 |
||
|
88336
|
88336
88336-33040
Sensor, Compressor
[09.1994 -] MCX10 |
88336-33040 |
— | ||
|
88344C
|
88344C
88344-06050
Reed, Discharge Valve
[09.1997 -] MCX10 |
88344-06050 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[09.1994 - 09.1997] MCX10 |
88344-22010 |
— | ||
|
88360A
|
88360A
90068-07002
Ring, Compressor Seal Plate Snap
[09.1997 -] MCX10 |
90068-07002 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.1994 - 09.1997] MCX10 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-06030
Seal Assy, Shaft
[09.1997 -] MCX10 |
88360-06030 |
— | ||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.1994 - 09.1997] MCX10 |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-33040
Valve, Suction
[09.1994 -] MCX10 |
88371-33040 |
— | ||
|
8868822180
|
8868822180
88688-22180
Bracket, Cooler
|
88688-22180 |
— | ||
|
9009100584
|
9009100584
90091-00584
New Genuine Part
|
90091-00584 |
— | ||
