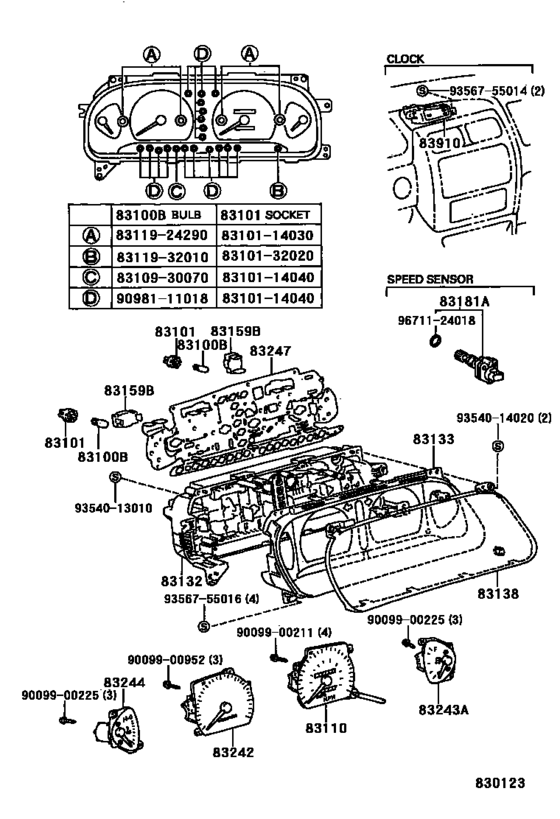

Meter ([09.1994 - 09.1997] (9409-9709)) Diagram Toyota AVALON
- Year
- 1994 - 1999
- Sales region
- U.S.A.
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[09.1994 - 09.1997] MCX10 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-07010
Bulb, Combination Meter, No.1
[09.1997 -] MCX10 14V 3.78W |
83119-07010 |
— | ||
|
83100B
|
83100B
83119-24290 Bulb, Combination Meter, No.1[09.1994 - 09.1997] MCX10 14V 3.78W |
83119-24290 |
US $3.57 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[09.1994 - 09.1997] MCX10 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83120-02010 Bulb, Combination Meter, No.1COMBINATION METER, NO.1 [09.1997 -] MCX10 14V 3.0W |
83120-02010 |
US $6.84 |
||
|
83100B
|
83100B
83120-02020
Bulb, Combination Meter, No.1
[09.1997 -] MCX10 14V 2.0W |
83120-02020 |
— | ||
|
83100B
|
83100B
83120-02030 Bulb, Combination Meter, No.2COMBINATION METER, NO.1 [09.1997 -] MCX10..USA;MCX10..XL..CND 14V 1.4W,W(SOCKET) |
83120-02030 |
US $11.21 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1994 - 09.1997] MCX10..USA;MCX10..XL..CND 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1994 - 09.1997] MCX10 BULB;14V 3.78W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1994 - 09.1997] MCX10..USA;MCX10..XL..CND BULB;14V 1.4W,2.0W |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[09.1994 - 09.1997] MCX10 BULB;14V 3.0W |
83101-32020 |
US $6.12 |
||
|
83110
|
83110
83110-07010 Speedometer Assy[09.1994 - 09.1997] MCX10..USA |
83110-07010 |
US $401.86 |
||
|
83110
|
83110
83110-07011
Speedometer Assy
[09.1997 -] MCX10..USA |
83110-07011 |
— | ||
|
83110
|
83110
83110-07020 Speedometer Assy[09.1994 - 08.1996] MCX10..4FC..XLS..USA TAIWAN SPEC |
83110-07020 |
US $401.86 |
||
|
83110
|
83110
83110-07021
Speedometer Assy
[09.1997 -] MCX10..CND; MCX10..4FC..XLS..USA TAIWAN SPEC |
83110-07021 |
— | ||
|
83132
|
83132
83132-07010 Case, Combination MeterCOMBINATION METER [09.1994 - 09.1997] MCX10..USA |
83132-07010 |
US $107.74 |
||
|
83132
|
83132
83132-07011
Case, Combination Meter
[09.1997 -] MCX10..USA |
83132-07011 |
— | ||
|
83132
|
83132
83132-07020 Case, Combination MeterCOMBINATION METER [09.1994 - 08.1996] MCX10..4FC..XLS..USA TAIWAN SPEC |
83132-07020 |
US $107.74 |
||
|
83132
|
83132
83132-07021
Case, Combination Meter
[09.1997 -] MCX10..CND; MCX10..4FC..XLS..USA TAIWAN SPEC OR KOREA SPEC |
83132-07021 |
— | ||
|
83133
|
83133
83133-07010 Plate, Combination Meter, No.1COMBINATION METER, NO.1 [09.1994 -] MCX10 |
83133-07010 |
US $119.39 |
||
|
83138
|
83138
83138-07010 Glass, SpeedometerSPEEDOMETER [09.1994 -] MCX10 |
83138-07010 |
US $49.50 |
||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[09.1994 -] MCX10 |
83159-22170 |
US $54.69 |
||
|
83181A
|
83181A
83181-12040 Sensor, Speedometer[09.1994 -] MCX10 |
83181-12040 |
from US $181.71 |
||
|
83242
|
83242
83242-07010 Tachometer Assy, EngineENGINE [09.1994 -] MCX10..USA |
83242-07010 |
US $486.30 |
||
|
83242
|
83242
83242-07020 Tachometer Assy, EngineENGINE [09.1994 - 08.1996] MCX10..4FC..XLS..USA TAIWAN SPEC |
83242-07020 |
US $486.30 |
||
|
83243A
|
83243A
83243-07010 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [09.1994 -] MCX10 |
83243-07010 |
US $70.76 |
||
|
83244
|
83244
83244-07010 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [09.1994 -] MCX10 |
83244-07010 |
US $70.76 |
||
|
83247
|
83247
83247-07010 Plate, Meter CircuitMETER CIRCUIT [09.1994 - 09.1997] MCX10..USA;MCX10..XL..CND |
83247-07010 |
US $199.47 |
||
|
83247
|
83247
83247-07011
Plate, Meter Circuit
[09.1997 -] MCX10..USA;MCX10..XL..CND |
83247-07011 |
— | ||
|
83910
|
83910
83910-AC010
Clock Assy
[09.1994 - 08.1996] MCX10..USA;MCX10..XL..CND |
83910-AC010 |
— | ||
|
83910
|
83910
83910-AC020
Clock Assy
[09.1994 - 08.1996] MCX10..USA W(ANTI-THEFT DEVICE) |
83910-AC020 |
— | ||
|
83910
|
83910
83910-AC030
Clock Assy
[09.1994 - 08.1996] MCX10..XLS..CND; MCX10..XLS..USA W(ANTI-THEFT DEVICE & LUXURY PACKAGE) |
83910-AC030 |
— | ||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900952
|
9009900952
90099-00952
New Genuine Part
|
90099-00952 |
— | ||
|
9354013010
|
9354013010
93540-13010 SCREW |
93540-13010 |
from US $2.33 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9671124018
|
9671124018
96711-24018 Ring, O |
96711-24018 |
from US $2.34 |
||
