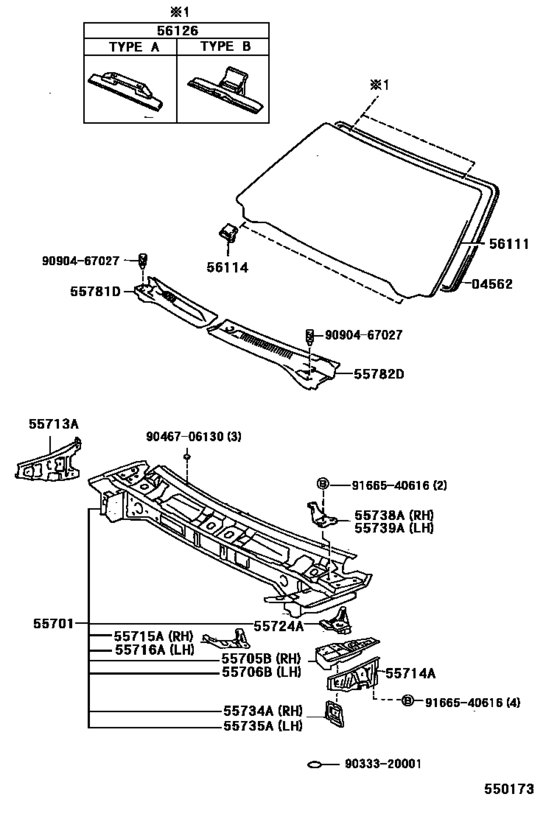

Cowl Panel & Windshield Glass ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[08.1995 -] MCX10 |
04562-12010 |
from US $31.92 |
||
|
55701
|
55701
55700-07010 Panel Sub-Assy, CowlCOWL [08.1998 -] MCX10 |
55700-07010 |
US $639.18 |
||
|
55701
|
55701
55700-07030 Panel Sub-Assy, CowlCOWL [08.1995 - 08.1998] MCX10 |
55700-07030 |
US $639.18 |
||
|
55705B
|
55705B
55705-07010 Panel Sub-Assy, Cowl Top Side, Rh[08.1995 -] MCX10 |
55705-07010 |
US $58.24 |
||
|
55706B
|
55706B
55706-07010 Panel Sub-Assy, Cowl Top Side, Lh[08.1995 -] MCX10 |
55706-07010 |
US $58.24 |
||
|
55713A
|
55713A
55713-07010 Panel, Cowl Top Side, Rh[08.1995 -] MCX10 |
55713-07010 |
US $33.49 |
||
|
55714A
|
55714A
55714-07010 Panel, Cowl Top Side, Lh[08.1995 -] MCX10 |
55714-07010 |
US $33.49 |
||
|
55715A
|
55715A
55715-33010 Brace, Cowl Top To Apron, Rh[08.1995 -] MCX10 |
55715-33010 |
US $22.57 |
||
|
55716A
|
55716A
55716-33010 Brace, Cowl Top To Apron, Lh[08.1995 -] MCX10 |
55716-33010 |
US $22.57 |
||
|
55724A
|
55724A
55724-07010
Reinforcement, Cowl Top Side, Lh
[08.1995 -] MCX10 |
55724-07010 |
— | ||
|
55734A
|
55734A
55734-06010 Plate, Water Guard, Rh[08.1995 -] MCX10 (L) |
55734-06010 |
US $11.21 |
||
|
55734A
|
55734A
55734-33010 Plate, Water Guard, Rh[08.1995 -] MCX10 (J) |
55734-33010 |
US $16.31 |
||
|
55735A
|
55735A
55735-06010 Plate, Water Guard, Lh[08.1995 -] MCX10 (L) |
55735-06010 |
US $11.21 |
||
|
55735A
|
55735A
55735-33010 Plate, Water Guard, Lh[08.1995 -] MCX10 (J) |
55735-33010 |
US $16.31 |
||
|
55738A
|
55738A
55738-07010 Stopper, Hood, Rh[08.1995 -] MCX10 |
55738-07010 |
US $9.61 |
||
|
55739A
|
55739A
55739-07010 Stopper, Hood, Lh[08.1995 -] MCX10 |
55739-07010 |
US $9.61 |
||
|
55781D
|
55781D
55781-41010 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [08.1995 -] MCX10 |
55781-41010 |
US $61.59 |
||
|
55782D
|
55782D
55782-41010 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [08.1995 -] MCX10 |
55782-41010 |
US $71.20 |
||
|
56111
|
56111
56101-AC030
Glass, Windshield
[08.1995 - 08.1996] MCX10 |
56101-AC030 |
— | ||
|
56111
|
56111
56101-AC050
Glass, Windshield
[08.1996 - 09.1997] MCX10 *TL,T=4.8,GREEN |
56101-AC050 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-AC100
Glass, Windshield
[08.1996 - 09.1997] MCX10 *TL,T=4.8,GREEN |
56101-AC100 |
— | ||
|
56111
|
56111
56101-AC080
Glass, Windshield
[08.1998 -] MCX10 *TL,T=4.8,GREEN |
56101-AC080 |
— | ||
|
56111
|
56111
56101-AC100
Glass, Windshield
[09.1997 - 08.1998] MCX10 *TL,T=4.8,GREEN |
56101-AC100 |
— | ||
|
56114
|
56114
56114-06010
Retainer, Windshield Glass
[08.1995 -] MCX10 |
56114-06010 |
— | ||
|
56126
|
56126
56126-22030 Spacer, Windshield Glass, No.2[08.1995 -] MCX10 TYPE A:REFER TO ILLUSTRATION |
56126-22030 |
US $2.08 |
||
|
56126
|
56126
56126-30010 Spacer, Windshield Glass, No.2[08.1995 - 09.1997] MCX10 TYPE B:REFER TO ILLUSTRATION |
56126-30010 |
US $1.69 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9046706130
|
9046706130
90467-06130 New Genuine Part |
90467-06130 |
US $1.89 |
||
|
9090467027
|
9090467027
90904-67027 New Genuine Part |
90904-67027 |
US $5.82 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
