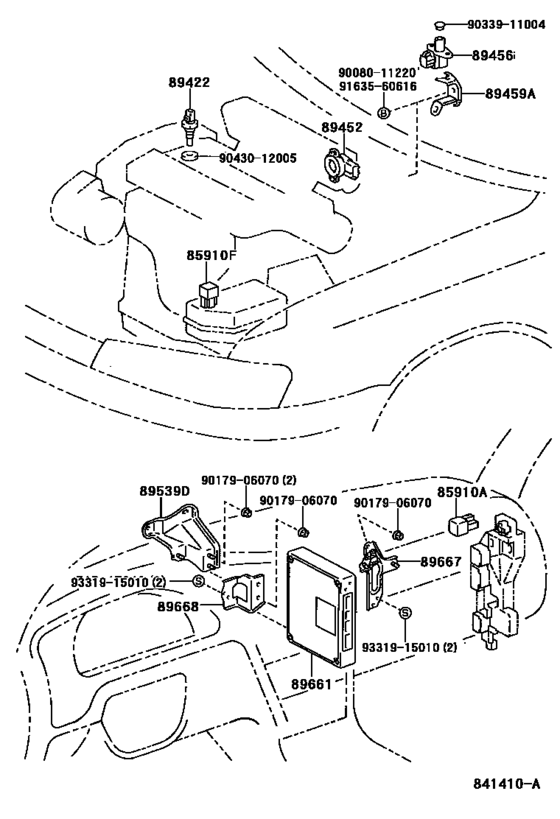

Electronic Fuel Injection System ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90084-98009 Relay, Ignition, No.1[08.1995 - 08.1999] MCX10 BOSCH |
90084-98009 |
US $57.95 |
||
|
85910A
|
85910A
90987-02009 Relay Assy[08.1995 - 08.1999] MCX10 DENSO |
90987-02009 |
from US $33.87 |
||
|
85910F
|
85910F
90084-98009 Relay, Ignition, No.1[08.1995 - 08.1999] MCX10 BOSCH |
90084-98009 |
US $57.95 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1995 - 08.1999] MCX10 DENSO |
90987-02009 |
from US $33.87 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1995 -] MCX10 |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-06020 Sensor, Throttle Position (For E.f.i.)[08.1996 -] MCX10 |
89452-06020 |
US $66.98 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[08.1995 - 08.1996] MCX10 |
89452-22090 |
from US $137.94 |
||
|
89456
|
89456
89456-30010 Resistor, VariableVARIABLE [08.1996 -] MCX10 |
89456-30010 |
from US $93.18 |
||
|
89456
|
89456
89456-50010
Resistor, Variable
[08.1995 - 08.1996] MCX10 |
89456-50010 |
— | ||
|
89459A
|
89459A
89459-41010 Bracket, Variable ResistorVARIABLE RESISTOR [08.1995 -] MCX10 |
89459-41010 |
US $6.84 |
||
|
89539D
|
89539D
89539-33050 Bracket, ComputerCOMPUTER [08.1995 -] MCX10 |
89539-33050 |
US $19.80 |
||
|
89661
|
89661
89661-07070 Computer, Engine ControlENGINE CONTROL [08.1995 - 08.1996] MCX10 |
89661-07070 |
US $1,892.80 |
||
|
89661
|
89661
89661-07110
Computer, Engine Control
[08.1996 - 09.1997] MCX10 |
89661-07110 |
— | ||
|
89661
|
89661
89661-07190
Computer, Engine Control
[09.1997 -] MCX10 |
89661-07190 |
— | ||
|
89667
|
89667
89667-07020
Bracket, Engine Control Computer
[08.1995 -] MCX10 |
89667-07020 |
— | ||
|
89668
|
89668
89668-07020
Bracket, Engine Control Computer, No.2
[08.1995 -] MCX10 |
89668-07020 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.52 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033911004
|
9033911004
90339-11004
New Genuine Part
|
90339-11004 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
