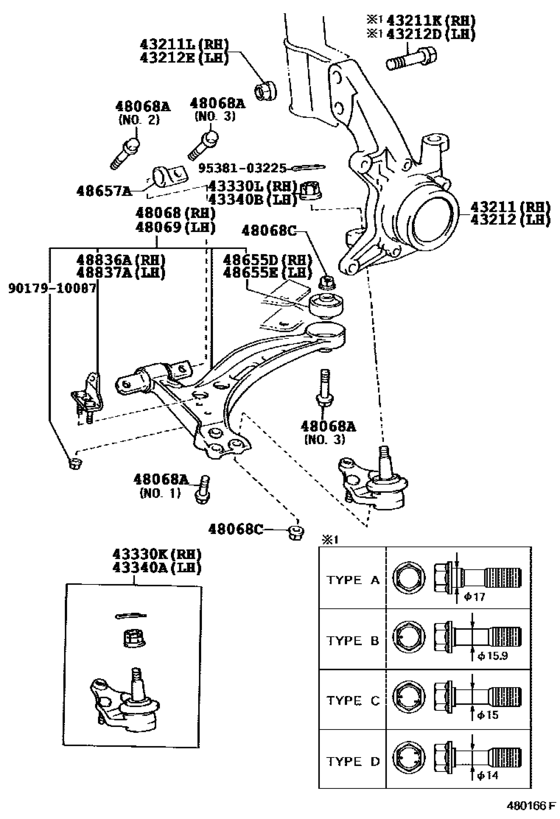

Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-06010
Knuckle, Steering, Rh
[08.1995 - 08.1996] MCX10 (L) |
43211-06010 |
— | ||
|
43211
|
43211
43211-06021 Knuckle, Steering, Rh[08.1995 - 08.1996] MCX10 W(ABS) |
43211-06021 |
US $266.45 |
||
|
43211
|
43211
43211-06070
Knuckle, Steering, Rh
[08.1996 -] MCX10 (L) |
43211-06070 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-33060 Knuckle, Steering, Rh[08.1996 -] MCX10 (L) |
43211-33060 |
US $267.90 |
||
|
43211
|
43211
43211-33020
Knuckle, Steering, Rh
[08.1995 - 07.1996] MCX10 (J) |
43211-33020 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-33011
Knuckle, Steering, Rh
[08.1995 - 07.1996] MCX10 (J) |
43211-33011 |
— | ||
|
43211
|
43211
43211-33060 Knuckle, Steering, Rh[07.1996 -] MCX10 (J) |
43211-33060 |
US $267.90 |
||
|
43211K
|
43211K
90105-17001 Bolt (For Absorber Setting)[08.1995 -] MCX10 OD=17,TYPE A:REFER TO ILLUSTRATION,SET BOLT,REFER R/M |
90105-17001 |
US $9.26 |
||
|
43211K
|
43211K
90105-17003 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=15.9,TYPE B:REFER TO ILLUSTRATION,*370 |
90105-17003 |
from US $5.07 |
||
|
43211K
|
43211K
90105-17004 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=15,TYPE C:REFER TO ILLUSTRATION,*370 |
90105-17004 |
US $6.99 |
||
|
43211K
|
43211K
90105-17005 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=14,TYPE D:REFER TO ILLUSTRATION,*370 |
90105-17005 |
US $6.60 |
||
|
43211L
|
43211L
90179-17001 Nut (For Absorber Setting)[08.1995 -] MCX10 |
90179-17001 |
US $4.16 |
||
|
43212
|
43212
43212-06010 Knuckle, Steering, Lh[08.1995 - 08.1996] MCX10 (L) |
43212-06010 |
US $184.91 |
||
|
43212
|
43212
43212-06021 Knuckle, Steering, Lh[08.1995 - 08.1996] MCX10 W(ABS) |
43212-06021 |
US $266.45 |
||
|
43212
|
43212
43212-06070
Knuckle, Steering, Lh
[08.1996 -] MCX10 (L) |
43212-06070 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-33060 Knuckle, Steering, Lh[08.1996 -] MCX10 (L) |
43212-33060 |
US $267.90 |
||
|
43212
|
43212
43212-33020 Knuckle, Steering, Lh[08.1995 - 07.1996] MCX10 (J) |
43212-33020 |
US $264.99 |
||
| replacement | |||||
|
43212
|
43212
43212-33011 Knuckle, Steering, Lh[08.1995 - 07.1996] MCX10 (J) |
43212-33011 |
US $264.99 |
||
|
43212
|
43212
43212-33060 Knuckle, Steering, Lh[07.1996 -] MCX10 (J) |
43212-33060 |
US $267.90 |
||
|
43212D
|
43212D
90105-17001 Bolt (For Absorber Setting)[08.1995 -] MCX10 OD=17,TYPE A:REFER TO ILLUSTRATION,SET BOLT,REFER R/M |
90105-17001 |
US $9.26 |
||
|
43212D
|
43212D
90105-17003 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=15.9,TYPE B:REFER TO ILLUSTRATION,*370 |
90105-17003 |
from US $5.07 |
||
|
43212D
|
43212D
90105-17004 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=15,TYPE C:REFER TO ILLUSTRATION,*370 |
90105-17004 |
US $6.99 |
||
|
43212D
|
43212D
90105-17005 Bolt (For Steering Knuckle Rh)[08.1995 -] MCX10 OD=14,TYPE D:REFER TO ILLUSTRATION,*370 |
90105-17005 |
US $6.60 |
||
|
43212E
|
43212E
90179-17001 Nut (For Absorber Setting)[08.1995 -] MCX10 |
90179-17001 |
US $4.16 |
||
|
43330K
|
43330K
43330-09050
Joint Assy, Lower Ball, Front
[08.1995 -] MCX10 |
43330-09050 |
— | ||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1995 -] MCX10 |
90171-14003 |
from US $1.37 |
||
|
43340A
|
43340A
43330-09050
Joint Assy, Lower Ball, Front
[08.1995 -] MCX10 |
43330-09050 |
— | ||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1995 -] MCX10 |
90171-14003 |
from US $1.37 |
||
|
48068
|
48068
48068-06040
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1996 - 01.1997] MCX10 (L) |
48068-06040 |
— | ||
|
48068
|
48068
48068-06050
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[05.1996 - 08.1996] MCX10 (L) |
48068-06050 |
— | ||
|
48068
|
48068
48068-07010
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1995 - 05.1996] MCX10 (L) |
48068-07010 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-06050
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1995 - 05.1996] MCX10 (L) |
48068-06050 |
— | ||
|
48068
|
48068
48068-07030 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1998 -] MCX10 |
48068-07030 |
from US $216.65 |
||
|
48068
|
48068
48068-33020 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1995 - 08.1996] MCX10 (J) |
48068-33020 |
US $339.25 |
||
|
48068
|
48068
48068-33030 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1996 - 01.1997] MCX10 (J) |
48068-33030 |
US $327.60 |
||
| replacement | |||||
|
48068
|
48068
48068-33031 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1996 - 01.1997] MCX10 (J) |
48068-33031 |
US $309.60 |
||
|
48068A
|
48068A
90080-10065
Bolt(For Front Suspension Lower Arm)
[02.1997 - 09.1997] MCX10 NO.1,(L) |
90080-10065 |
— | ||
|
48068A
|
48068A
90105-12122 Bolt (For Front Lower Ball Joint)[08.1998 -] MCX10 NO.1 |
90105-12122 |
US $3.68 |
||
|
48068A
|
48068A
90105-12216 Bolt(For Front Suspension Lower Arm)[08.1995 - 08.1998] MCX10 NO.1 |
90105-12216 |
US $4.16 |
||
|
48068A
|
48068A
90105-14081 Bolt(For Front Suspension Lower Arm)[08.1995 -] MCX10 NO.2 |
90105-14081 |
US $5.07 |
||
|
48068A
|
48068A
90105-14084 Bolt(For Front Suspension Lower Arm)[08.1995 -] MCX10 NO.3 |
90105-14084 |
US $6.60 |
||
|
48068C
|
48068C
90179-12052 Nut (For Front Lower Ball Joint Setting)[08.1998 -] MCX10 BALL JOINT SIDE |
90179-12052 |
US $3.04 |
||
|
48068C
|
48068C
90179-12103 Nut(For Front Suspension Lower Arm)[08.1995 - 08.1998] MCX10 BALL JOINT SIDE |
90179-12103 |
US $4.02 |
||
|
48068C
|
48068C
90179-14048 Nut(For Front Suspension Lower Arm)[08.1995 -] MCX10 BODY SIDE |
90179-14048 |
US $2.89 |
||
|
48069
|
48069
48069-06040
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1996 - 01.1997] MCX10 (L) |
48069-06040 |
— | ||
|
48069
|
48069
48069-06050
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[05.1996 - 08.1996] MCX10 (L) |
48069-06050 |
— | ||
|
48069
|
48069
48069-07010
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1995 - 05.1996] MCX10 (L) |
48069-07010 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-06050
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1995 - 05.1996] MCX10 (L) |
48069-06050 |
— | ||
|
48069
|
48069
48069-07030 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1998 -] MCX10 |
48069-07030 |
US $216.65 |
||
|
48069
|
48069
48069-33020 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1995 - 08.1996] MCX10 (J) |
48069-33020 |
US $339.25 |
||
|
48069
|
48069
48069-33030 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1996 - 01.1997] MCX10 (J) |
48069-33030 |
US $327.60 |
||
| replacement | |||||
|
48069
|
48069
48069-33031 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1996 - 01.1997] MCX10 (J) |
48069-33031 |
US $309.60 |
||
|
48655D
|
48655D
48655-07020 Bush, Front Lower Arm, No.2 Rh[08.1998 -] MCX10 |
48655-07020 |
from US $23.56 |
||
|
48655E
|
48655E
48655-07020 Bush, Front Lower Arm, No.2 Rh[08.1998 -] MCX10 |
48655-07020 |
from US $23.56 |
||
|
48657A
|
48657A
48657-33010 Stopper, Front Lower Arm Bush[08.1995 - 04.1996] MCX10 |
48657-33010 |
US $11.07 |
||
| replacement | |||||
|
48657A
|
48657A
48657-33020 Stopper, Front Lower Arm Bush[08.1995 - 04.1996] MCX10 |
48657-33020 |
from US $11.36 |
||
|
48657A
|
48657A
48657-33020 Stopper, Front Lower Arm Bush[04.1996 -] MCX10 |
48657-33020 |
from US $11.36 |
||
|
48836A
|
48836A
48836-33011
Bracket, Front Stabilizer End, Rh
[08.1995 - 08.1996] MCX10 |
48836-33011 |
— | ||
|
48837A
|
48837A
48837-33011 Bracket, Front Stabilizer End, Lh[08.1995 - 08.1996] MCX10 |
48837-33011 |
US $11.88 |
||
|
9017910087
|
9017910087
90179-10087 Nut (For Front Lower Ball Joint Setting) |
90179-10087 |
from US $1.03 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.77 |
||
