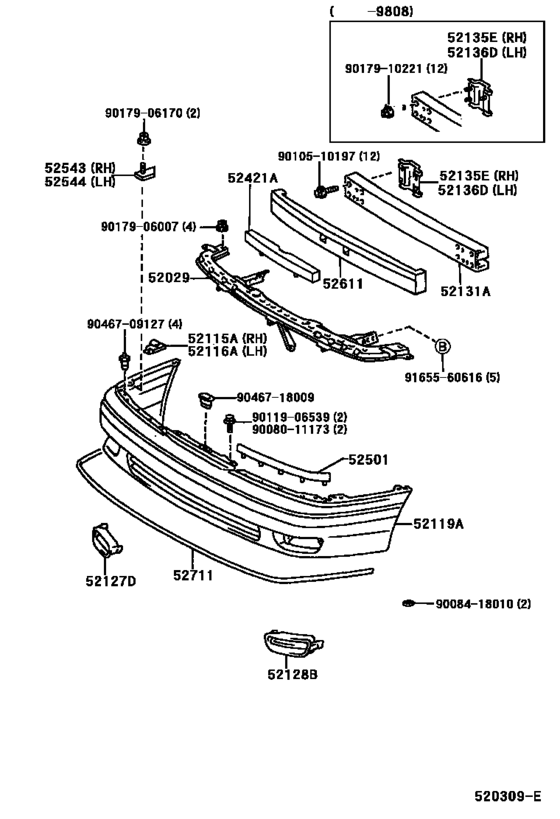

Front Bumper & Bumper Stay ([09.1997 - ] (9709- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-AC010 Reinforcement Sub-Assy, Front Bumper, Upper[08.1995 - 09.1997] MCX10 |
52029-AC010 |
from US $56.75 |
||
|
52029
|
52029
52029-AC020 Reinforcement Sub-Assy, Front Bumper, Upper[09.1997 -] MCX10 |
52029-AC020 |
US $87.36 |
||
|
52115A
|
52115A
52115-AC010 Support, Front Bumper Side, Rh[09.1997 -] MCX10 |
52115-AC010 |
from US $5.91 |
||
|
52116A
|
52116A
52115-AC010 Support, Front Bumper Side, Rh[09.1997 -] MCX10 |
52115-AC010 |
from US $5.91 |
||
|
52119A
|
52119A
52119-AC900 Cover, Front BumperFRONT BUMPER [08.1995 - 09.1997] MCX10 |
52119-AC900 |
US $707.62 |
||
|
52119A
|
52119A
52119-AC903 Cover, Front Bumper[09.1997 - 12.1997] MCX10 |
52119-AC903 |
US $409.14 |
||
| replacements | |||||
|
52119A
|
52119A
52119-AC906 Cover, Front Bumper[09.1997 - 12.1997] MCX10 |
52119-AC906 |
US $709.07 |
||
|
52119A
|
52119A
52711-AC030 Moulding, Front Bumper[09.1997 - 12.1997] MCX10 |
52711-AC030 |
US $84.45 |
||
|
52119A
|
52119A
52119-AC906 Cover, Front Bumper[12.1997 -] MCX10 |
52119-AC906 |
US $709.07 |
||
|
52131A
|
52131A
52131-AC010 Reinforcement, Front BumperFRONT BUMPER [08.1995 - 09.1997] MCX10 |
52131-AC010 |
US $564.93 |
||
|
52131A
|
52131A
52131-AC030 Reinforcement, Front Bumper[09.1997 - 08.1998] MCX10 |
52131-AC030 |
US $336.34 |
||
|
52131A
|
52131A
52131-AC040 Reinforcement, Front Bumper[08.1998 -] MCX10 |
52131-AC040 |
US $334.88 |
||
|
52135E
|
52135E
52135-AC020 Reinforcement, Front Bumper Arm Mounting, Rh[09.1997 - 08.1998] MCX10 |
52135-AC020 |
US $34.65 |
||
|
52135E
|
52135E
52135-AC030 Reinforcement, Front Bumper Arm Mounting, Rh[08.1998 -] MCX10 |
52135-AC030 |
US $34.80 |
||
|
52136D
|
52136D
52135-AC020 Reinforcement, Front Bumper Arm Mounting, Rh[09.1997 - 08.1998] MCX10 |
52135-AC020 |
US $34.65 |
||
|
52136D
|
52136D
52136-AC020 Reinforcement, Front Bumper Arm Mounting, Lh[08.1998 -] MCX10 |
52136-AC020 |
US $34.80 |
||
|
52421A
|
52421A
52421-AC010 Pad, Front Bumper[09.1997 -] MCX10 |
52421-AC010 |
US $23.88 |
||
|
52501
|
52501
52511-AC010 Filler Sub-Assy, Front Bumper[08.1995 - 09.1997] MCX10 |
52511-AC010 |
US $11.07 |
||
|
52501
|
52501
52511-AC020 Filler Sub-Assy, Front Bumper[09.1997 -] MCX10 |
52511-AC020 |
US $11.07 |
||
|
52543
|
52543
52543-AC010 Seal, Front Bumper Side, Rh[08.1995 -] MCX10 |
52543-AC010 |
US $12.23 |
||
|
52544
|
52544
52544-AC010 Seal, Front Bumper Side, Lh[08.1995 -] MCX10 |
52544-AC010 |
US $12.23 |
||
|
52611
|
52611
52611-AC010 Absorber, Front Bumper Energy[08.1995 - 09.1997] MCX10 |
52611-AC010 |
US $142.69 |
||
|
52611
|
52611
52611-AC020 Absorber, Front Bumper Energy[09.1997 -] MCX10 |
52611-AC020 |
US $151.42 |
||
|
52711
|
52711
52711-AC020 Moulding, Front Bumper[09.1997 - 12.1997] MCX10 |
52711-AC020 |
US $84.45 |
||
|
52711
|
52711
52711-AC030 Moulding, Front Bumper[12.1997 -] MCX10 |
52711-AC030 |
US $84.45 |
||
|
9008011173
|
9008011173
90080-11173
New Genuine Part
|
90080-11173 |
— | ||
|
9008418010
|
9008418010
90084-18010 New Genuine Part |
90084-18010 |
US $1.31 |
||
| replacement | |||||
|
9008418010
|
9008418010
90084-18007 New Genuine Part |
90084-18007 |
US $1.60 |
||
|
9010510197
|
9010510197
90105-10197 BOLT |
90105-10197 |
US $0.96 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017906170
|
9017906170
90179-06170
New Genuine Part
|
90179-06170 |
— | ||
|
9017910221
|
9017910221
90179-10221 New Genuine Part |
90179-10221 |
US $0.61 |
||
|
9046709127
|
9046709127
90467-09127 Piece, Rear Bumper |
90467-09127 |
from US $1.74 |
||
|
9046718009
|
9046718009
90467-18009 New Genuine Part |
90467-18009 |
US $4.08 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
