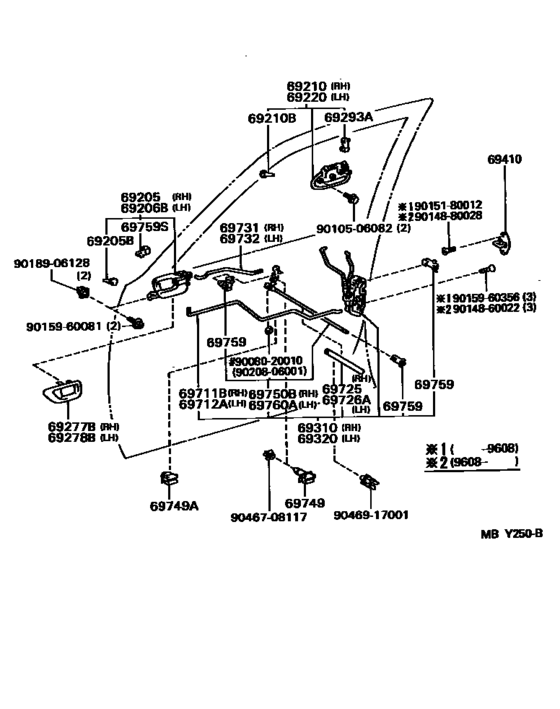

Front Door Lock & Handle ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-07010-C0 Handle Sub-Assy, Front Door Inside, Rh[08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69205-07010-C0 |
US $41.06 |
||
| replacement | |||||
|
69205
|
69205
69205-YF020-C0
Handle Sub-Assy, Front Door Inside, Rh
[08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69205-YF020-C0 |
— | ||
|
69205
|
69205
69205-07010-E0 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [08.1995 - 08.1996] MCX10 QUARTZ,TRIM41 |
69205-07010-E0 |
US $41.06 |
||
|
69205
|
69205
69205-07010-E1 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [08.1995 - 09.1997] MCX10 LT.ADOBE,TRIM42 |
69205-07010-E1 |
US $41.06 |
||
|
69205
|
69205
69205-07010-E2 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [08.1996 - 09.1997] MCX10 ROSE STONE,TRIM43 |
69205-07010-E2 |
US $41.06 |
||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[08.1995 -] MCX10 |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-07010-C0 Handle Sub-Assy, Front Door Inside, Lh[08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69206-07010-C0 |
US $41.06 |
||
| replacement | |||||
|
69206B
|
69206B
69206-YF020-C0 Handle Sub-Assy, Front Door Inside, Lh[08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69206-YF020-C0 |
US $41.06 |
||
|
69206B
|
69206B
69206-07010-E0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.1995 - 08.1996] MCX10 QUARTZ,TRIM41 |
69206-07010-E0 |
US $41.06 |
||
|
69206B
|
69206B
69206-07010-E1 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.1995 - 09.1997] MCX10 LT.ADOBE,TRIM42 |
69206-07010-E1 |
US $41.06 |
||
|
69206B
|
69206B
69206-07010-E2
Handle Sub-Assy, Front Door Inside, Lh
[08.1996 - 09.1997] MCX10 ROSE STONE,TRIM43 |
69206-07010-E2 |
— | ||
|
69210
|
69210
69210-AC010-A0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.1995 - 09.1997] MCX10 SUPER WHITE 2,040 |
69210-AC010-A0 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-A1 Handle Assy, Front Door, Outside Rh[08.1995 - 08.1999] MCX10 SU.WHITE PM,051 |
69210-AC010-A1 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-B2
Handle Assy, Front Door, Outside Rh
[08.1998 - 08.1999] MCX10 SLVER ME.,1C8 |
69210-AC010-B2 |
— | ||
|
69210
|
69210
69210-AC010-C0
Handle Assy, Front Door, Outside Rh
[08.1995 - 08.1999] MCX10 BLACK,202 |
69210-AC010-C0 |
— | ||
|
69210
|
69210
69210-AC010-D0
Handle Assy, Front Door, Outside Rh
[08.1995 - 08.1996] MCX10 MAGENTA MC,3L3 |
69210-AC010-D0 |
— | ||
|
69210
|
69210
69210-AC010-E0
Handle Assy, Front Door, Outside Rh
[08.1995 - 09.1997] MCX10 BEIGE ME,4M9 |
69210-AC010-E0 |
— | ||
|
69210
|
69210
69210-AC010-E1
Handle Assy, Front Door, Outside Rh
[09.1997 - 08.1999] MCX10 LT.BEIGE ME.OP.,4N5 |
69210-AC010-E1 |
— | ||
|
69210
|
69210
69210-AC010-F0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [09.1997 - 08.1998] MCX10 GOLD ME.,578 |
69210-AC010-F0 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-G0
Handle Assy, Front Door, Outside Rh
[08.1995 - 08.1996] MCX10 GR.GREEN ME,6M3 |
69210-AC010-G0 |
— | ||
|
69210
|
69210
69210-AC010-G1
Handle Assy, Front Door, Outside Rh
[09.1997 - 08.1999] MCX10 DK.GREEN M.M.,6P2 |
69210-AC010-G1 |
— | ||
|
69210
|
69210
69210-AC010-H0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.1995 - 09.1997] MCX10 DK.TEAL GREEN MC,751 |
69210-AC010-H0 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-J0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [08.1995 - 08.1996] MCX10 DK.BLUE M.M.,8K0 |
69210-AC010-J0 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-J1 Handle Assy, Front Door, Outside Rh[08.1996 - 09.1997] MCX10 DK.BLUE M.M.,8L3 |
69210-AC010-J1 |
US $90.27 |
||
|
69210
|
69210
69210-AC010-K1
Handle Assy, Front Door, Outside Rh
[08.1995 - 09.1997] MCX10 DARK TAUPE MCOP,927 |
69210-AC010-K1 |
— | ||
|
69210B
|
69210B
90080-54005
Cushion(For Front Door Inside Handle)
[08.1995 -] MCX10 |
90080-54005 |
— | ||
|
69220
|
69220
69220-AC010-A0
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 SUPER WHITE 2,040 |
69220-AC010-A0 |
— | ||
|
69220
|
69220
69220-AC010-A1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.1995 - 08.1996] MCX10 SU.WHITE PM,051 |
69220-AC010-A1 |
US $141.23 |
||
|
69220
|
69220
69220-AC010-C0
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 BLACK,202 |
69220-AC010-C0 |
— | ||
|
69220
|
69220
69220-AC010-D0
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 MAGENTA MC,3L3 |
69220-AC010-D0 |
— | ||
|
69220
|
69220
69220-AC010-E0
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 BEIGE ME,4M9 |
69220-AC010-E0 |
— | ||
|
69220
|
69220
69220-AC010-G0
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 GR.GREEN ME,6M3 |
69220-AC010-G0 |
— | ||
|
69220
|
69220
69220-AC010-H0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.1995 - 08.1996] MCX10 DK.TEAL GREEN MC,751 |
69220-AC010-H0 |
US $141.23 |
||
|
69220
|
69220
69220-AC010-J0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.1995 - 08.1996] MCX10 DK.BLUE M.M.,8K0 |
69220-AC010-J0 |
US $141.23 |
||
|
69220
|
69220
69220-AC010-K1
Handle Assy, Front Door Outside, Lh
[08.1995 - 08.1996] MCX10 DARK TAUPE MCOP,927 |
69220-AC010-K1 |
— | ||
|
69220
|
69220
69220-AC020-A0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [08.1996 - 09.1997] MCX10 SUPER WHITE 2,040 |
69220-AC020-A0 |
US $90.27 |
||
|
69220
|
69220
69220-AC020-A1 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1999] MCX10 SU.WHITE PM,051 |
69220-AC020-A1 |
US $90.27 |
||
|
69220
|
69220
69220-AC020-B2
Handle Assy, Front Door Outside, Lh
[08.1998 - 08.1999] MCX10 SLVER ME.,1C8 |
69220-AC020-B2 |
— | ||
|
69220
|
69220
69220-AC020-C0
Handle Assy, Front Door Outside, Lh
[08.1996 - 08.1999] MCX10 BLACK,202 |
69220-AC020-C0 |
— | ||
|
69220
|
69220
69220-AC020-E0
Handle Assy, Front Door Outside, Lh
[08.1996 - 09.1997] MCX10 BEIGE ME,4M9 |
69220-AC020-E0 |
— | ||
|
69220
|
69220
69220-AC020-E1
Handle Assy, Front Door Outside, Lh
[09.1997 - 08.1999] MCX10 LT.BEIGE ME.OP.,4N5 |
69220-AC020-E1 |
— | ||
|
69220
|
69220
69220-AC020-F0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [09.1997 - 08.1998] MCX10 GOLD ME.,578 |
69220-AC020-F0 |
US $90.27 |
||
|
69220
|
69220
69220-AC020-G1 Handle Assy, Front Door Outside, Lh[09.1997 - 08.1999] MCX10 DK.GREEN M.M.,6P2 |
69220-AC020-G1 |
US $90.27 |
||
|
69220
|
69220
69220-AC020-H0 Handle Assy, Front Door Outside, Lh[08.1996 - 09.1997] MCX10 DK.TEAL GREEN MC,751 |
69220-AC020-H0 |
US $90.27 |
||
|
69220
|
69220
69220-AC020-J1 Handle Assy, Front Door Outside, Lh[08.1996 - 09.1997] MCX10 DK.BLUE M.M.,8L3 |
69220-AC020-J1 |
US $142.69 |
||
|
69220
|
69220
69220-AC020-K1
Handle Assy, Front Door Outside, Lh
[08.1996 - 09.1997] MCX10 DARK TAUPE MCOP,927 |
69220-AC020-K1 |
— | ||
|
69277B
|
69277B
69277-07011
Bezel, Front Door Inside Handle, Rh
[09.1997 -] MCX10..XLS W(9 SPEAKER) |
69277-07011 |
— | ||
|
69277B
|
69277B
69277-07020-C0 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 09.1997] MCX10 W(6 SPEAKER),BLACK,TRIM2# |
69277-07020-C0 |
US $17.47 |
||
|
69277B
|
69277B
69277-07020-E0 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 08.1996] MCX10 W(6 SPEAKER),QUARTZ,TRIM41 |
69277-07020-E0 |
US $17.47 |
||
|
69277B
|
69277B
69277-07020-E1 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 09.1997] MCX10 W(6 SPEAKER),LT.ADOBE,TRIM42 |
69277-07020-E1 |
US $17.47 |
||
|
69277B
|
69277B
69277-07020-E2 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1996 - 09.1997] MCX10 W(6 SPEAKER),ROSE STONE,TRIM43 |
69277-07020-E2 |
US $17.47 |
||
|
69277B
|
69277B
69277-07030-C0 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69277-07030-C0 |
US $17.47 |
||
|
69277B
|
69277B
69277-07030-E0 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 08.1996] MCX10 QUARTZ,TRIM41 |
69277-07030-E0 |
US $17.47 |
||
|
69277B
|
69277B
69277-07030-E1 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1995 - 09.1997] MCX10 LT.ADOBE,TRIM42 |
69277-07030-E1 |
US $19.36 |
||
|
69277B
|
69277B
69277-07030-E2 Bezel, Front Door Inside Handle, RhFRONT DOOR INSIDE HANDLE, RH [08.1996 - 09.1997] MCX10 ROSE STONE,TRIM43 |
69277-07030-E2 |
US $17.47 |
||
|
69277B
|
69277B
69277-07041
Bezel, Front Door Inside Handle, Rh
[09.1997 -] MCX10..XLS |
69277-07041 |
— | ||
|
69278B
|
69278B
69278-07011
Bezel, Front Door Inside Handle, Lh
[09.1997 -] MCX10..XLS W(9 SPEAKER) |
69278-07011 |
— | ||
|
69278B
|
69278B
69278-07020-C0 Bezel, Front Door Inside Handle, LhFRONT DOOR INSIDE HANDLE, LH [08.1995 - 09.1997] MCX10 W(6 SPEAKER),BLACK,TRIM2# |
69278-07020-C0 |
US $17.47 |
||
|
69278B
|
69278B
69278-07020-E0 Bezel, Front Door Inside Handle, LhFRONT DOOR INSIDE HANDLE, LH [08.1995 - 08.1996] MCX10 W(6 SPEAKER),QUARTZ,TRIM41 |
69278-07020-E0 |
US $17.47 |
||
|
69278B
|
69278B
69278-07020-E1
Bezel, Front Door Inside Handle, Lh
[08.1995 - 09.1997] MCX10 W(6 SPEAKER),LT.ADOBE,TRIM42 |
69278-07020-E1 |
— | ||
|
69278B
|
69278B
69278-07020-E2
Bezel, Front Door Inside Handle, Lh
[08.1996 - 09.1997] MCX10 W(6 SPEAKER),ROSE STONE,TRIM43 |
69278-07020-E2 |
— | ||
|
69278B
|
69278B
69278-07030-C0 Bezel, Front Door Inside Handle, LhFRONT DOOR INSIDE HANDLE, LH [08.1995 - 09.1997] MCX10 BLACK,TRIM2# |
69278-07030-C0 |
US $17.47 |
||
|
69278B
|
69278B
69278-07030-E0
Bezel, Front Door Inside Handle, Lh
[08.1995 - 08.1996] MCX10 QUARTZ,TRIM41 |
69278-07030-E0 |
— | ||
|
69278B
|
69278B
69278-07030-E1
Bezel, Front Door Inside Handle, Lh
[08.1995 - 09.1997] MCX10 LT.ADOBE,TRIM42 |
69278-07030-E1 |
— | ||
|
69278B
|
69278B
69278-07030-E2 Bezel, Front Door Inside Handle, LhFRONT DOOR INSIDE HANDLE, LH [08.1996 - 09.1997] MCX10 ROSE STONE,TRIM43 |
69278-07030-E2 |
US $17.47 |
||
|
69278B
|
69278B
69278-07041 Bezel, Front Door Inside Handle, Lh[09.1997 -] MCX10..XLS |
69278-07041 |
US $17.47 |
||
|
69293A
|
69293A
69293-AC010 Snap, Front Door Outside Handle[08.1995 -] MCX10 NATURAL |
69293-AC010 |
US $2.04 |
||
|
69293A
|
69293A
69293-AC020
Snap, Front Door Outside Handle
[08.1995 -] MCX10 YELLOW |
69293-AC020 |
— | ||
|
69310
|
69310
69030-AC010 Lock Assy, Front Door, RhFRONT DOOR, RH [08.1995 -] MCX10 |
69030-AC010 |
US $224.22 |
||
|
69320
|
69320
69040-AC010
Lock Assy, Front Door, Lh
[08.1995 -] MCX10 |
69040-AC010 |
— | ||
|
69410
|
69410
69410-AA010 Plate Assy, Front Door Lock Striker[08.1995 - 08.1996] MCX10 |
69410-AA010 |
US $16.45 |
||
|
69410
|
69410
69410-AC010 Plate Assy, Front Door Lock Striker[08.1996 -] MCX10 |
69410-AC010 |
US $16.31 |
||
|
69711B
|
69711B
69711-AC010 Link, Front Door Lock Remote Control, Rh[08.1995 -] MCX10 |
69711-AC010 |
US $9.46 |
||
| replacement | |||||
|
69711B
|
69711B
69711-AC011
Link, Front Door Lock Remote Control, Rh
[08.1995 -] MCX10 |
69711-AC011 |
— | ||
|
69712A
|
69712A
69712-AC010 Link, Front Door Lock Remote Control, Lh[08.1995 -] MCX10 |
69712-AC010 |
US $9.46 |
||
| replacement | |||||
|
69712A
|
69712A
69712-AC011
Link, Front Door Lock Remote Control, Lh
[08.1995 -] MCX10 |
69712-AC011 |
— | ||
|
69725
|
69725
69725-AC020
Protector, Front Door Inside Locking Link, Rh
[08.1995 - 09.1997] MCX10 |
69725-AC020 |
— | ||
|
69726A
|
69726A
69725-AC020
Protector, Front Door Inside Locking Link, Rh
[08.1995 - 09.1997] MCX10 |
69725-AC020 |
— | ||
|
69731
|
69731
69731-AC010 Link, Front Door Inside Locking, No.1 Rh[08.1995 -] MCX10 |
69731-AC010 |
US $9.46 |
||
|
69732
|
69732
69732-AC010 Link, Front Door Inside Locking, No.1 Lh[08.1995 -] MCX10 |
69732-AC010 |
US $9.46 |
||
|
69749
|
69749
69749-32030 Clamp, Front Door Lock Link[08.1995 -] MCX10 |
69749-32030 |
US $1.60 |
||
|
69749A
|
69749A
69749-50010 Clamp, Front Door Lock Link[08.1995 -] MCX10 |
69749-50010 |
US $2.10 |
||
|
69750B
|
69750B
69750-AC010 Link Assy, Front Door Inside Locking, Rh[08.1995 -] MCX10 |
69750-AC010 |
US $9.46 |
||
|
69759
|
69759
69759-AA010 Snap, Door Lock Control Link, No.1[08.1995 -] MCX10 GREEN |
69759-AA010 |
US $1.60 |
||
|
69759
|
69759
69759-AA020 Snap, Door Lock Control Link, No.1[08.1995 -] MCX10 GRAY |
69759-AA020 |
US $1.60 |
||
|
69759
|
69759
69759-AA030 Snap, Door Lock Control Link, No.1[08.1995 -] MCX10 YELLOW |
69759-AA030 |
US $1.60 |
||
|
69759
|
69759
69759-AA040 Snap, Door Lock Control Link, No.1[08.1995 -] MCX10 BROWN |
69759-AA040 |
US $1.60 |
||
|
69759
|
69759
69759-AC010 Snap, Door Lock Control Link, No.1[08.1995 -] MCX10 NATURAL |
69759-AC010 |
US $2.04 |
||
|
69759S
|
69759S
69759-03020 Snap, Front Door Inside Handle[08.1995 -] MCX10 YELLOW |
69759-03020 |
US $3.93 |
||
|
69759S
|
69759S
69759-06030 Snap, Front Door Inside Handle[08.1995 -] MCX10 NATURAL |
69759-06030 |
US $3.79 |
||
| replacement | |||||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[08.1995 -] MCX10 NATURAL |
69759-24070 |
US $2.20 |
||
|
69760A
|
69760A
69760-AC010 Link Assy, Front Door Inside Locking, Lh[08.1995 -] MCX10 |
69760-AC010 |
US $9.46 |
||
|
9008020010
|
9008020010
90080-20010
New Genuine Part
|
90080-20010 |
— | ||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $0.61 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880028
|
9014880028
90148-80028 SCREW HEX LOBULAR |
90148-80028 |
from US $0.65 |
||
|
9015180012
|
9015180012
90151-80012 New Genuine Part |
90151-80012 |
US $0.96 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $0.83 |
||
|
9015960356
|
9015960356
90159-60356 New Genuine Part |
90159-60356 |
US $1.51 |
||
|
9018906128
|
9018906128
90189-06128 GROMMET SCREW |
90189-06128 |
US $0.96 |
||
|
9020806001
|
9020806001
90208-06001 New Genuine Part |
90208-06001 |
US $1.02 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $0.83 |
||
|
9046917001
|
9046917001
90469-17001 New Genuine Part |
90469-17001 |
US $3.93 |
||
