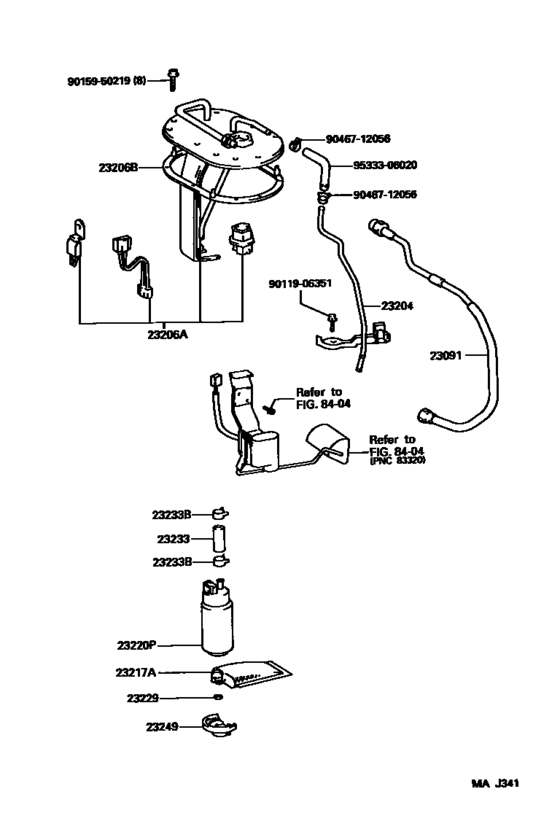

Fuel Injection System ([08.1995 - 08.1996] (9508-9608)) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-62010
Tube Sub-Assy, Fuel Pump
[08.1995 - 08.1996] 1MZFE..MCX10 |
23091-62010 |
— | ||
|
23091
|
23091
77209-41010 Tube Sub-Assy, Fuel Pump[08.1996 - 09.1997] 1MZFE..MCX10 |
77209-41010 |
US $55.62 |
||
|
23204
|
23204
23204-62010 Tube Sub-Assy, Fuel Pump Return[08.1995 - 08.1996] 1MZFE..MCX10 |
23204-62010 |
US $35.53 |
||
|
23206A
|
23206A
23206-62010 Bracket, Fuel Pump[08.1995 - 08.1996] 1MZFE..MCX10 |
23206-62010 |
US $106.29 |
||
|
23206A
|
23206A
77024-33010 Plate Sub-Assy, Fuel Suction[09.1997 -] 1MZFE..MCX10 |
77024-33010 |
from US $63.69 |
||
|
23206A
|
23206A
77203-41020 Bracket, Fuel PumpFUEL PUMP [08.1996 - 09.1997] 1MZFE..MCX10 |
77203-41020 |
US $94.64 |
||
|
23206B
|
23206B
77169-33010 Gasket, Fuel Pump Bracket[09.1997 -] 1MZFE..MCX10 |
77169-33010 |
US $10.08 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[08.1995 - 09.1997] 1MZFE..MCX10 |
77169-60010 |
from US $10.41 |
||
|
23217A
|
23217A
23217-62020 Filter, Fuel Pump[08.1996 - 09.1997] 1MZFE..MCX10 |
23217-62020 |
US $9.46 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[09.1997 -] 1MZFE..MCX10 |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23221-15040 Pump Assy, Fuel[01.1998 -] 1MZFE..MCX10 |
23221-15040 |
US $525.91 |
||
|
23220P
|
23220P
23221-16490
Pump Assy, Fuel
[08.1996 - 01.1998] 1MZFE..MCX10 |
23221-16490 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[08.1996 - 01.1998] 1MZFE..MCX10 |
23221-28280 |
from US $421.47 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1996 -] 1MZFE..MCX10 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1996 -] 1MZFE..MCX10 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[08.1995 - 08.1996] 1MZFE..MCX10 |
23239-11010 |
US $10.88 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[08.1996 - 09.1997] 1MZFE..MCX10 |
23239-16010 |
from US $1.87 |
||
|
23233
|
23233
23239-74010
Hose, Fuel Pump
[09.1997 -] 1MZFE..MCX10 |
23239-74010 |
— | ||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[08.1995 - 08.1996] 1MZFE..MCX10 |
90467-12067 |
from US $1.27 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1996 - 09.1997] 1MZFE..MCX10 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[08.1996 - 09.1997] 1MZFE..MCX10 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1996 -] 1MZFE..MCX10 |
23249-74610 |
from US $8.56 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
