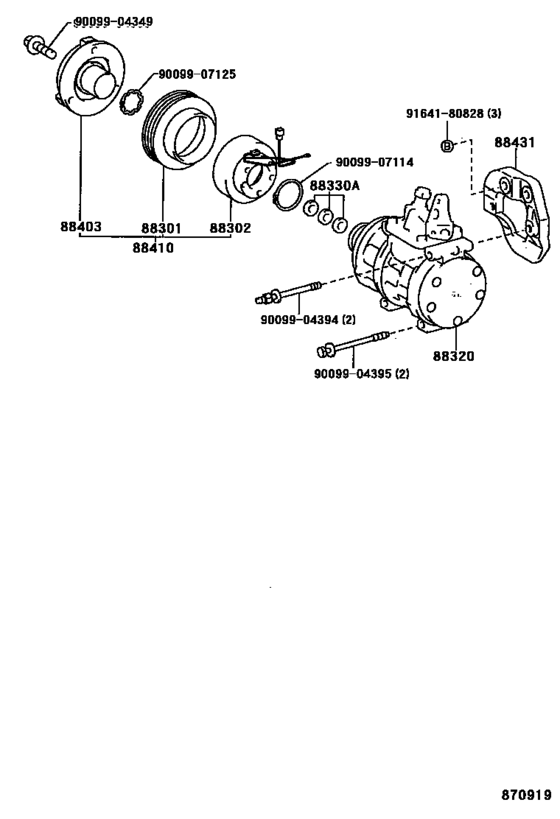

Heating & Air Conditioning - Compressor ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-33010
Rotor Sub-Assy, Magnet Clutch
[08.1995 -] MCX10 |
88412-33010 |
— | ||
|
88302
|
88302
88411-07020 Stator Sub-Assy, Magnet ClutchMAGNET CLUTCH [08.1995 -] MCX10 |
88411-07020 |
US $110.66 |
||
|
88320
|
88320
88320-07010
Compressor Assy, Cooler
[08.1995 -] MCX10 |
88320-07010 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1995 - 09.1997] MCX10 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1995 -] MCX10 |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-07010 Clutch Assy, MagnetMAGNET [08.1995 -] MCX10 |
88410-07010 |
US $583.86 |
||
|
88431
|
88431
88431-07010
Bracket, Compressor Mounting, No.1
[08.1995 -] MCX10 |
88431-07010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904394
|
9009904394
90099-04394
Bolt
|
90099-04394 |
— | ||
|
9009904395
|
9009904395
90099-04395 BOLT W-WASHER |
90099-04395 |
US $2.62 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.05 |
||
|
9164180828
|
9164180828
91641-80828 New Genuine Part |
91641-80828 |
US $1.14 |
