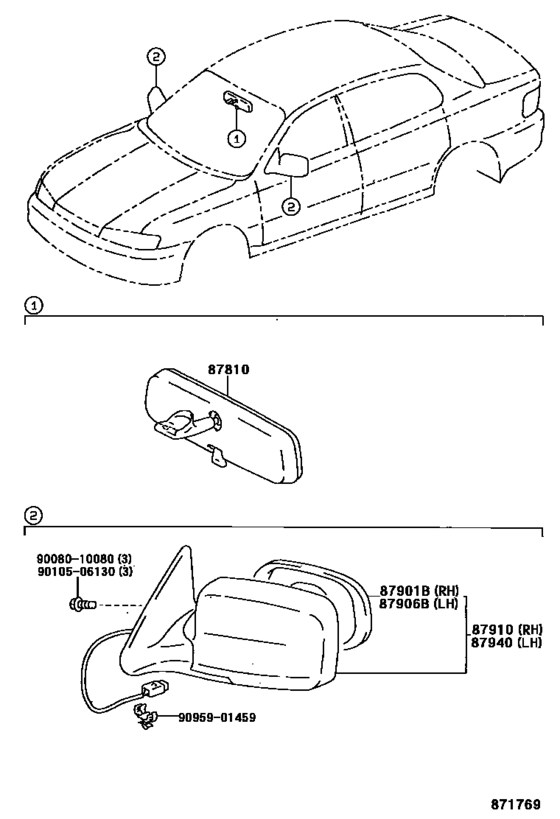

Mirror ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-AC020 Mirror Assy, Inner Rear ViewINNER REAR VIEW [08.1995 -] MCX10 |
87810-AC020 |
US $133.95 |
||
|
87901B
|
87901B
87931-33070
Mirror Sub-Assy, Outer Rear View, Rh
[08.1995 - 08.1996] MCX10 |
87931-33070 |
— | ||
|
87901B
|
87901B
87931-41030 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1996 -] MCX10 |
87931-41030 |
US $29.12 |
||
|
87906B
|
87906B
87961-33070
Mirror Sub-Assy, Outer Rear View, Lh
[08.1995 - 08.1996] MCX10 |
87961-33070 |
— | ||
|
87906B
|
87906B
87961-41030 Mirror Sub-Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1996 -] MCX10 |
87961-41030 |
US $29.12 |
||
|
87910
|
87910
87910-41010-A0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 SUPER WHITE2,040 |
87910-41010-A0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-A1 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 SU WHITE PM,051 |
87910-41010-A1 |
US $336.34 |
||
|
87910
|
87910
87910-41010-C0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 BLACK,202 |
87910-41010-C0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-D0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 MAZENTA MC,3L3 |
87910-41010-D0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-E0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 BEIGE ME,4M9 |
87910-41010-E0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-G0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 GR. GREEN ME,6M3 |
87910-41010-G0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-H0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 DK. TEAL GREEN MC,751 |
87910-41010-H0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-J0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 DK. BLUE MM,8K0 |
87910-41010-J0 |
US $336.34 |
||
|
87910
|
87910
87910-41010-K0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 - 08.1996] MCX10 DARK TAUPE MCOP,927 |
87910-41010-K0 |
US $336.34 |
||
|
87910
|
87910
87910-41030-A0
Mirror Assy, Outer Rear View, Rh
[08.1996 - 09.1997] MCX10 SUPER WHITE2,040 |
87910-41030-A0 |
— | ||
|
87910
|
87910
87910-41030-A1
Mirror Assy, Outer Rear View, Rh
[08.1996 -] MCX10 SU.WHITE PM,051 |
87910-41030-A1 |
— | ||
|
87910
|
87910
87910-41030-B1
Mirror Assy, Outer Rear View, Rh
[08.1998 -] MCX10 SLVER ME.,1C8 |
87910-41030-B1 |
— | ||
|
87910
|
87910
87910-41030-C0
Mirror Assy, Outer Rear View, Rh
[08.1996 -] MCX10 BLACK,202 |
87910-41030-C0 |
— | ||
|
87910
|
87910
87910-41030-E0
Mirror Assy, Outer Rear View, Rh
[08.1996 - 09.1997] MCX10 BEIGE ME,4M9 |
87910-41030-E0 |
— | ||
|
87910
|
87910
87910-41030-E1
Mirror Assy, Outer Rear View, Rh
[09.1997 -] MCX10 LT.BEIGE ME.OP,4N5 |
87910-41030-E1 |
— | ||
|
87910
|
87910
87910-41030-F0
Mirror Assy, Outer Rear View, Rh
[09.1997 - 08.1998] MCX10 GOLD ME.,578 |
87910-41030-F0 |
— | ||
|
87910
|
87910
87910-41030-G1
Mirror Assy, Outer Rear View, Rh
[09.1997 -] MCX10 DK.GREEN M.M.,6P2 |
87910-41030-G1 |
— | ||
|
87910
|
87910
87910-41030-H0
Mirror Assy, Outer Rear View, Rh
[08.1996 - 09.1997] MCX10 DK.TEAL GREEN MC.,751 |
87910-41030-H0 |
— | ||
|
87910
|
87910
87910-41030-J0
Mirror Assy, Outer Rear View, Rh
[08.1996 - 09.1997] MCX10 DK.BLUE M.M,8L3 |
87910-41030-J0 |
— | ||
|
87910
|
87910
87910-41030-K0
Mirror Assy, Outer Rear View, Rh
[08.1996 - 09.1997] MCX10 DK.TAUPE ME.OP,927 |
87910-41030-K0 |
— | ||
|
87940
|
87940
87940-41010-A0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 SUPER WHITE2,040 |
87940-41010-A0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-A1 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 SU WHITE PM,051 |
87940-41010-A1 |
US $336.34 |
||
|
87940
|
87940
87940-41010-C0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 BLACK,202 |
87940-41010-C0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-D0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 MAZENTA MC,3L3 |
87940-41010-D0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-E0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 BEIGE ME,4M9 |
87940-41010-E0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-G0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 GR. GREEN ME,6M3 |
87940-41010-G0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-H0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 DK. TEAL GREEN MC,751 |
87940-41010-H0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-J0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 DK. BLUE MM,8K0 |
87940-41010-J0 |
US $336.34 |
||
|
87940
|
87940
87940-41010-K0 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1995 - 08.1996] MCX10 DARK TAUPE MCOP,927 |
87940-41010-K0 |
US $336.34 |
||
|
87940
|
87940
87940-41030-A0
Mirror Assy, Outer Rear View, Lh
[08.1996 - 09.1997] MCX10 SUPER WHITE2,040 |
87940-41030-A0 |
— | ||
|
87940
|
87940
87940-41030-A1
Mirror Assy, Outer Rear View, Lh
[08.1996 -] MCX10 SU.WHITE PM,051 |
87940-41030-A1 |
— | ||
|
87940
|
87940
87940-41030-B1
Mirror Assy, Outer Rear View, Lh
[08.1998 -] MCX10 SLVER ME.,1C8 |
87940-41030-B1 |
— | ||
|
87940
|
87940
87940-41030-C0
Mirror Assy, Outer Rear View, Lh
[08.1996 -] MCX10 BLACK,202 |
87940-41030-C0 |
— | ||
|
87940
|
87940
87940-41030-E0
Mirror Assy, Outer Rear View, Lh
[08.1996 - 09.1997] MCX10 BEIGE ME,4M9 |
87940-41030-E0 |
— | ||
|
87940
|
87940
87940-41030-E1
Mirror Assy, Outer Rear View, Lh
[09.1997 -] MCX10 LT.BEIGE ME OP,4N5 |
87940-41030-E1 |
— | ||
|
87940
|
87940
87940-41030-F0
Mirror Assy, Outer Rear View, Lh
[09.1997 - 08.1998] MCX10 GOLD ME.,578 |
87940-41030-F0 |
— | ||
|
87940
|
87940
87940-41030-G1
Mirror Assy, Outer Rear View, Lh
[09.1997 -] MCX10 DK.GREEN M.M.,6P2 |
87940-41030-G1 |
— | ||
|
87940
|
87940
87940-41030-H0
Mirror Assy, Outer Rear View, Lh
[08.1996 - 09.1997] MCX10 DK.TEAL GREEN MC,751 |
87940-41030-H0 |
— | ||
|
87940
|
87940
87940-41030-J0
Mirror Assy, Outer Rear View, Lh
[08.1996 - 09.1997] MCX10 DK.BLUE M.M,8L3 |
87940-41030-J0 |
— | ||
|
87940
|
87940
87940-41030-K0
Mirror Assy, Outer Rear View, Lh
[08.1996 - 09.1997] MCX10 DK.TAUPE ME.OP.,927 |
87940-41030-K0 |
— | ||
|
9008010080
|
9008010080
90080-10080
New Genuine Part
|
90080-10080 |
— | ||
| replacement | |||||
|
9008010080
|
9008010080
90105-06130 BOLT WASHER BASED |
90105-06130 |
US $0.87 |
||
|
9010506130
|
9010506130
90105-06130 BOLT WASHER BASED |
90105-06130 |
US $0.87 |
||
|
9095901459
|
9095901459
90959-01459 New Genuine Part |
90959-01459 |
US $3.06 |
||
