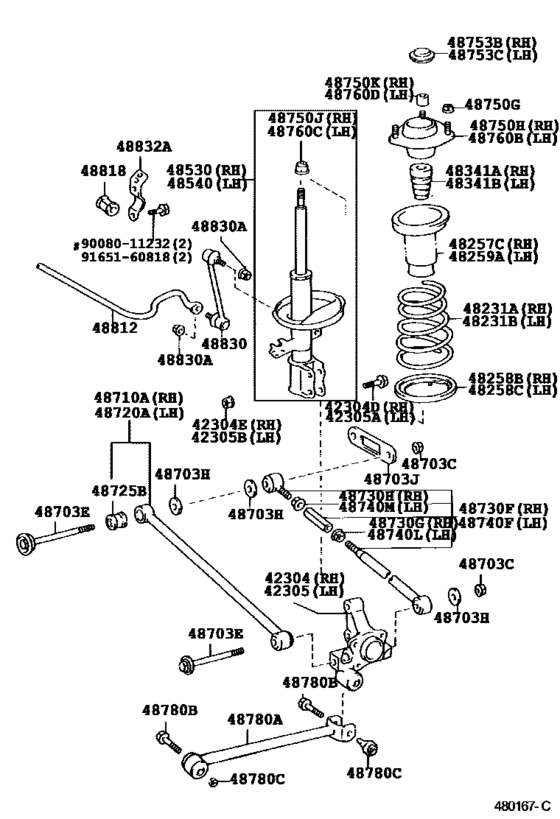

Rear Spring & Shock Absorber ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-06010
Carrier Sub-Assy, Rear Axle, Rh
[08.1995 -] MCX10 |
42304-06010 |
— | ||
|
42304
|
42304
42304-06020
Carrier Sub-Assy, Rear Axle, Rh
[08.1995 -] MCX10 W(*66) |
42304-06020 |
— | ||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[08.1995 -] MCX10 |
90105-15001 |
US $6.56 |
||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[08.1995 -] MCX10 |
90179-15001 |
from US $3.14 |
||
|
42305
|
42305
42305-06010 Carrier Sub-Assy, Rear Axle, Lh[08.1995 -] MCX10 |
42305-06010 |
US $183.46 |
||
|
42305
|
42305
42305-06020
Carrier Sub-Assy, Rear Axle, Lh
[08.1995 -] MCX10 W(*66) |
42305-06020 |
— | ||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[08.1995 -] MCX10 |
90105-15001 |
US $6.56 |
||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[08.1995 -] MCX10 |
90179-15001 |
from US $3.14 |
||
|
48231A
|
48231A
48231-AC030 Spring, Coil, Rear RhCOIL, REAR RH [08.1995 -] MCX10 |
48231-AC030 |
US $151.42 |
||
|
48231B
|
48231B
48231-AC030 Spring, Coil, Rear RhCOIL, REAR RH [08.1995 -] MCX10 |
48231-AC030 |
US $151.42 |
||
|
48257C
|
48257C
48257-06010
Insulator, Rear Coil Spring, Upper Rh
[08.1995 - 08.1996] MCX10 |
48257-06010 |
— | ||
|
48258B
|
48258B
48258-06010
Insulator, Rear Coil Spring, Lower Rh
[08.1995 -] MCX10 |
48258-06010 |
— | ||
|
48258C
|
48258C
48258-06010
Insulator, Rear Coil Spring, Lower Rh
[08.1995 -] MCX10 |
48258-06010 |
— | ||
|
48259A
|
48259A
48259-06010
Insulator, Rear Coil Spring, Upper Lh
[08.1995 - 08.1996] MCX10 |
48259-06010 |
— | ||
|
48341A
|
48341A
48341-06011
Bumper, Rear Spring, No.1 Rh
[08.1995 - 08.1997] MCX10 |
48341-06011 |
— | ||
| replacement | |||||
|
48341A
|
48341A
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1995 - 08.1997] MCX10 |
48341-AA010 |
US $12.23 |
||
|
48341A
|
48341A
48341-06012
Bumper, Rear Spring, No.1 Rh
[08.1997 -] MCX10 |
48341-06012 |
— | ||
| replacement | |||||
|
48341A
|
48341A
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1997 -] MCX10 |
48341-AA010 |
US $12.23 |
||
|
48341B
|
48341B
48341-06011
Bumper, Rear Spring, No.1 Rh
[08.1995 - 08.1997] MCX10 |
48341-06011 |
— | ||
| replacement | |||||
|
48341B
|
48341B
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1995 - 08.1997] MCX10 |
48341-AA010 |
US $12.23 |
||
|
48341B
|
48341B
48341-06012
Bumper, Rear Spring, No.1 Rh
[08.1997 -] MCX10 |
48341-06012 |
— | ||
| replacement | |||||
|
48341B
|
48341B
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1997 -] MCX10 |
48341-AA010 |
US $12.23 |
||
|
48530
|
48530
48530-09120 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [08.1995 - 08.1996] MCX10 |
48530-09120 |
US $356.72 |
||
|
48530
|
48530
48530-09180 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [08.1996 -] MCX10 |
48530-09180 |
from US $258.08 |
||
|
48540
|
48540
48540-09110 Absorber Assy, Shock, Rear LhSHOCK, REAR LH [08.1995 - 08.1996] MCX10 |
48540-09110 |
US $356.72 |
||
|
48540
|
48540
48540-09160 Absorber Assy, Shock, Rear LhSHOCK, REAR LH [08.1996 -] MCX10 |
48540-09160 |
from US $258.08 |
||
|
48703C
|
48703C
90179-14019 Nut[08.1995 -] MCX10 |
90179-14019 |
from US $1.40 |
||
|
48703E
|
48703E
90901-09001 Bolt(For Rear Suspension Arm)[08.1995 -] MCX10 *14-1.50PX260-26,BODY SIDE |
90901-09001 |
from US $20.62 |
||
|
48703E
|
48703E
90901-19001 Bolt(For Rear Suspension Arm)[08.1995 -] MCX10 *14-1.50PX260-26,CARRIRE SIDE |
90901-19001 |
from US $17.82 |
||
|
48703H
|
48703H
90201-14017 Washer(For Rear Suspension Arm)[08.1995 -] MCX10 |
90201-14017 |
US $4.89 |
||
|
48703J
|
48703J
48715-06010
Washer, No.2(For Rear Suspension Arm)
[08.1996 -] MCX10 |
48715-06010 |
— | ||
|
48703J
|
48703J
48715-07010 Washer, No.2(For Rear Suspension Arm)[08.1995 - 08.1996] MCX10 |
48715-07010 |
US $14.41 |
||
|
48710A
|
48710A
48710-41010 Arm Assy, Rear Suspension, No.1 Rh[08.1995 - 08.1996] MCX10 |
48710-41010 |
US $94.64 |
||
|
48710A
|
48710A
48710-AA010
Arm Assy, Rear Suspension, No.1 Rh
[08.1996 -] MCX10 |
48710-AA010 |
— | ||
|
48720A
|
48720A
48710-41010 Arm Assy, Rear Suspension, No.1 Rh[08.1995 - 08.1996] MCX10 |
48710-41010 |
US $94.64 |
||
|
48720A
|
48720A
48710-AA010
Arm Assy, Rear Suspension, No.1 Rh
[08.1996 -] MCX10 |
48710-AA010 |
— | ||
|
48725B
|
48725B
48725-32150 Bush, Rear Suspension Arm, No.1[08.1995 - 08.1996] MCX10 |
48725-32150 |
from US $16.89 |
||
|
48730F
|
48730F
48730-41010 Arm Assy, Rear Suspension, No.2 Rh[08.1995 - 08.1996] MCX10 |
48730-41010 |
US $96.10 |
||
|
48730F
|
48730F
48730-AA020
Arm Assy, Rear Suspension, No.2 Rh
[08.1996 -] MCX10 |
48730-AA020 |
— | ||
|
48730G
|
48730G
90179-18016 Nut, No.1(For Rear Suspension Arm No.2 Rh)[08.1995 - 08.1996] MCX10 |
90179-18016 |
US $3.32 |
||
|
48730H
|
48730H
90179-18017 Nut, No.1(For Rear Suspension Arm No.2 Rh)[08.1995 - 08.1996] MCX10 |
90179-18017 |
US $3.32 |
||
|
48740F
|
48740F
48740-41010 Arm Assy, Rear Suspension, No.2 Lh[08.1995 - 08.1996] MCX10 |
48740-41010 |
from US $96.10 |
||
|
48740F
|
48740F
48740-AA020 Arm Assy, Rear Suspension, No.2 Lh[08.1996 -] MCX10 |
48740-AA020 |
US $118.81 |
||
|
48740L
|
48740L
90179-18017 Nut, No.1(For Rear Suspension Arm No.2 Rh)[08.1995 - 08.1996] MCX10 |
90179-18017 |
US $3.32 |
||
|
48740M
|
48740M
90179-16022 Nut, No.1(For Rear Suspension Arm No.2)[08.1995 - 08.1996] MCX10 |
90179-16022 |
US $3.20 |
||
|
48750G
|
48750G
90179-08122 Nut(For Rear Suspension Support)[08.1995 -] MCX10 |
90179-08122 |
US $7.04 |
||
|
48750H
|
48750H
48750-06010
Support Assy, Rear Suspension, Rh
[08.1995 - 08.1996] MCX10 |
48750-06010 |
— | ||
|
48750H
|
48750H
48750-06030
Support Assy, Rear Suspension, Rh
[08.1996 -] MCX10 |
48750-06030 |
— | ||
| replacement | |||||
|
48750H
|
48750H
48750-06050 Support Assy, Rear Suspension, Rh[08.1996 -] MCX10 |
48750-06050 |
from US $92.60 |
||
|
48750J
|
48750J
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[08.1996 -] MCX10 |
90177-14001 |
from US $1.52 |
||
|
48750J
|
48750J
94182-11400 Nut(For Idler Arm Support)[08.1995 - 08.1996] MCX10 |
94182-11400 |
US $4.96 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1996 -] MCX10 |
90387-15027 |
from US $3.57 |
||
|
48753B
|
48753B
48753-06011
Cover, Rear Suspension Supoport, No.1 Rh
[08.1996 -] MCX10 |
48753-06011 |
— | ||
|
48753B
|
48753B
48753-32041
Cover, Rear Suspension Supoport, No.1 Rh
[08.1995 - 08.1996] MCX10 |
48753-32041 |
— | ||
|
48753C
|
48753C
48753-06011
Cover, Rear Suspension Supoport, No.1 Rh
[08.1996 -] MCX10 |
48753-06011 |
— | ||
|
48753C
|
48753C
48753-32041
Cover, Rear Suspension Supoport, No.1 Rh
[08.1995 - 08.1996] MCX10 |
48753-32041 |
— | ||
|
48760B
|
48760B
48760-06010
Support Assy Rear Suspension, Lh
[08.1995 - 08.1996] MCX10 |
48760-06010 |
— | ||
|
48760B
|
48760B
48760-06030
Support Assy Rear Suspension, Lh
[08.1996 -] MCX10 |
48760-06030 |
— | ||
| replacement | |||||
|
48760B
|
48760B
48760-06050 Support Assy Rear Suspension, Lh[08.1996 -] MCX10 |
48760-06050 |
from US $92.60 |
||
|
48760C
|
48760C
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[08.1996 -] MCX10 |
90177-14001 |
from US $1.52 |
||
|
48760C
|
48760C
94182-11400 Nut(For Idler Arm Support)[08.1995 - 08.1996] MCX10 |
94182-11400 |
US $4.96 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1996 -] MCX10 |
90387-15027 |
from US $3.57 |
||
|
48780A
|
48780A
48780-33010 Rod Assy, Strut, Rear[08.1995 -] MCX10 |
48780-33010 |
from US $89.11 |
||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[02.1997 -] MCX10 (L) |
90080-11133 |
US $10.95 |
||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[08.1995 - 02.1997] MCX10 |
90119-12131 |
from US $3.57 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[08.1995 - 02.1997] MCX10 |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90179-12062 Nut(For Rear Suspension Arm)[08.1995 - 08.1996] MCX10 CARRIER SIDE |
90179-12062 |
from US $2.54 |
||
|
48780C
|
48780C
90179-12063 Nut(For Rear Suspension Arm)[08.1995 -] MCX10 BODY SIDE |
90179-12063 |
from US $1.95 |
||
|
48780C
|
48780C
90179-12091 Nut(For Front Suspension Lower Arm)[08.1996 -] MCX10 CARRIER SIDE |
90179-12091 |
from US $1.17 |
||
|
48812
|
48812
48812-AA010
Bar, Stabilizer, Rear
[08.1996 -] MCX10 |
48812-AA010 |
— | ||
|
48812
|
48812
48812-AC010 Bar, Stabilizer, Rear[08.1995 - 08.1996] MCX10 |
48812-AC010 |
US $126.67 |
||
|
48818
|
48818
48818-06041
Bush, Stabilizer, Rear
[08.1995 - 08.1996] MCX10 |
48818-06041 |
— | ||
|
48818
|
48818
48818-06090
Bush, Stabilizer, Rear
[08.1996 -] MCX10 |
48818-06090 |
— | ||
|
48830
|
48830
48830-06020 Link Assy, Rear Stabilizer[08.1996 -] MCX10 |
48830-06020 |
US $66.10 |
||
|
48830
|
48830
48830-33010 Link Assy, Rear Stabilizer[08.1995 - 08.1996] MCX10 |
48830-33010 |
from US $61.02 |
||
|
48830A
|
48830A
90179-10054 Nut, No.1 (For Center Support Bearing)[08.1995 - 08.1996] MCX10 |
90179-10054 |
from US $0.37 |
||
|
48830A
|
48830A
90179-10183 Nut(For Front Stabilizer Link)[08.1996 -] MCX10 |
90179-10183 |
from US $0.88 |
||
|
48832A
|
48832A
48832-06010
Bracket, Rear Stabilizer Bar, No.1
[08.1995 - 08.1996] MCX10 |
48832-06010 |
— | ||
|
48832A
|
48832A
48832-AA010 Bracket, Rear Stabilizer Bar, No.1[08.1996 -] MCX10 |
48832-AA010 |
US $8.30 |
||
|
9008011232
|
9008011232
90080-11232
New Genuine Part
|
90080-11232 |
— | ||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
