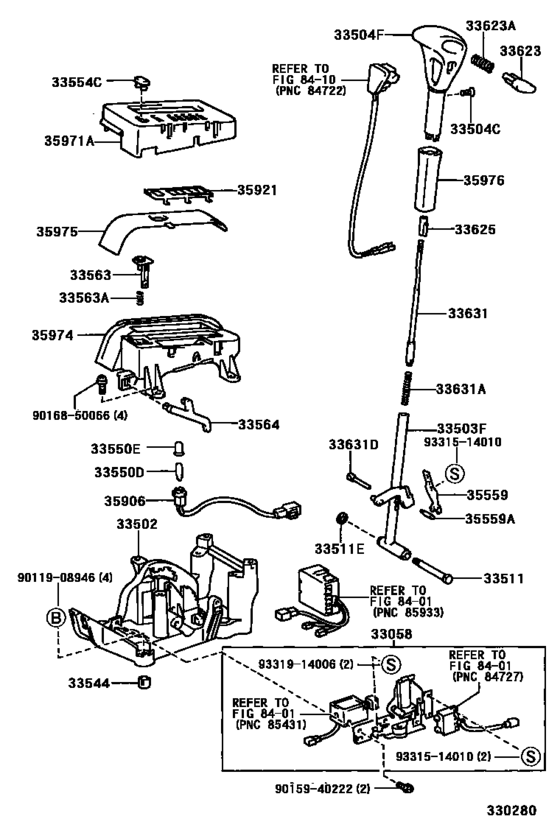

Shift Lever & Retainer ([08.1995 - ] (9508- )4FC) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-07010 Bracket Sub-Assy, Shift Lock SolenoidSHIFT LOCK SOLENOID [08.1995 -] MCX10..4FC |
33058-07010 |
US $72.80 |
||
|
33502
|
33502
33521-07010 Plate Sub-Assy, Shift LeverSHIFT LEVER [08.1995 -] MCX10..4FC |
33521-07010 |
US $62.03 |
||
|
33503F
|
33503F
33503-07010 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [08.1995 -] MCX10..4FC |
33503-07010 |
US $78.62 |
||
|
33504C
|
33504C
90159-40244
Screw (For Shift Lever Knob Setting)
[08.1995 -] MCX10..4FC |
90159-40244 |
— | ||
|
33504F
|
33504F
33542-07020-C2 Knob Sub-Assy, Shift Lever[08.1995 - 12.1996] MCX10..4FC BLACK,TRIM2# |
33542-07020-C2 |
US $72.65 |
||
| replacement | |||||
|
33504F
|
33504F
33542-07021-C2 Knob Sub-Assy, Shift Lever[08.1995 - 12.1996] MCX10..4FC BLACK,TRIM2# |
33542-07021-C2 |
US $72.65 |
||
|
33504F
|
33504F
33542-07020-E2 Knob Sub-Assy, Shift Lever[08.1995 - 08.1996] MCX10..4FC DK.ROSE,TRIM41 |
33542-07020-E2 |
US $72.65 |
||
| replacement | |||||
|
33504F
|
33504F
33542-07021-E2 Knob Sub-Assy, Shift Lever[08.1995 - 08.1996] MCX10..4FC DK.ROSE,TRIM41 |
33542-07021-E2 |
US $72.65 |
||
|
33504F
|
33504F
33542-07020-E3 Knob Sub-Assy, Shift Lever[08.1995 - 12.1996] MCX10..4FC DK.ADOBE,TRIM42 |
33542-07020-E3 |
US $72.65 |
||
| replacement | |||||
|
33504F
|
33504F
33542-07021-E3
Knob Sub-Assy, Shift Lever
[08.1995 - 12.1996] MCX10..4FC DK.ADOBE,TRIM42 |
33542-07021-E3 |
— | ||
|
33504F
|
33504F
33542-07020-E4
Knob Sub-Assy, Shift Lever
[08.1996 - 12.1996] MCX10..4FC ROSE STONE,TRIM43 |
33542-07020-E4 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-07021-E4 Knob Sub-Assy, Shift Lever[08.1996 - 12.1996] MCX10..4FC ROSE STONE,TRIM43 |
33542-07021-E4 |
US $72.65 |
||
|
33504F
|
33504F
33542-07021-C2 Knob Sub-Assy, Shift Lever[12.1996 -] MCX10..4FC..XLS BLACK,TRIM2# |
33542-07021-C2 |
US $72.65 |
||
|
33504F
|
33504F
33542-07021-E3
Knob Sub-Assy, Shift Lever
[12.1996 - 09.1997] MCX10..4FC DK. ADOBE,TRIM4# |
33542-07021-E3 |
— | ||
|
33504F
|
33504F
33542-07021-E4 Knob Sub-Assy, Shift Lever[12.1996 -] MCX10..4FC..XLS ROSE STONE,TRIM4# |
33542-07021-E4 |
US $72.65 |
||
|
33504F
|
33504F
33542-07021-E5 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.1997 -] MCX10..XLS SANDAL WOOD,TRIM4# |
33542-07021-E5 |
US $72.65 |
||
|
33511
|
33511
33511-07010 Shaft, Control (For Floor Shift)[10.1996 -] MCX10..4FC |
33511-07010 |
US $27.96 |
||
|
33511
|
33511
33511-12100 Shaft, Control (For Floor Shift)[08.1995 - 10.1996] MCX10..4FC |
33511-12100 |
US $27.08 |
||
| replacement | |||||
|
33511
|
33511
33511-32070 Shaft, Control (For Floor Shift)[08.1995 - 10.1996] MCX10..4FC |
33511-32070 |
US $7.43 |
||
|
33511E
|
33511E
90080-52085 Ring, Snap (For Floor Shift Control Shaft)[10.1996 -] MCX10..4FC |
90080-52085 |
US $1.60 |
||
|
33511E
|
33511E
90520-08001 Ring, Snap (For Floor Shift Control Shaft)[08.1995 - 10.1996] MCX10..4FC |
90520-08001 |
US $1.75 |
||
|
33544
|
33544
33544-06010 Insert, Shift Lever, No.1[10.1996 -] MCX10..4FC |
33544-06010 |
US $0.99 |
||
|
33544
|
33544
33544-07010 Insert, Shift Lever, No.1[08.1995 - 11.1995] MCX10..4FC |
33544-07010 |
US $1.89 |
||
| replacement | |||||
|
33544
|
33544
33554-33010
Insert, Shift Lever, No.1
[08.1995 - 11.1995] MCX10..4FC |
33554-33010 |
— | ||
|
33544
|
33544
33544-33010 Collar (For Floor Shift Setting)[11.1995 - 10.1996] MCX10..4FC |
33544-33010 |
from US $1.60 |
||
|
33550D
|
33550D
90080-81039
Bulb, Position Indicator Lamp
[10.1996 - 01.1999] MCX10..4FC 14V 3.4W |
90080-81039 |
— | ||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[08.1995 - 10.1996] MCX10..4FC 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[08.1995 - 10.1996] MCX10..4FC 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33550E
|
33550E
90339-09005 Cap, Position Indicator Lamp[08.1995 - 11.1995] MCX10..4FC |
90339-09005 |
US $2.20 |
||
|
33550E
|
33550E
90339-09010 Cap, Position Indicator Lamp[11.1995 -] MCX10..4FC |
90339-09010 |
US $2.18 |
||
|
33554C
|
33554C
33554-07010 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [08.1995 -] MCX10..4FC |
33554-07010 |
US $1.89 |
||
|
33563
|
33563
33563-07010
Button, Shift Lock Release
[08.1995 -] MCX10..4FC |
33563-07010 |
— | ||
|
33563A
|
33563A
90080-50088 Spring, Compression (For Shift Lock Release Button)[08.1995 -] MCX10..4FC |
90080-50088 |
US $2.62 |
||
|
33564
|
33564
33564-07010 Link, Shift Lock Release, No.1SHIFT LOCK RELEASE, NO.1 [08.1995 -] MCX10..4FC |
33564-07010 |
US $5.39 |
||
|
33623
|
33623
33623-07010-C1
Button, Shift Lever Knob
[08.1995 -] MCX10..4FC BLACK,TRIM2# |
33623-07010-C1 |
— | ||
|
33623
|
33623
33623-07010-E2
Button, Shift Lever Knob
[08.1995 - 08.1996] MCX10..4FC DK.ROSE,TRIM4# |
33623-07010-E2 |
— | ||
|
33623
|
33623
33623-07010-E3 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1995 - 09.1997] MCX10..4FC ADOBE,TRIM4# |
33623-07010-E3 |
US $19.07 |
||
|
33623
|
33623
33623-07010-E4
Button, Shift Lever Knob
[08.1996 -] MCX10..4FC ROSE STONE,TRIM4# |
33623-07010-E4 |
— | ||
|
33623
|
33623
33623-07010-E5 Button, Shift Lever KnobSHIFT LEVER KNOB [09.1997 -] MCX10..4FC SANDAL WOOD,TRIM4# |
33623-07010-E5 |
US $19.07 |
||
|
33623A
|
33623A
90080-50087
Spring, Compression (For Shift Lever Knob Button)
[08.1995 -] MCX10..4FC |
90080-50087 |
— | ||
|
33625
|
33625
33625-07010 Sleeve, Shift Lever Knob[08.1995 -] MCX10..4FC |
33625-07010 |
US $3.06 |
||
|
33631
|
33631
33631-07010 Rod, Detent[08.1995 - 10.1996] MCX10..4FC |
33631-07010 |
US $27.23 |
||
| replacement | |||||
|
33631
|
33631
33631-07020 Rod, Detent[08.1995 - 10.1996] MCX10..4FC |
33631-07020 |
US $27.37 |
||
|
33631
|
33631
33631-07020 Rod, Detent[10.1996 -] MCX10..4FC |
33631-07020 |
US $27.37 |
||
|
33631A
|
33631A
90080-50127
Spring, Compression (For Detent Rod)
[08.1995 -] MCX10..4FC |
90080-50127 |
— | ||
|
33631D
|
33631D
90256-04008 Pin, Shift Lever Stop[08.1995 -] MCX10..4FC |
90256-04008 |
US $4.22 |
||
|
35559
|
35559
35559-07010 Spring, Manual Detent[08.1995 -] MCX10..4FC |
35559-07010 |
US $5.53 |
||
|
35559A
|
35559A
90080-36086 Pin (For Manual Detent Spring)[10.1996 -] MCX10..4FC |
90080-36086 |
US $2.62 |
||
|
35559A
|
35559A
90903-61001 Pin (For Manual Detent Spring)[08.1995 - 10.1996] MCX10..4FC |
90903-61001 |
US $1.75 |
||
|
35906
|
35906
35906-07010 Wire Sub-Assy, Indicator Lamp[08.1995 - 10.1996] MCX10..4FC |
35906-07010 |
US $15.58 |
||
|
35906
|
35906
35906-07020 Wire Sub-Assy, Indicator Lamp[10.1996 -] MCX10..4FC |
35906-07020 |
US $15.58 |
||
|
35921
|
35921
35921-07010
Plate, Control Position Indicator
[08.1995 -] MCX10..4FC |
35921-07010 |
— | ||
|
35971A
|
35971A
35971-07010
Housing, Position Indicator, Upper
[08.1995 -] MCX10..4FC |
35971-07010 |
— | ||
|
35974
|
35974
35974-07010 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [08.1995 -] MCX10..4FC |
35974-07010 |
US $63.77 |
||
|
35975
|
35975
35975-07010 Cover, Slide (For Position Indicator)[08.1995 -] MCX10..4FC |
35975-07010 |
US $48.78 |
||
|
35976
|
35976
35976-07010-C0 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [08.1995 -] MCX10..4FC BLACK,TRIM2# |
35976-07010-C0 |
US $47.61 |
||
|
35976
|
35976
35976-07010-E0 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [08.1995 - 08.1996] MCX10..4FC DK.ROSE,TRIM4# |
35976-07010-E0 |
US $47.61 |
||
|
35976
|
35976
35976-07010-E1 Cover, Slide, No.2 (For Position Indicator)[08.1995 - 09.1997] MCX10..4FC ADOBE,TRIM4# |
35976-07010-E1 |
US $47.61 |
||
|
35976
|
35976
35976-07010-E4 Cover, Slide, No.2 (For Position Indicator)[08.1996 -] MCX10..4FC ROSE STONE,TRIM4# |
35976-07010-E4 |
US $47.61 |
||
|
35976
|
35976
35976-07010-E5 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [09.1997 -] MCX10..4FC SANDAL WOOD,TRIM4# |
35976-07010-E5 |
US $47.61 |
||
|
9011908946
|
9011908946
90119-08946
New Genuine Part
|
90119-08946 |
— | ||
| replacement | |||||
|
9011908946
|
9011908946
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
|
9015940222
|
9015940222
90159-40222 New Genuine Part |
90159-40222 |
US $1.60 |
||
|
9016850066
|
9016850066
90168-50066 New Genuine Part |
90168-50066 |
US $1.46 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
