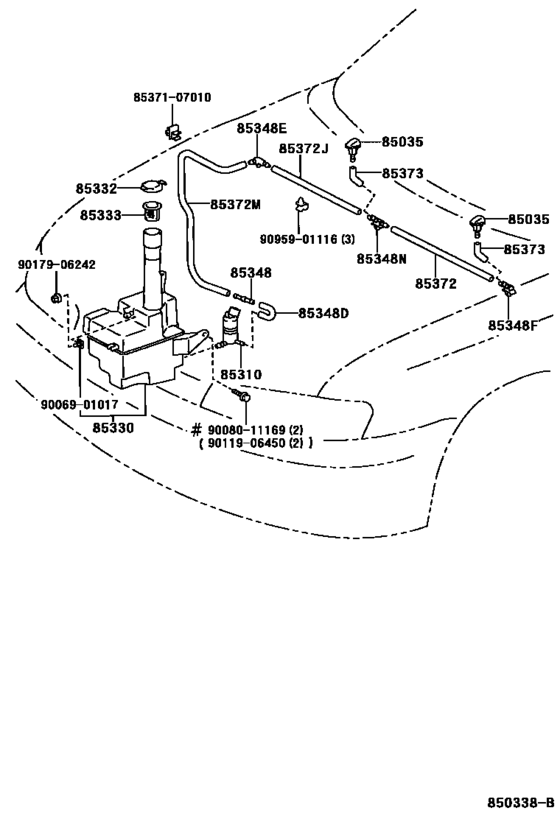

Windshield Washer ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85385-33020
Nozzle Sub-Assy, Washer
[08.1995 -] MCX10 |
85385-33020 |
— | ||
|
85035
|
85035
85385-41010-A0
Nozzle Sub-Assy, Washer
[08.1995 - 09.1997] MCX10 SUPER WHITE 2,040 |
85385-41010-A0 |
— | ||
|
85035
|
85035
85385-41010-A1
Nozzle Sub-Assy, Washer
[08.1995 - 09.1997] MCX10 SU.WHITE PM,051 |
85385-41010-A1 |
— | ||
|
85035
|
85035
85385-41010-D0
Nozzle Sub-Assy, Washer
[08.1995 - 08.1996] MCX10 MAGENT MC,3L3 |
85385-41010-D0 |
— | ||
|
85035
|
85035
85385-41010-E1
Nozzle Sub-Assy, Washer
[08.1995 - 09.1997] MCX10 BEIGE ME,4M9 |
85385-41010-E1 |
— | ||
|
85035
|
85035
85385-41010-G0
Nozzle Sub-Assy, Washer
[08.1995 - 08.1996] MCX10 GR.GREEN ME,6M3 |
85385-41010-G0 |
— | ||
|
85310
|
85310
85330-06030
Motor And Pump Assy, Windshield Washer
[08.1995 -] MCX10 |
85330-06030 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-06031 Motor And Pump Assy, Windshield Washer[08.1995 -] MCX10 |
85330-06031 |
US $116.38 |
||
|
85330
|
85330
85315-06030
Jar Assy, Windshield Washer
[08.1995 -] MCX10 |
85315-06030 |
— | ||
|
85332
|
85332
85316-06020 Cap, Windshield Washer Jar[08.1995 -] MCX10 |
85316-06020 |
US $4.80 |
||
| replacement | |||||
|
85332
|
85332
85316-06021 Cap, Windshield Washer Jar[08.1995 -] MCX10 |
85316-06021 |
from US $4.78 |
||
|
85333
|
85333
85333-03010
Filter, Windshield Washer Jar
[08.1995 -] MCX10 |
85333-03010 |
— | ||
| replacement | |||||
|
85333
|
85333
85333-12470 Filter, Windshield Washer Jar[08.1995 -] MCX10 |
85333-12470 |
from US $6.47 |
||
|
85348
|
85348
85357-07010
Joint, Windshield Washer Hose, No.1
[04.1999 -] MCX10 |
85357-07010 |
— | ||
|
85348
|
85348
85377-01010
Joint, Windshield Washer Hose, No.1
[08.1995 - 04.1999] MCX10 |
85377-01010 |
— | ||
| replacements | |||||
|
85348
|
85348
85357-07010
Joint, Windshield Washer Hose, No.1
[08.1995 - 04.1999] MCX10 |
85357-07010 |
— | ||
|
85348
|
85348
85376-06011 Joint, Windshield Washer Elbow, No.1[08.1995 - 04.1999] MCX10 |
85376-06011 |
US $3.93 |
||
|
85348D
|
85348D
85376-06010 Joint, Windshield Washer Elbow, No.1[08.1995 - 04.1999] MCX10 |
85376-06010 |
US $3.93 |
||
| replacements | |||||
|
85348D
|
85348D
85357-07010
Joint, Windshield Washer Hose, No.1
[08.1995 - 04.1999] MCX10 |
85357-07010 |
— | ||
|
85348D
|
85348D
85376-06011 Joint, Windshield Washer Elbow, No.1[08.1995 - 04.1999] MCX10 |
85376-06011 |
US $3.93 |
||
|
85348D
|
85348D
85377-06031 Joint, Windshield Washer Hose, No.1[08.1995 - 04.1999] MCX10 |
85377-06031 |
US $1.46 |
||
|
85348D
|
85348D
85376-06011 Joint, Windshield Washer Elbow, No.1[04.1999 - 08.1999] MCX10 |
85376-06011 |
US $3.93 |
||
|
85348E
|
85348E
85377-06020 Joint, Windshield Washer Elbow, No.2[08.1995 - 08.1999] MCX10 |
85377-06020 |
US $1.60 |
||
| replacement | |||||
|
85348E
|
85348E
85375-04080
Joint, Windshield Washer Elbow, No.2
[08.1995 - 08.1999] MCX10 |
85375-04080 |
— | ||
|
85348F
|
85348F
85377-06010
Joint, Windshield Washer Elbow, No.1
[08.1995 - 08.1999] MCX10 |
85377-06010 |
— | ||
|
85348N
|
85348N
85378-06010
Joint, Windshield Washer Hose, No.4
[08.1995 -] MCX10 |
85378-06010 |
— | ||
|
85372
|
85372
85374-06040 Hose, Windshield Washer (From Joint To Joint), No.1[08.1995 -] MCX10 L=520 |
85374-06040 |
US $7.43 |
||
|
85372J
|
85372J
85374-07010 Hose, Windshield Washer (From Joint To Joint), No.4[08.1995 -] MCX10 L=760 |
85374-07010 |
US $10.19 |
||
|
85372M
|
85372M
85374-06080 Hose, Windshield Washer (From Joint To Joint), No.7[08.1995 -] MCX10 L=1785 |
85374-06080 |
US $37.56 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1995 -] MCX10 *H,L=85 |
90099-33080 |
from US $6.16 |
||
|
8537107010
|
8537107010
85371-07010 Hose, Windshield Washer (from Motor To Joint) |
85371-07010 |
US $4.08 |
||
|
9006901017
|
9006901017
90069-01017 New Genuine Part |
90069-01017 |
US $1.60 |
||
|
9008011169
|
9008011169
90080-11169 BOLT WWASHER |
90080-11169 |
US $0.83 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9017906242
|
9017906242
90179-06242
Direct
|
90179-06242 |
— | ||
| replacement | |||||
|
9017906242
|
9017906242
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9095901116
|
9095901116
90959-01116 BRACKET |
90959-01116 |
from US $0.96 |
||
