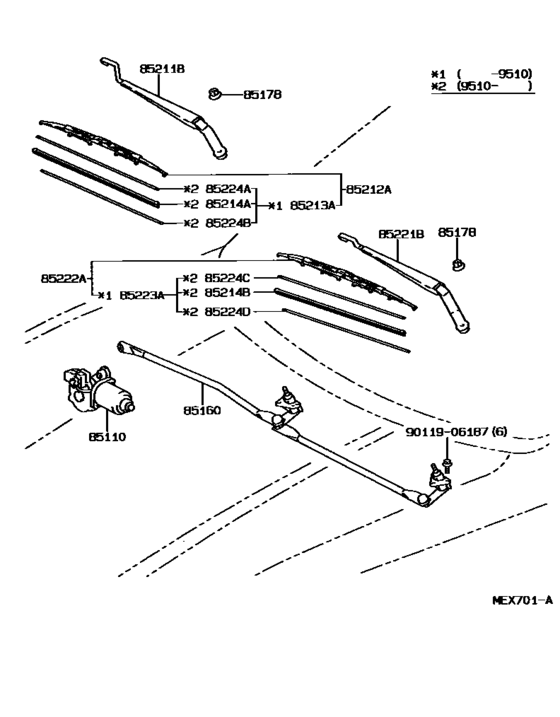

Windshield Wiper ([08.1995 - ] (9508- )) Diagram Toyota AVALON
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1995
- To
- 08.1999
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-07010
Motor Assy, Windshield Wiper
[08.1995 -] MCX10 |
85110-07010 |
— | ||
|
85160
|
85160
85150-07010
Link Assy, Windshield Wiper
[08.1995 -] MCX10 |
85150-07010 |
— | ||
|
85178
|
85178
90176-08040
Nut (For Front Wiper Arm Setting)
[08.1995 - 10.1995] MCX10 |
90176-08040 |
— | ||
| replacement | |||||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[08.1995 - 10.1995] MCX10 |
90176-08051 |
US $2.08 |
||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[10.1995 -] MCX10 |
90176-08051 |
US $2.08 |
||
|
85211B
|
85211B
85211-07010
Arm, Front Wiper, Rh
[08.1995 -] MCX10 |
85211-07010 |
— | ||
|
85212A
|
85212A
85212-07010 Blade, Fr Wiper, RhFR WIPER, RH [08.1995 -] MCX10 |
85212-07010 |
US $40.19 |
||
|
85213A
|
85213A
85213-07010 Rubber, Front Wiper Blade, Lh[08.1995 - 10.1995] MCX10 |
85213-07010 |
US $16.60 |
||
| replacement | |||||
|
85213A
|
85213A
85214-07010 Rubber, Wiper, Lh[08.1995 - 10.1995] MCX10 |
85214-07010 |
US $14.85 |
||
|
85213A
|
85213A
85214-07010 Rubber, Wiper, Lh[09.1997 -] MCX10 |
85214-07010 |
US $14.85 |
||
|
85214A
|
85214A
85214-07010 Rubber, Wiper, Lh[10.1995 -] MCX10 |
85214-07010 |
US $14.85 |
||
|
85214B
|
85214B
85214-07020 Rubber, Wiper, Rh[10.1995 -] MCX10 |
85214-07020 |
US $15.87 |
||
|
85221B
|
85221B
85221-07010
Arm, Front Wiper, Lh
[08.1995 -] MCX10 |
85221-07010 |
— | ||
|
85222A
|
85222A
85222-07010 Blade, Fr Wiper, LhFR WIPER, LH [08.1995 -] MCX10 |
85222-07010 |
US $48.78 |
||
|
85223A
|
85223A
85214-07020 Rubber, Wiper, Rh[09.1997 -] MCX10 |
85214-07020 |
US $15.87 |
||
|
85223A
|
85223A
85223-07010 Rubber, Wiper Blade, Rh[08.1995 - 10.1995] MCX10 |
85223-07010 |
US $19.66 |
||
| replacement | |||||
|
85223A
|
85223A
85214-07020 Rubber, Wiper, Rh[08.1995 - 10.1995] MCX10 |
85214-07020 |
US $15.87 |
||
|
85224A
|
85224A
85224-07010 Plate, Wiper Rubber Backing, No.3[10.1995 -] MCX10 |
85224-07010 |
US $5.82 |
||
|
85224B
|
85224B
85224-07010 Plate, Wiper Rubber Backing, No.3[10.1995 -] MCX10 |
85224-07010 |
US $5.82 |
||
|
85224C
|
85224C
85224-07020 Plate, Wiper Rubber Backing, No.1[10.1995 -] MCX10 |
85224-07020 |
US $6.41 |
||
|
85224D
|
85224D
85224-07020 Plate, Wiper Rubber Backing, No.1[10.1995 -] MCX10 |
85224-07020 |
US $6.41 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
