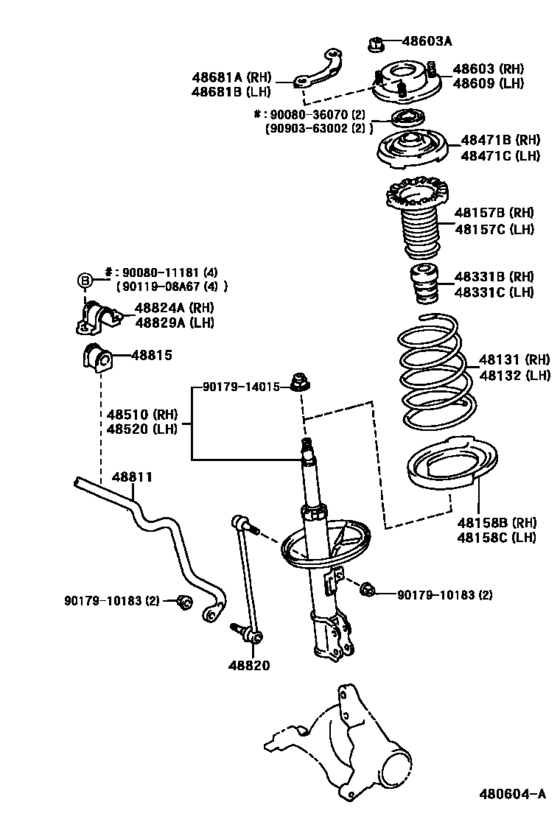

Front Spring & Shock Absorber ([09.1994 - ] (9409- )) Diagram Toyota AVALON
- Year
- 1994 - 1999
- Sales region
- U.S.A.
- Frame
- MCX10
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1994
- To
- 08.1999
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-06320
Spring, Front Coil, Rh
[02.1996 - 08.1996] MCX10 |
48131-06320 |
— | ||
|
48131
|
48131
48131-07010 Spring, Front Coil, Rh[09.1994 - 02.1996] MCX10 |
48131-07010 |
US $160.16 |
||
| replacement | |||||
|
48131
|
48131
48131-06320
Spring, Front Coil, Rh
[09.1994 - 02.1996] MCX10 |
48131-06320 |
— | ||
|
48131
|
48131
48131-AA020 Spring, Front Coil, Rh[08.1996 - 09.1997] MCX10 |
48131-AA020 |
US $160.16 |
||
|
48131
|
48131
48131-AC010 Spring, Front Coil, Rh[09.1997 -] MCX10 |
48131-AC010 |
US $160.16 |
||
|
48132
|
48132
48131-06320
Spring, Front Coil, Rh
[02.1996 - 08.1996] MCX10 |
48131-06320 |
— | ||
|
48132
|
48132
48131-07010 Spring, Front Coil, Rh[09.1994 - 02.1996] MCX10 |
48131-07010 |
US $160.16 |
||
| replacement | |||||
|
48132
|
48132
48131-06320
Spring, Front Coil, Rh
[09.1994 - 02.1996] MCX10 |
48131-06320 |
— | ||
|
48132
|
48132
48131-AA020 Spring, Front Coil, Rh[08.1996 - 09.1997] MCX10 |
48131-AA020 |
US $160.16 |
||
|
48132
|
48132
48131-AC010 Spring, Front Coil, Rh[09.1997 -] MCX10 |
48131-AC010 |
US $160.16 |
||
|
48157B
|
48157B
48157-07010
Insulator, Front Coil Spring, Upper Rh
[09.1994 -] MCX10 |
48157-07010 |
— | ||
|
48157C
|
48157C
48157-07010
Insulator, Front Coil Spring, Upper Rh
[09.1994 -] MCX10 |
48157-07010 |
— | ||
|
48158B
|
48158B
48158-07010 Insulator, Front Coil Spring, Lower Rh[09.1994 - 07.1997] MCX10 (L) |
48158-07010 |
US $19.22 |
||
|
48158B
|
48158B
48158-33020 Insulator, Front Coil Spring, Lower[09.1994 - 08.1996] MCX10 (J); MCX10..4FC..XLS..USA TAIWAN SPEC & *66,(J) |
48158-33020 |
from US $17.49 |
||
|
48158C
|
48158C
48158-07010 Insulator, Front Coil Spring, Lower Rh[09.1994 - 07.1997] MCX10 (L) |
48158-07010 |
US $19.22 |
||
|
48158C
|
48158C
48158-33020 Insulator, Front Coil Spring, Lower[09.1994 - 08.1996] MCX10 (J); MCX10..4FC..XLS..USA TAIWAN SPEC & *66,(J) |
48158-33020 |
from US $17.49 |
||
|
48331B
|
48331B
48331-06010
Bumper, Front Spring, Rh
[09.1994 - 07.1997] MCX10 |
48331-06010 |
— | ||
| replacement | |||||
|
48331B
|
48331B
48331-06011
Bumper, Front Spring, Rh
[09.1994 - 07.1997] MCX10 |
48331-06011 |
— | ||
|
48331B
|
48331B
48331-06011
Bumper, Front Spring, Rh
[07.1997 -] MCX10 |
48331-06011 |
— | ||
|
48331C
|
48331C
48331-06010
Bumper, Front Spring, Rh
[09.1994 - 07.1997] MCX10 |
48331-06010 |
— | ||
| replacement | |||||
|
48331C
|
48331C
48331-06011
Bumper, Front Spring, Rh
[09.1994 - 07.1997] MCX10 |
48331-06011 |
— | ||
|
48331C
|
48331C
48331-06011
Bumper, Front Spring, Rh
[07.1997 -] MCX10 |
48331-06011 |
— | ||
|
48471B
|
48471B
48471-41010 Seat, Front Coil Spring, Upper[09.1994 -] MCX10 |
48471-41010 |
from US $28.70 |
||
|
48471C
|
48471C
48471-41010 Seat, Front Coil Spring, Upper[09.1994 -] MCX10 |
48471-41010 |
from US $28.70 |
||
|
48510
|
48510
48510-09045 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [09.1994 - 08.1996] MCX10 |
48510-09045 |
US $313.04 |
||
|
48510
|
48510
48510-A9030 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.1996 -] MCX10 |
48510-A9030 |
US $330.51 |
||
|
48520
|
48520
48520-09035
Absorber Assy, Shock, Front Lh
[09.1994 - 08.1996] MCX10 |
48520-09035 |
— | ||
|
48520
|
48520
48520-A9030 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [08.1996 -] MCX10 |
48520-A9030 |
US $330.51 |
||
|
48603
|
48603
48603-33010
Support Sub-Assy, Front Suspension, Rh
[08.1996 - 08.1999] MCX10 |
48603-33010 |
— | ||
| replacement | |||||
|
48603
|
48603
48603-33021 Support Sub-Assy, Front Suspension, Rh[08.1996 - 08.1999] MCX10 |
48603-33021 |
from US $74.48 |
||
|
48603
|
48603
48609-07010 Support Sub-Assy, Front Suspension, Rh[09.1994 - 08.1996] MCX10 |
48609-07010 |
from US $70.18 |
||
|
48603A
|
48603A
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting)[09.1994 -] MCX10 |
90179-10095 |
US $1.76 |
||
|
48609
|
48609
48609-07010 Support Sub-Assy, Front Suspension, Rh[09.1994 - 08.1996] MCX10 |
48609-07010 |
from US $70.18 |
||
|
48609
|
48609
48609-33110
Support Sub-Assy, Front Suspension, Lh
[08.1996 - 08.1999] MCX10 |
48609-33110 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-33121 Support Sub-Assy, Front Suspension, Lh[08.1996 - 08.1999] MCX10 |
48609-33121 |
from US $73.24 |
||
|
48681A
|
48681A
48681-07010 Gasket, Front Suspension Support, Rh[09.1994 -] MCX10 |
48681-07010 |
US $6.70 |
||
|
48681B
|
48681B
48681-07010 Gasket, Front Suspension Support, Rh[09.1994 -] MCX10 |
48681-07010 |
US $6.70 |
||
|
48811
|
48811
48811-06030
Bar, Stabilizer, Front
[12.1994 - 03.1995] MCX10 PINK |
48811-06030 |
— | ||
|
48811
|
48811
48811-07010
Bar, Stabilizer, Front
[08.1996 -] MCX10 |
48811-07010 |
— | ||
|
48811
|
48811
48811-AC010 Bar, Stabilizer, Front[09.1994 - 12.1994] MCX10 |
48811-AC010 |
US $163.07 |
||
| replacement | |||||
|
48811
|
48811
48811-06030
Bar, Stabilizer, Front
[09.1994 - 12.1994] MCX10 |
48811-06030 |
— | ||
|
48815
|
48815
48815-06050
Bush, Front Stabilizer Bar, No.1
[08.1996 -] MCX10 |
48815-06050 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-33050 Bush, Front Stabilizer Bar, No.1[08.1996 -] MCX10 |
48815-33050 |
from US $8.59 |
||
|
48815
|
48815
48815-07010
Bush, Front Stabilizer Bar, No.1
[09.1994 - 08.1996] MCX10 |
48815-07010 |
— | ||
|
48820
|
48820
48810-06030
Link Assy, Front Stabilizer, Lh
[08.1996 -] MCX10 LH |
48810-06030 |
— | ||
|
48820
|
48820
48820-06030
Link Assy, Front Stabilizer
[08.1996 -] MCX10 RH |
48820-06030 |
— | ||
|
48820
|
48820
48820-33010 Link Assy, Front Stabilizer, Lh[09.1994 - 08.1996] MCX10 |
48820-33010 |
from US $69.38 |
||
|
48824A
|
48824A
48824-07010 Bracket, Stabilizer, Front[09.1994 -] MCX10 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48824A
|
48824A
48824-33020 Bracket, Stabilizer, Front[09.1994 -] MCX10 |
48824-33020 |
from US $4.51 |
||
|
48829A
|
48829A
48824-07010 Bracket, Stabilizer, Front[09.1994 -] MCX10 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48829A
|
48829A
48824-33020 Bracket, Stabilizer, Front[09.1994 -] MCX10 |
48824-33020 |
from US $4.51 |
||
|
9011908A67
|
9011908A67
90119-08A67
Bolt(For Clutch Release Cylinder Setting)
|
90119-08A67 |
— | ||
| replacement | |||||
|
9011908A67
|
9011908A67
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9008011181
|
9008011181
90080-11181
New Genuine Part
|
90080-11181 |
— | ||
|
9008036070
|
9008036070
90080-36070
Bearing(For Front Suspension Support Rh)
|
90080-36070 |
— | ||
| replacement | |||||
|
9008036070
|
9008036070
90903-63014 Bearing(For Front Suspension Support) |
90903-63014 |
from US $32.07 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.09 |
||
|
9090363002
|
9090363002
90903-63002
Bearing(For Front Suspension Support)
|
90903-63002 |
— | ||
| replacement | |||||
|
9090363002
|
9090363002
90903-63014 Bearing(For Front Suspension Support) |
90903-63014 |
from US $32.07 |
||
