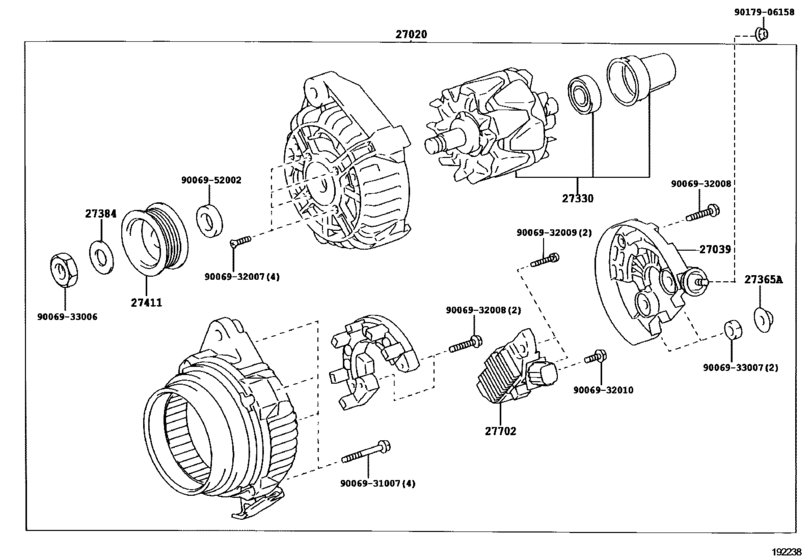

Alternator ([01.2001 - ] 12V 80A (0101- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-20120 Alternator Assy[04.2000 - 01.2001] 1MZFE..MCX10 12V 80A |
27060-20120 |
US $1,371.55 |
||
| replacement | |||||
|
27020
|
27020
27060-20160 Alternator Assy[04.2000 - 01.2001] 1MZFE..MCX10 12V 80A |
27060-20160 |
US $1,645.28 |
||
|
27020
|
27020
27060-YF010
Alternator Assy
[01.2001 - 09.2003] 1MZFE..MCX10 12V 80A |
27060-YF010 |
— | ||
|
27039
|
27039
27039-20020
Cover, Alternator Rear End
[04.2000 - 01.2001] 1MZFE..MCX10 |
27039-20020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-28090
Cover, Alternator Rear End
[04.2000 - 01.2001] 1MZFE..MCX10 |
27039-28090 |
— | ||
|
27039
|
27039
27039-YF010
Cover, Alternator Rear End
[01.2001 - 09.2003] 1MZFE..MCX10 |
27039-YF010 |
— | ||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[04.2000 - 01.2001] 1MZFE..MCX10 |
27330-74550 |
US $176.47 |
||
|
27330
|
27330
27330-YF010
Rotor Assy, Alternator
[01.2001 - 09.2003] 1MZFE..MCX10 |
27330-YF010 |
— | ||
|
27365A
|
27365A
27365-YF010
Plate, Rectifier
[01.2001 - 09.2003] 1MZFE..MCX10 |
27365-YF010 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[04.2000 - 01.2001] 1MZFE..MCX10 |
27384-50030 |
from US $2.80 |
||
|
27384
|
27384
27384-YF010
Washer
[01.2001 - 09.2003] 1MZFE..MCX10 |
27384-YF010 |
— | ||
|
27411
|
27411
27411-46080
Pulley, Alternator
[04.2000 - 01.2001] 1MZFE..MCX10 |
27411-46080 |
— | ||
|
27411
|
27411
27411-YF010
Pulley, Alternator
[01.2001 - 09.2003] 1MZFE..MCX10 |
27411-YF010 |
— | ||
|
27702
|
27702
27702-8Y001 Regulator Sub-Assy Generator W/brush[01.2001 - 09.2003] 1MZFE..MCX10 |
27702-8Y001 |
US $149.58 |
||
|
9006931007
|
9006931007
90069-31007
New Genuine Part
|
90069-31007 |
— | ||
|
9006932007
|
9006932007
90069-32007
New Genuine Part
|
90069-32007 |
— | ||
|
9006932008
|
9006932008
90069-32008
New Genuine Part
|
90069-32008 |
— | ||
|
9006932009
|
9006932009
90069-32009
New Genuine Part
|
90069-32009 |
— | ||
|
9006932010
|
9006932010
90069-32010
New Genuine Part
|
90069-32010 |
— | ||
|
9006933006
|
9006933006
90069-33006
New Genuine Part
|
90069-33006 |
— | ||
|
9006933007
|
9006933007
90069-33007
New Genuine Part
|
90069-33007 |
— | ||
|
9006952002
|
9006952002
90069-52002
New Genuine Part
|
90069-52002 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
