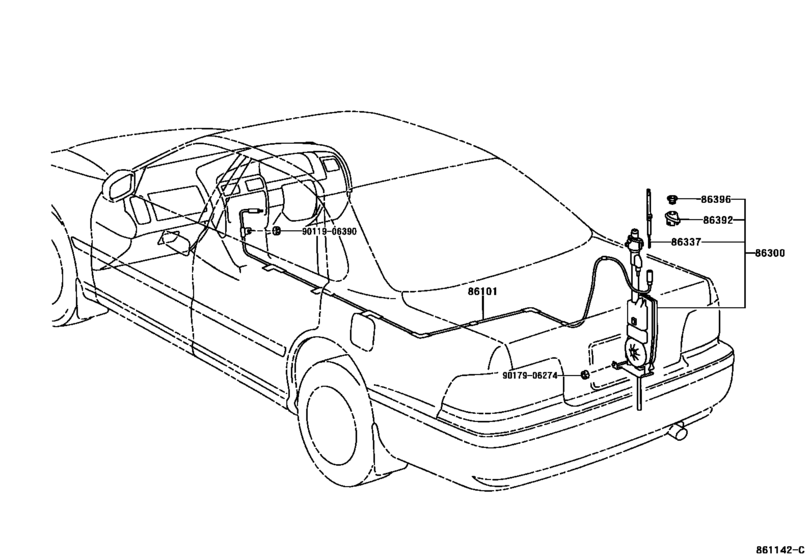

Antenna ([04.2000 - 09.2003] (0004-0309)) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-YF030
Cord Sub-Assy, Antenna
[07.2002 - 09.2003] MCX10 |
86101-YF030 |
— | ||
|
86101
|
86101
86101-YF040
Cord Sub-Assy, Antenna
[04.2000 - 07.2002] MCX10 |
86101-YF040 |
— | ||
|
86300
|
86300
86300-YF010
Antenna Assy, W/holder
[04.2000 - 09.2003] MCX10 |
86300-YF010 |
— | ||
|
86300
|
86300
86300-YF030
Antenna Assy, W/holder
[09.2003 -] MCX10 |
86300-YF030 |
— | ||
|
86337
|
86337
86337-8Y001
Rod & Pipe, Sealed W/cable
[04.2000 - 09.2003] MCX10 |
86337-8Y001 |
— | ||
|
86392
|
86392
86392-YF010
Ornament, Antenna
[04.2000 - 09.2003] MCX10 |
86392-YF010 |
— | ||
|
86396
|
86396
86396-06010
Nut, Antenna
[04.2000 - 09.2003] MCX10 |
86396-06010 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
