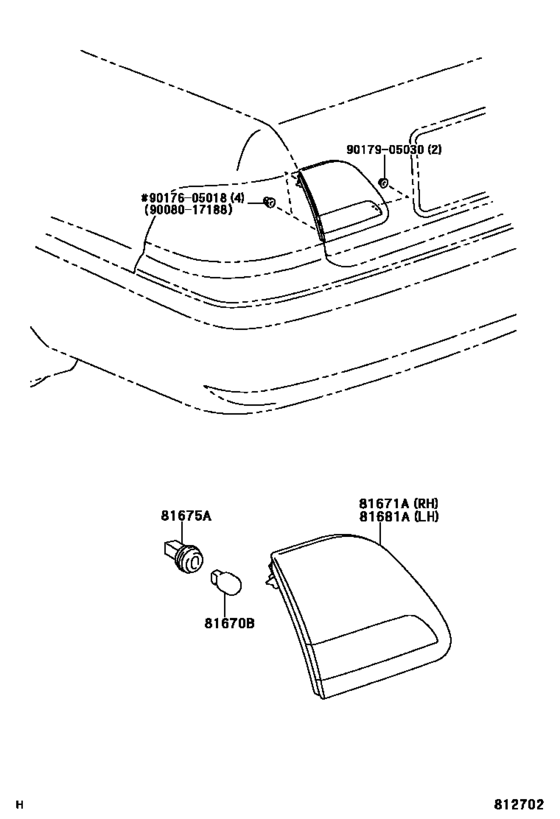

Back Up Lamp ([09.2003 - ] (0309- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670B
|
81670B
90981-11039
Bulb (For License Plate Lamp)
[04.2000 - 09.2003] MCX10 12V 16W |
90981-11039 |
— | ||
| replacement | |||||
|
81670B
|
81670B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2000 - 09.2003] MCX10 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81670B
|
81670B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[09.2003 -] MCX10 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81671A
|
81671A
81671-8Y002
Lens & Body, Back-Up Lamp
[09.2003 -] MCX10 |
81671-8Y002 |
— | ||
|
81675A
|
81675A
81565-8Y001
Plug, Socket(For Back-Up Lamp)
[09.2003 -] MCX10 |
81565-8Y001 |
— | ||
|
81681A
|
81681A
81681-8Y002
Lens & Body, Back-Up Lamp, Lh
[09.2003 -] MCX10 |
81681-8Y002 |
— | ||
|
9008017188
|
9008017188
90080-17188
New Genuine Part
|
90080-17188 |
— | ||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.78 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
