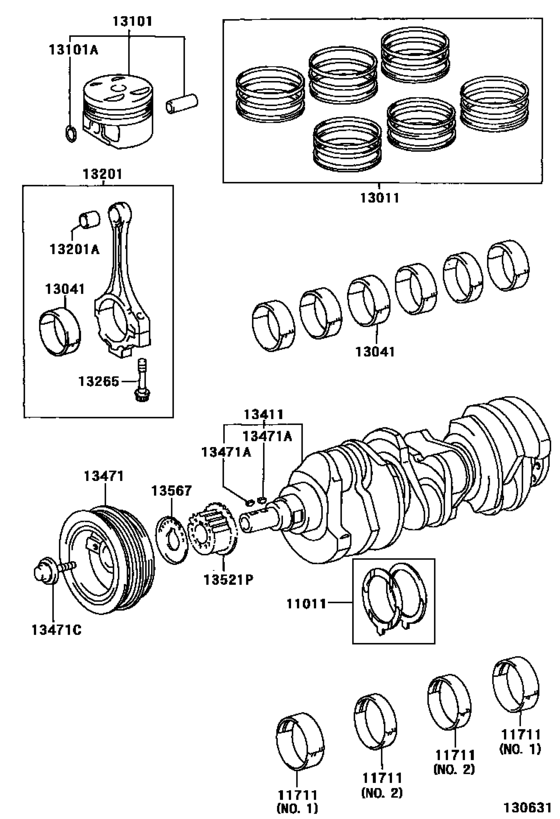

Crankshaft & Piston ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0A010
Washer Set, Crankshaft Thrust
[12.2000 - 09.2003] 1MZFE..MCX10 STD,(L) |
11011-0A010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-20020 Washer Set, Crankshaft Thrust[12.2000 - 09.2003] 1MZFE..MCX10 STD,(L) |
11011-20020 |
from US $29.35 |
||
|
11011
|
11011
11011-20020 Washer Set, Crankshaft Thrust[04.2000 - 12.2000] 1MZFE..MCX10 STD |
11011-20020 |
from US $29.35 |
||
|
11711
|
11711
11071-0A010-01
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 1,NO.2,(L):REFER TO REPAIR MANUAL,MARK 1 |
11071-0A010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 1,NO.2,(L):REFER TO REPAIR MANUAL,MARK 1 |
11071-20021-01 |
US $28.84 |
||
|
11711
|
11711
11071-0A010-02
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 2,NO.2,(L):REFER TO REPAIR MANUAL,MARK 2 |
11071-0A010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 2,NO.2,(L):REFER TO REPAIR MANUAL,MARK 2 |
11071-20021-02 |
from US $28.84 |
||
|
11711
|
11711
11071-0A010-03
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 3,NO.2,(L):REFER TO REPAIR MANUAL,MARK 3 |
11071-0A010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-0A020-03
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 3,NO.2,(L):REFER TO REPAIR MANUAL,MARK 3 |
11071-0A020-03 |
— | ||
|
11711
|
11711
11071-0A010-04 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 4,NO.2,(L):REFER TO REPAIR MANUAL,MARK 4 |
11071-0A010-04 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 4,NO.2,(L):REFER TO REPAIR MANUAL,MARK 4 |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-0A010-05 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 5,NO.2,(L):REFER TO REPAIR MANUAL,MARK 5 |
11071-0A010-05 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 5,NO.2,(L):REFER TO REPAIR MANUAL,MARK 5 |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-0A020-01
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 1,NO.2,(L):REFER TO REPAIR MANUAL,MARK 1 |
11071-0A020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 1,NO.2,(L):REFER TO REPAIR MANUAL,MARK 1 |
11071-20021-01 |
US $28.84 |
||
|
11711
|
11711
11071-0A020-02
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 2,NO.2,(L):REFER TO REPAIR MANUAL,MARK 2 |
11071-0A020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 2,NO.2,(L):REFER TO REPAIR MANUAL,MARK 2 |
11071-20021-02 |
from US $28.84 |
||
|
11711
|
11711
11071-0A020-03
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 3,NO.2,(L):REFER TO REPAIR MANUAL,MARK 3 |
11071-0A020-03 |
— | ||
|
11711
|
11711
11071-0A020-04
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 4,NO.2,(L):REFER TO REPAIR MANUAL,MARK 4 |
11071-0A020-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 4,NO.2,(L):REFER TO REPAIR MANUAL,MARK 4 |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-0A020-05
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 5,NO.2,(L):REFER TO REPAIR MANUAL,MARK 5 |
11071-0A020-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 5,NO.2,(L):REFER TO REPAIR MANUAL,MARK 5 |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-0A020-06
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 6,NO.2,(L):REFER TO REPAIR MANUAL,MARK 6 |
11071-0A020-06 |
— | ||
|
11711
|
11711
11071-0A020-07
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 7,NO.2,(L):REFER TO REPAIR MANUAL,MARK 7 |
11071-0A020-07 |
— | ||
|
11711
|
11711
11071-20020-01 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1 |
11071-20020-01 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1 |
11071-20021-01 |
US $28.84 |
||
|
11711
|
11711
11071-20020-02 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2 |
11071-20020-02 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2 |
11071-20021-02 |
from US $28.84 |
||
|
11711
|
11711
11071-20020-03 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3 |
11071-20020-03 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-03 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3 |
11071-20021-03 |
from US $28.84 |
||
|
11711
|
11711
11071-20020-04 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4,NO.2:REFER TO REPAIR MANUAL,MARK 4 |
11071-20020-04 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4,NO.2:REFER TO REPAIR MANUAL,MARK 4 |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-20020-05 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 5,NO.2:REFER TO REPAIR MANUAL,MARK 5 |
11071-20020-05 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 5,NO.2:REFER TO REPAIR MANUAL,MARK 5 |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-20020-06 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 6,NO.2,(J):REFER TO REPAIR MANUAL,MARK 6 |
11071-20020-06 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-06 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 6,NO.2,(J):REFER TO REPAIR MANUAL,MARK 6 |
11071-20021-06 |
US $47.61 |
||
|
11711
|
11711
11071-20020-07 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 7,NO.2,(J):REFER TO REPAIR MANUAL,MARK 7 |
11071-20020-07 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-07 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 7,NO.2,(J):REFER TO REPAIR MANUAL,MARK 7 |
11071-20021-07 |
US $47.61 |
||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK1,NO.2,REFER R/M |
11071-20021-01 |
US $28.84 |
||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK2,NO.2,REFER R/M |
11071-20021-02 |
from US $28.84 |
||
|
11711
|
11711
11071-20021-03 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK3,NO.2,REFER R/M |
11071-20021-03 |
from US $28.84 |
||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[12.2004 -] 1MZFE..MCX10 MARK4,NO.2,REFER R/M |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK5,NO.2,REFER R/M |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-20021-06 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK6,NO.2,REFER R/M |
11071-20021-06 |
US $47.61 |
||
|
11711
|
11711
11071-20021-07 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK7,NO.2,REFER R/M |
11071-20021-07 |
US $47.61 |
||
|
11711
|
11711
11701-0A010-03 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 3,NO.1,(L):REFER TO REPAIR MANUAL,MARK 3 |
11701-0A010-03 |
US $53.73 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 3,NO.1,(L):REFER TO REPAIR MANUAL,MARK 3 |
11701-20030-03 |
from US $30.54 |
||
|
11711
|
11711
11701-0A010-04 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 4,NO.1,(L):REFER TO REPAIR MANUAL,MARK 4 |
11701-0A010-04 |
US $53.73 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[12.2000 - 05.2003] 1MZFE..MCX10 MARK 4,NO.1,(L):REFER TO REPAIR MANUAL,MARK 4 |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-0A010-05 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 5,NO.1,(L):REFER TO REPAIR MANUAL,MARK 5 |
11701-0A010-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 5,NO.1,(L):REFER TO REPAIR MANUAL,MARK 5 |
11701-20030-05 |
from US $25.39 |
||
|
11711
|
11711
11701-0A010-06 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 6,NO.1,(L):REFER TO REPAIR MANUAL,MARK 6 |
11701-0A010-06 |
US $33.92 |
||
|
11711
|
11711
11701-0A010-07 Bearing, Crankshaft[12.2000 - 05.2003] 1MZFE..MCX10 MARK 7,NO.1,(L):REFER TO REPAIR MANUAL,MARK 7 |
11701-0A010-07 |
US $33.92 |
||
|
11711
|
11711
11701-0A020-01
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 1,NO.1,(L):REFER TO REPAIR MANUAL,MARK 1 |
11701-0A020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-01 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 1,NO.1,(L):REFER TO REPAIR MANUAL,MARK 1 |
11701-20030-01 |
US $60.86 |
||
|
11711
|
11711
11701-0A020-02
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 2,NO.1,(L):REFER TO REPAIR MANUAL,MARK 2 |
11701-0A020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-02 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 2,NO.1,(L):REFER TO REPAIR MANUAL,MARK 2 |
11701-20030-02 |
from US $26.62 |
||
|
11711
|
11711
11701-0A020-03
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 3,NO.1,(L):REFER TO REPAIR MANUAL,MARK 3 |
11701-0A020-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 3,NO.1,(L):REFER TO REPAIR MANUAL,MARK 3 |
11701-20030-03 |
from US $30.54 |
||
|
11711
|
11711
11701-0A020-04
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 4,NO.1,(L):REFER TO REPAIR MANUAL,MARK 4 |
11701-0A020-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 4,NO.1,(L):REFER TO REPAIR MANUAL,MARK 4 |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-0A020-05
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 5,NO.1,(L):REFER TO REPAIR MANUAL,MARK 5 |
11701-0A020-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 5,NO.1,(L):REFER TO REPAIR MANUAL,MARK 5 |
11701-20030-05 |
from US $25.39 |
||
|
11711
|
11711
11701-0A020-06
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 6,NO.1,(L):REFER TO REPAIR MANUAL,MARK 6 |
11701-0A020-06 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-06 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 6,NO.1,(L):REFER TO REPAIR MANUAL,MARK 6 |
11701-20030-06 |
from US $30.54 |
||
|
11711
|
11711
11701-0A020-07
Bearing, Crankshaft
[05.2003 - 09.2003] 1MZFE..MCX10 MARK 7,NO.1,(L):REFER TO REPAIR MANUAL,MARK 7 |
11701-0A020-07 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-20030-07 Bearing, Crankshaft[05.2003 - 09.2003] 1MZFE..MCX10 MARK 7,NO.1,(L):REFER TO REPAIR MANUAL,MARK 7 |
11701-20030-07 |
US $60.86 |
||
|
11711
|
11711
11701-20020-01 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 1,NO.1,(J):REFER TO REPAIR MANUAL,MARK 1 |
11701-20020-01 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-01 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 1,NO.1,(J):REFER TO REPAIR MANUAL,MARK 1 |
11701-20030-01 |
US $60.86 |
||
|
11711
|
11711
11701-20020-02 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 2,NO.1,(J):REFER TO REPAIR MANUAL,MARK 2 |
11701-20020-02 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-02 Bearing, Crankshaft[01.2001 - 09.2003] 1MZFE..MCX10 MARK 2,NO.1,(J):REFER TO REPAIR MANUAL,MARK 2 |
11701-20030-02 |
from US $26.62 |
||
|
11711
|
11711
11701-20020-03 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3 |
11701-20020-03 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3 |
11701-20030-03 |
from US $30.54 |
||
|
11711
|
11711
11701-20020-04 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4,NO.1:REFER TO REPAIR MANUAL,MARK 4 |
11701-20020-04 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4,NO.1:REFER TO REPAIR MANUAL,MARK 4 |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-20020-05 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 5,NO.1:REFER TO REPAIR MANUAL,MARK 5 |
11701-20020-05 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 5,NO.1:REFER TO REPAIR MANUAL,MARK 5 |
11701-20030-05 |
from US $25.39 |
||
|
11711
|
11711
11701-20020-06 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 6,NO.1:REFER TO REPAIR MANUAL,MARK 6 |
11701-20020-06 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-06 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 6,NO.1:REFER TO REPAIR MANUAL,MARK 6 |
11701-20030-06 |
from US $30.54 |
||
|
11711
|
11711
11701-20020-07 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 7,NO.1:REFER TO REPAIR MANUAL,MARK 7 |
11701-20020-07 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-07 Bearing, Crankshaft[04.2000 - 12.2000] 1MZFE..MCX10 MARK 7,NO.1:REFER TO REPAIR MANUAL,MARK 7 |
11701-20030-07 |
US $60.86 |
||
|
11711
|
11711
11701-20030-01 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK1,NO.1,REFER R/M |
11701-20030-01 |
US $60.86 |
||
|
11711
|
11711
11701-20030-02 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK2,NO.1,REFER R/M |
11701-20030-02 |
from US $26.62 |
||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK3,NO.1,REFER R/M |
11701-20030-03 |
from US $30.54 |
||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[12.2004 -] 1MZFE..MCX10 MARK4,NO.1,REFER R/M |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK5,NO.1,REFER R/M |
11701-20030-05 |
from US $25.39 |
||
|
11711
|
11711
11701-20030-06 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK6,NO.1,REFER R/M |
11701-20030-06 |
from US $30.54 |
||
|
11711
|
11711
11701-20030-07 Bearing, Crankshaft[12.2004 -] 1MZFE..MCX10 MARK7,NO.1,REFER R/M |
11701-20030-07 |
US $60.86 |
||
|
13011
|
13011
13011-0A020
Ring Set, Piston
[12.2000 - 07.2002] 1MZFE..MCX10 STD,(L) |
13011-0A020 |
— | ||
|
13011
|
13011
13011-0A040
Ring Set, Piston
[07.2003 - 09.2003] 1MZFE..MCX10 STD,(L) |
13011-0A040 |
— | ||
|
13011
|
13011
13011-20022
Ring Set, Piston
[04.2000 - 12.2000] 1MZFE..MCX10 STD |
13011-20022 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-20023 Ring Set, Piston[04.2000 - 12.2000] 1MZFE..MCX10 STD |
13011-20023 |
from US $255.63 |
||
|
13011
|
13011
13011-20023 Ring Set, Piston[07.2002 - 09.2003] 1MZFE..MCX10 STD,(J) |
13011-20023 |
from US $255.63 |
||
|
13041
|
13041
13041-0A010-01
Bearing, Connecting Rod
[12.2000 - 09.2003] 1MZFE..MCX10 MARK 1,(L):REFER TO REPAIR MANUAL,MARK 1 |
13041-0A010-01 |
— | ||
|
13041
|
13041
13041-0A010-02
Bearing, Connecting Rod
[12.2000 - 09.2003] 1MZFE..MCX10 MARK 2,(L):REFER TO REPAIR MANUAL,MARK 2 |
13041-0A010-02 |
— | ||
|
13041
|
13041
13041-0A010-03
Bearing, Connecting Rod
[12.2000 - 09.2003] 1MZFE..MCX10 MARK 3,(L):REFER TO REPAIR MANUAL,MARK 3 |
13041-0A010-03 |
— | ||
|
13041
|
13041
13041-0A010-04
Bearing, Connecting Rod
[12.2000 - 09.2003] 1MZFE..MCX10 MARK 4,(L):REFER TO REPAIR MANUAL,MARK 4 |
13041-0A010-04 |
— | ||
|
13041
|
13041
13041-20010-01
Bearing, Connecting Rod
[04.2000 - 12.2000] 1MZFE..MCX10 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-20010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-20011-01 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-20011-01 |
from US $14.96 |
||
|
13041
|
13041
13041-20010-02 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-20010-02 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-02 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-20011-02 |
from US $16.59 |
||
|
13041
|
13041
13041-20010-03 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-20010-03 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-03 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-20011-03 |
from US $16.40 |
||
|
13041
|
13041
13041-20010-04 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
13041-20010-04 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-04 Bearing, Connecting Rod[04.2000 - 12.2000] 1MZFE..MCX10 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
13041-20011-04 |
from US $18.80 |
||
|
13041
|
13041
13041-20011-01 Bearing, Connecting Rod[12.2004 -] 1MZFE..MCX10 MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-20011-01 |
from US $14.96 |
||
|
13041
|
13041
13041-20011-02 Bearing, Connecting Rod[12.2004 -] 1MZFE..MCX10 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-20011-02 |
from US $16.59 |
||
|
13041
|
13041
13041-20011-03 Bearing, Connecting Rod[12.2004 -] 1MZFE..MCX10 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-20011-03 |
from US $16.40 |
||
|
13041
|
13041
13041-20011-04 Bearing, Connecting Rod[12.2004 -] 1MZFE..MCX10 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
13041-20011-04 |
from US $18.80 |
||
|
13101
|
13101
13101-0A020
Piston Sub-Assy, W/pin
[12.2000 - 07.2003] 1MZFE..MCX10 STD,RH,(L) |
13101-0A020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-20030 Piston Sub-Assy, W/pin[12.2000 - 07.2003] 1MZFE..MCX10 STD,RH,(L) |
13101-20030 |
US $104.83 |
||
|
13101
|
13101
13101-0A050
Piston Sub-Assy, W/pin
[07.2003 - 09.2003] 1MZFE..MCX10 STD,RH,(L) |
13101-0A050 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-20041 Piston Sub-Assy, W/pin[07.2003 - 09.2003] 1MZFE..MCX10 STD,RH,(L) |
13101-20041 |
from US $75.54 |
||
|
13101
|
13101
13101-20030 Piston Sub-Assy, W/pin[04.2000 - 12.2000] 1MZFE..MCX10 STD,RH |
13101-20030 |
US $104.83 |
||
|
13101
|
13101
13101-20040 Piston Sub-Assy, W/pin[07.2001 - 07.2003] 1MZFE..MCX10 STD,RH,(J) |
13101-20040 |
US $104.83 |
||
| replacement | |||||
|
13101
|
13101
13101-20041 Piston Sub-Assy, W/pin[07.2001 - 07.2003] 1MZFE..MCX10 STD,RH,(J) |
13101-20041 |
from US $75.54 |
||
|
13101
|
13101
13101-20041 Piston Sub-Assy, W/pin[07.2003 - 09.2003] 1MZFE..MCX10 STD,RH,(J) |
13101-20041 |
from US $75.54 |
||
|
13101
|
13101
13301-0A020
Piston Sub-Assy, W/pin
[12.2000 - 07.2003] 1MZFE..MCX10 STD,LH,(L) |
13301-0A020 |
— | ||
|
13101
|
13101
13301-0A040
Piston Sub-Assy, W/pin
[07.2003 - 09.2003] 1MZFE..MCX10 STD,LH,(L) |
13301-0A040 |
— | ||
| replacement | |||||
|
13101
|
13101
13301-20031 Piston Sub-Assy, W/pin[07.2003 - 09.2003] 1MZFE..MCX10 STD,LH,(L) |
13301-20031 |
from US $72.48 |
||
|
13101
|
13101
13301-20020
Piston Sub-Assy, W/pin
[04.2000 - 12.2000] 1MZFE..MCX10 STD,LH |
13301-20020 |
— | ||
|
13101
|
13101
13301-20030 Piston Sub-Assy, W/pin[07.2001 - 07.2003] 1MZFE..MCX10 STD,LH,(J) |
13301-20030 |
US $104.83 |
||
| replacement | |||||
|
13101
|
13101
13301-20031 Piston Sub-Assy, W/pin[07.2001 - 07.2003] 1MZFE..MCX10 STD,LH,(J) |
13301-20031 |
from US $72.48 |
||
|
13101
|
13101
13301-20031 Piston Sub-Assy, W/pin[07.2003 - 09.2003] 1MZFE..MCX10 STD,LH,(J) |
13301-20031 |
from US $72.48 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[04.2000 - 09.2003] 1MZFE..MCX10 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-09070
Rod Sub-Assy, Connecting
[12.2000 - 06.2002] 1MZFE..MCX10 ENGINE NO.=5XXXXXX-9XXXXXX,(L) |
13201-09070 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09190
Rod Sub-Assy, Connecting
[12.2000 - 06.2002] 1MZFE..MCX10 ENGINE NO.=5XXXXXX-9XXXXXX,(L) |
13201-09190 |
— | ||
|
13201
|
13201
13201-09190
Rod Sub-Assy, Connecting
[06.2002 - 09.2003] 1MZFE..MCX10 ENGINE NO.=5XXXXXX-9XXXXXX,(L) |
13201-09190 |
— | ||
|
13201
|
13201
13201-29015
Rod Sub-Assy, Connecting
[04.2000 - 06.2002] 1MZFE..MCX10 ENGINE NO.=0XXXXXX-4XXXXXX |
13201-29015 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29525 Rod Sub-Assy, Connecting[04.2000 - 06.2002] 1MZFE..MCX10 ENGINE NO.=0XXXXXX-4XXXXXX |
13201-29525 |
US $221.31 |
||
|
13201
|
13201
13201-29155
Rod Sub-Assy, Connecting
[06.2002 - 02.2003] 1MZFE..MCX10 ENGINE NO.=5XXXXXX-9XXXXXX,(J) |
13201-29155 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29525 Rod Sub-Assy, Connecting[06.2002 - 02.2003] 1MZFE..MCX10 ENGINE NO.=5XXXXXX-9XXXXXX,(J) |
13201-29525 |
US $221.31 |
||
|
13201
|
13201
13201-29165
Rod Sub-Assy, Connecting
[02.2003 - 09.2003] 1MZFE..MCX10 ENGINE NO.=0XXXXXX-4XXXXXX |
13201-29165 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29525 Rod Sub-Assy, Connecting[02.2003 - 09.2003] 1MZFE..MCX10 ENGINE NO.=0XXXXXX-4XXXXXX |
13201-29525 |
US $221.31 |
||
|
13201
|
13201
13201-29525 Rod Sub-Assy, Connecting[12.2003 - 06.2005] 1MZFE..MCX10 |
13201-29525 |
US $221.31 |
||
|
13201A
|
13201A
90999-73119 Bush(For Connecting Rod Small End)[04.2000 - 09.2003] 1MZFE..MCX10 |
90999-73119 |
from US $9.76 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[06.2002 - 09.2003] 1MZFE..MCX10 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[06.2002 - 09.2003] 1MZFE..MCX10 |
13265-28020 |
from US $3 |
||
|
13265
|
13265
13265-50020 Bolt, Connecting Rod[04.2000 - 06.2002] 1MZFE..MCX10 |
13265-50020 |
US $8.48 |
||
|
13411
|
13411
13401-0A020
Crankshaft
[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
13401-0A020 |
— | ||
|
13411
|
13411
13401-20030
Crankshaft
[04.2000 - 12.2000] 1MZFE..MCX10 |
13401-20030 |
— | ||
|
13471
|
13471
13408-0A010
Pulley, Crankshaft
[04.2000 - 09.2003] 1MZFE..MCX10 (L) |
13408-0A010 |
— | ||
|
13471
|
13471
13408-20010 Pulley, Crankshaft[04.2000 - 09.2003] 1MZFE..MCX10 (J) |
13408-20010 |
from US $257.76 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[04.2000 - 09.2003] 1MZFE..MCX10 |
95161-30516 |
from US $1.17 |
||
|
13471C
|
13471C
90119-16004 Bolt(For Crankshaft Pulley Set)[04.2000 - 09.2003] 1MZFE..MCX10 |
90119-16004 |
from US $5.48 |
||
|
13521P
|
13521P
13521-0A010
Pulley, Crankshaft Timing
[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
13521-0A010 |
— | ||
| replacement | |||||
|
13521P
|
13521P
13521-20020 Pulley, Crankshaft Timing[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
13521-20020 |
from US $47.93 |
||
|
13521P
|
13521P
13521-20020 Pulley, Crankshaft Timing[04.2000 - 12.2000] 1MZFE..MCX10 |
13521-20020 |
from US $47.93 |
||
|
13567
|
13567
13567-62010 Guide, Timing Belt[04.2000 - 09.2003] 1MZFE..MCX10 |
13567-62010 |
from US $4.50 |
||
