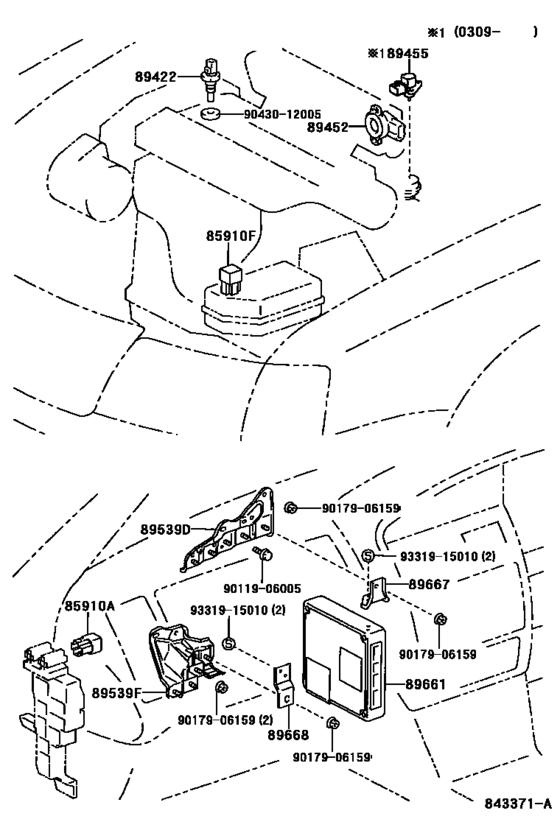

Electronic Fuel Injection System ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87016
Relay Assy, Circuit Opening (For Efi)
[04.2000 - 07.2003] MCX10 |
90080-87016 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90987-02009 Relay Assy[04.2000 - 07.2003] MCX10 |
90987-02009 |
from US $33.87 |
||
|
85910A
|
85910A
90987-02009 Relay Assy[07.2003 - 09.2003] MCX10 |
90987-02009 |
from US $33.87 |
||
|
85910F
|
85910F
90080-87016
Relay Assy, Circuit Opening (For Efi)
[04.2000 - 07.2003] MCX10 |
90080-87016 |
— | ||
| replacement | |||||
|
85910F
|
85910F
90987-02009 Relay Assy[04.2000 - 07.2003] MCX10 |
90987-02009 |
from US $33.87 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[07.2003 - 09.2003] MCX10 |
90987-02009 |
from US $33.87 |
||
|
89422
|
89422
89422-33020 Sensor, Water Temperature (For E.f.i.)[09.2003 - 06.2005] MCX10 P/N LABEL=8942233020 |
89422-33020 |
US $43.10 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.2000 - 09.2003] MCX10 |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[05.2000 - 09.2003] MCX10 |
89452-33030 |
from US $40.89 |
||
|
89452
|
89452
89452-33040
Sensor, Throttle Position (For E.f.i.)
[04.2000 - 05.2000] MCX10 |
89452-33040 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[04.2000 - 05.2000] MCX10 |
89452-33030 |
from US $40.89 |
||
|
89455
|
89455
89455-33020 Sensor, Egr Valve PositionEGR VALVE POSITION [09.2003 -] MCX10 |
89455-33020 |
US $44.95 |
||
|
89539D
|
89539D
89539-33060 Bracket, Computer[04.2000 - 09.2003] MCX10 |
89539-33060 |
US $19.80 |
||
|
89539F
|
89539F
89539-33070 Bracket, Computer[04.2000 - 09.2003] MCX10 |
89539-33070 |
US $26.50 |
||
|
89661
|
89661
89661-07300
Computer, Engine Control
[04.2000 - 08.2002] MCX10 |
89661-07300 |
— | ||
|
89661
|
89661
89661-07391
Computer, Engine Control
[08.2002 - 09.2003] MCX10 |
89661-07391 |
— | ||
|
89661
|
89661
89661-07400
Computer, Engine Control
[09.2003 -] MCX10 |
89661-07400 |
— | ||
|
89661
|
89661
89661-YY010
Computer, Engine Control
[02.2003 - 09.2003] MCX10..CONQ,CSX W(LPG) |
89661-YY010 |
— | ||
|
89661
|
89661
89661-YY030
Computer, Engine Control
[09.2003 -] MCX10..CONQ,CSX W(LPG) |
89661-YY030 |
— | ||
|
89667
|
89667
89667-33020 Bracket, Engine Control Computer[04.2000 - 09.2003] MCX10 |
89667-33020 |
US $7.28 |
||
|
89668
|
89668
89668-33030 Bracket, Engine Control Computer, No.2[04.2000 - 09.2003] MCX10 |
89668-33030 |
US $7.28 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
