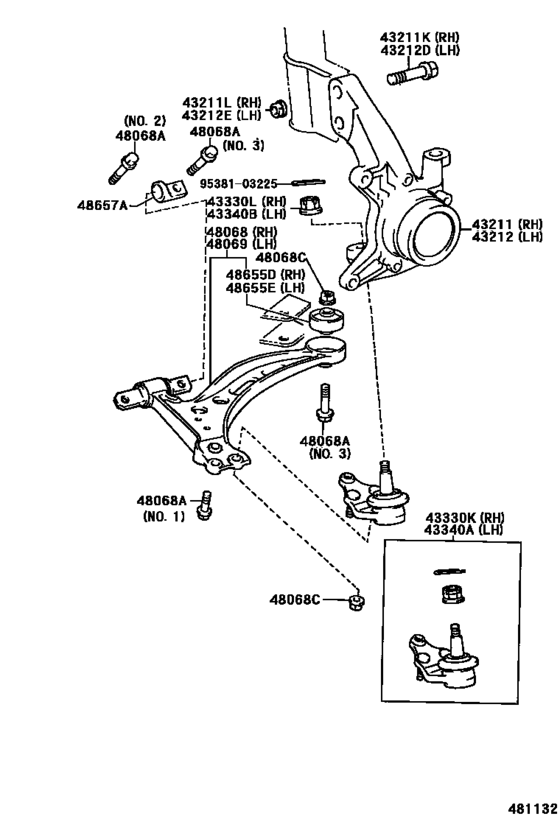

Front Axle Arm & Steering Knuckle ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-06080
Knuckle, Steering, Rh
[04.2000 - 05.2001] MCX10..CONQ,VXI |
43211-06080 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-06081
Knuckle, Steering, Rh
[04.2000 - 05.2001] MCX10..CONQ,VXI |
43211-06081 |
— | ||
|
43211
|
43211
43211-06081
Knuckle, Steering, Rh
[05.2001 - 09.2003] MCX10..CONQ,VXI |
43211-06081 |
— | ||
|
43211
|
43211
43211-06090
Knuckle, Steering, Rh
[04.2000 - 05.2001] MCX10 W(ABS) |
43211-06090 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-06091
Knuckle, Steering, Rh
[04.2000 - 05.2001] MCX10 W(ABS) |
43211-06091 |
— | ||
|
43211
|
43211
43211-06091
Knuckle, Steering, Rh
[05.2001 - 09.2003] MCX10 W(ABS) |
43211-06091 |
— | ||
|
43211K
|
43211K
90105-17001 Bolt (For Absorber Setting)[04.2000 - 08.2002] MCX10 OD=17 |
90105-17001 |
from US $6.05 |
||
|
43211K
|
43211K
90105-17008 Bolt (For Steering Knuckle Rh)[08.2002 - 09.2003] MCX10 OD=17 |
90105-17008 |
from US $4.06 |
||
|
43211L
|
43211L
90178-17001 Nut (For Steering Knuckle Rh)[08.2002 - 09.2003] MCX10 |
90178-17001 |
from US $1.56 |
||
|
43211L
|
43211L
90179-17001 Nut (For Absorber Setting)[04.2000 - 08.2002] MCX10 |
90179-17001 |
US $4.16 |
||
|
43212
|
43212
43212-06080
Knuckle, Steering, Lh
[04.2000 - 05.2001] MCX10..CONQ,VXI |
43212-06080 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-06081 Knuckle, Steering, Lh[04.2000 - 05.2001] MCX10..CONQ,VXI |
43212-06081 |
US $307.89 |
||
|
43212
|
43212
43212-06081 Knuckle, Steering, Lh[05.2001 - 09.2003] MCX10..CONQ,VXI |
43212-06081 |
US $307.89 |
||
|
43212
|
43212
43212-06090
Knuckle, Steering, Lh
[04.2000 - 05.2001] MCX10 W(ABS) |
43212-06090 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-06091
Knuckle, Steering, Lh
[04.2000 - 05.2001] MCX10 W(ABS) |
43212-06091 |
— | ||
|
43212
|
43212
43212-06091
Knuckle, Steering, Lh
[05.2001 - 09.2003] MCX10 W(ABS) |
43212-06091 |
— | ||
|
43212D
|
43212D
90105-17001 Bolt (For Absorber Setting)[04.2000 - 08.2002] MCX10 OD=17 |
90105-17001 |
from US $6.05 |
||
|
43212D
|
43212D
90105-17008 Bolt (For Steering Knuckle Rh)[08.2002 - 09.2003] MCX10 OD=17 |
90105-17008 |
from US $4.06 |
||
|
43212E
|
43212E
90178-17001 Nut (For Steering Knuckle Rh)[08.2002 - 09.2003] MCX10 |
90178-17001 |
from US $1.56 |
||
|
43212E
|
43212E
90179-17001 Nut (For Absorber Setting)[04.2000 - 08.2002] MCX10 |
90179-17001 |
US $4.16 |
||
|
43330K
|
43330K
43330-09140
Joint Assy, Lower Ball, Front Rh
[04.2000 - 09.2003] MCX10 |
43330-09140 |
— | ||
|
43330K
|
43330K
43330-39435 Joint Assy, Lower Ball, Front[09.2003 -] MCX10 |
43330-39435 |
from US $72.96 |
||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[04.2000 - 09.2003] MCX10 |
90171-14003 |
from US $1.37 |
||
|
43340A
|
43340A
43330-09140
Joint Assy, Lower Ball, Front Rh
[04.2000 - 09.2003] MCX10 |
43330-09140 |
— | ||
|
43340A
|
43340A
43330-39435 Joint Assy, Lower Ball, Front[09.2003 -] MCX10 |
43330-39435 |
from US $72.96 |
||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[04.2000 - 09.2003] MCX10 |
90171-14003 |
from US $1.37 |
||
|
48068
|
48068
48068-06060
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[04.2000 - 10.2002] MCX10 |
48068-06060 |
— | ||
|
48068
|
48068
48068-06090
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[10.2002 - 09.2003] MCX10 |
48068-06090 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-07030 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[10.2002 - 09.2003] MCX10 |
48068-07030 |
from US $216.65 |
||
|
48068A
|
48068A
90105-12122 Bolt (For Front Lower Ball Joint)[10.2002 - 09.2003] MCX10 NO.1 |
90105-12122 |
from US $1.93 |
||
|
48068A
|
48068A
90105-12216 Bolt(For Front Suspension Lower Arm)[04.2000 - 10.2002] MCX10 NO.1 |
90105-12216 |
US $4.16 |
||
|
48068A
|
48068A
90105-14081 Bolt(For Front Suspension Lower Arm)[04.2000 - 09.2003] MCX10 NO.2 |
90105-14081 |
US $5.07 |
||
|
48068A
|
48068A
90105-14084 Bolt(For Front Suspension Lower Arm)[04.2000 - 09.2003] MCX10 NO.3 |
90105-14084 |
US $6.60 |
||
|
48068C
|
48068C
90179-12052 Nut (For Front Lower Ball Joint Setting)[10.2002 - 09.2003] MCX10 BALL JOINT SIDE |
90179-12052 |
US $3.04 |
||
|
48068C
|
48068C
90179-12103 Nut(For Front Suspension Lower Arm)[04.2000 - 10.2002] MCX10 BALL JOINT SIDE |
90179-12103 |
from US $2.50 |
||
|
48068C
|
48068C
90179-14048 Nut(For Front Suspension Lower Arm)[04.2000 - 09.2003] MCX10 BODY SIDE |
90179-14048 |
US $2.89 |
||
|
48069
|
48069
48069-06060
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[04.2000 - 10.2002] MCX10 |
48069-06060 |
— | ||
|
48069
|
48069
48069-06090
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[10.2002 - 09.2003] MCX10 |
48069-06090 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-07030 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[10.2002 - 09.2003] MCX10 |
48069-07030 |
from US $216.65 |
||
|
48655D
|
48655D
48655-06030 Bush, Front Lower Arm, No.2 RhFRONT LOWER ARM, NO.2 RH [04.2000 - 10.2002] MCX10 |
48655-06030 |
US $34.52 |
||
|
48655D
|
48655D
48655-06060 Bush, Front Lower Arm, No.2 RhFRONT LOWER ARM, NO.2 RH [10.2002 - 09.2003] MCX10 |
48655-06060 |
US $27.46 |
||
|
48655E
|
48655E
48655-06030 Bush, Front Lower Arm, No.2 RhFRONT LOWER ARM, NO.2 RH [04.2000 - 10.2002] MCX10 |
48655-06030 |
US $34.52 |
||
|
48655E
|
48655E
48655-06060 Bush, Front Lower Arm, No.2 RhFRONT LOWER ARM, NO.2 RH [10.2002 - 09.2003] MCX10 |
48655-06060 |
US $27.46 |
||
|
48657A
|
48657A
48657-06030 Stopper, Front Lower Arm Bush[08.2002 - 09.2003] MCX10 |
48657-06030 |
US $10.86 |
||
| replacement | |||||
|
48657A
|
48657A
48657-33020 Stopper, Front Lower Arm Bush[08.2002 - 09.2003] MCX10 |
48657-33020 |
from US $11.36 |
||
|
48657A
|
48657A
48657-33020 Stopper, Front Lower Arm Bush[04.2000 - 08.2002] MCX10 |
48657-33020 |
from US $11.36 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.77 |
||
