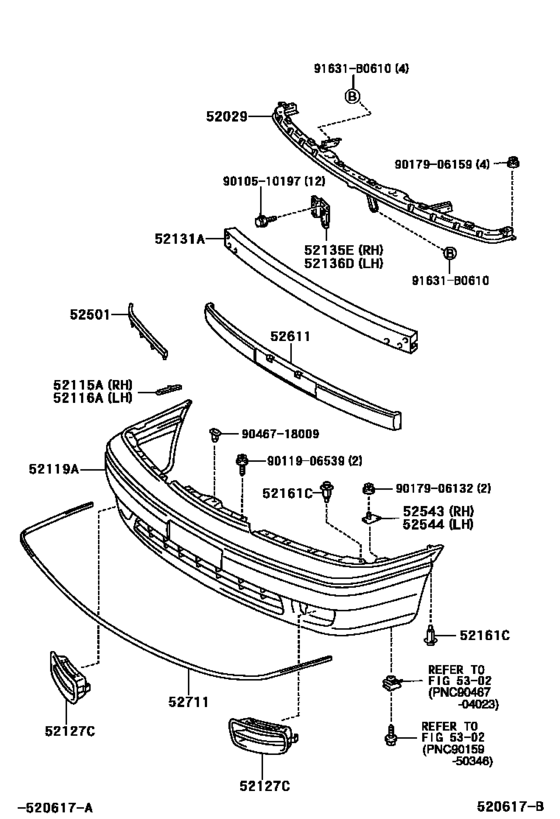

Front Bumper & Bumper Stay ([04.2000 - 09.2003] (0004-0309)) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-AC020 Reinforcement Sub-Assy, Front Bumper, Upper[04.2000 - 09.2003] MCX10 |
52029-AC020 |
US $87.36 |
||
|
52029
|
52029
52029-YF010
Reinforcement Sub-Assy, Front Bumper, Upper
[09.2003 -] MCX10 |
52029-YF010 |
— | ||
|
52115A
|
52115A
52115-41010 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [04.2000 - 09.2003] MCX10 |
52115-41010 |
US $9.03 |
||
|
52116A
|
52116A
52115-41010 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [04.2000 - 09.2003] MCX10 |
52115-41010 |
US $9.03 |
||
|
52119A
|
52119A
52119-YF040
Cover, Front Bumper
[09.2003 -] MCX10 |
52119-YF040 |
— | ||
|
52119A
|
52119A
52119-YF900
Cover, Front Bumper
[04.2000 - 09.2003] MCX10 |
52119-YF900 |
— | ||
|
52127C
|
52127C
52127-YF900
Cover, Front Bumper Hole
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI RH |
52127-YF900 |
— | ||
|
52127C
|
52127C
52128-YF900
Cover, Front Bumper Hole
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI LH |
52128-YF900 |
— | ||
|
52131A
|
52131A
52131-AC040 Reinforcement, Front Bumper[04.2000 - 09.2003] MCX10 |
52131-AC040 |
US $334.88 |
||
|
52135E
|
52135E
52135-YF010
Reinforcement, Front Bumper Arm Mounting, Rh
[04.2000 - 09.2003] MCX10 |
52135-YF010 |
— | ||
|
52136D
|
52136D
52136-YF010
Reinforcement, Front Bumper Arm Mounting, Lh
[04.2000 - 09.2003] MCX10 |
52136-YF010 |
— | ||
|
52161C
|
52161C
52161-16010 Clip[09.2003 -] MCX10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[09.2003 -] MCX10 |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[09.2003 -] MCX10 |
52161-02020 |
US $5.27 |
||
|
52501
|
52501
52511-41010 Filler Sub-Assy, Front BumperFRONT BUMPER [04.2000 - 09.2003] MCX10 |
52511-41010 |
US $7.13 |
||
|
52543
|
52543
52543-AC010 Seal, Front Bumper Side, Rh[04.2000 - 09.2003] MCX10 |
52543-AC010 |
US $12.23 |
||
|
52543
|
52543
52543-YF010
Seal, Front Bumper Side, Rh
[09.2003 -] MCX10 |
52543-YF010 |
— | ||
|
52544
|
52544
52544-AC010 Seal, Front Bumper Side, Lh[04.2000 - 09.2003] MCX10 |
52544-AC010 |
US $12.23 |
||
|
52544
|
52544
52544-YF010
Seal, Front Bumper Side, Lh
[09.2003 -] MCX10 |
52544-YF010 |
— | ||
|
52611
|
52611
52611-YF010
Absorber, Front Bumper Energy
[04.2000 - 09.2003] MCX10 |
52611-YF010 |
— | ||
|
52611
|
52611
52611-YF020
Absorber, Front Bumper Energy
[09.2003 -] MCX10 |
52611-YF020 |
— | ||
|
52711
|
52711
52711-YF010
Moulding, Front Bumper
[04.2000 - 09.2003] MCX10 |
52711-YF010 |
— | ||
|
52711
|
52711
52711-YF020
Moulding, Front Bumper
[09.2003 -] MCX10 |
52711-YF020 |
— | ||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9010510197
|
9010510197
90105-10197 BOLT |
90105-10197 |
US $0.96 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9046718009
|
9046718009
90467-18009 New Genuine Part |
90467-18009 |
US $4.08 |
||
