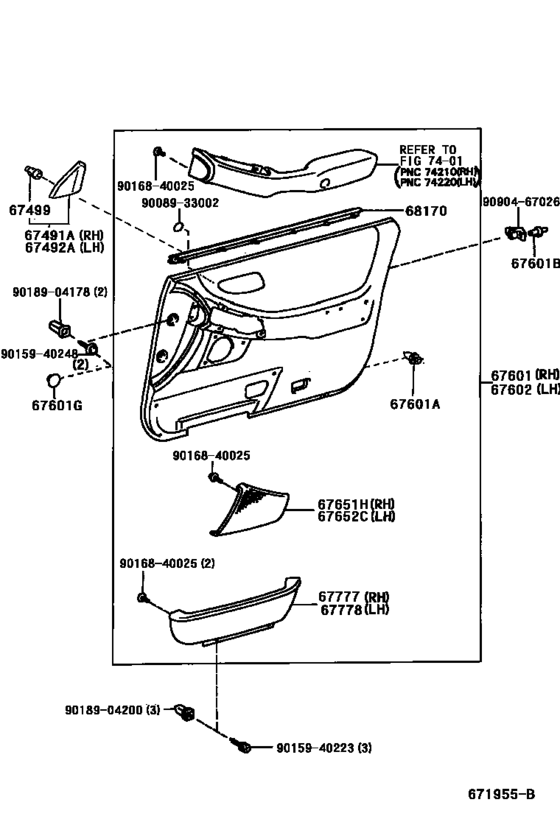

Front Door Panel & Glass ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-AC010 Garnish, Front Door Lower Frame Bracket, Rh[04.2000 - 09.2003] MCX10 |
67491-AC010 |
US $24.75 |
||
|
67492A
|
67492A
67492-AC010 Garnish, Front Door Lower Frame Bracket, Lh[04.2000 - 09.2003] MCX10 |
67492-AC010 |
US $24.75 |
||
|
67499
|
67499
67499-06010
Retainer, Front Door Lower Frame Bracket Garnish
[04.2000 - 09.2003] MCX10 |
67499-06010 |
— | ||
|
67601
|
67601
67610-YF010-B0
Board Sub-Assy, Front Door Trim, Rh
[04.2000 - 10.2001] MCX10..CONQ DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-YF010-B0 |
— | ||
|
67601
|
67601
67610-YF010-E0
Board Sub-Assy, Front Door Trim, Rh
[04.2000 - 10.2001] MCX10..CONQ DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-YF010-E0 |
— | ||
|
67601
|
67601
67610-YF060-B1
Board Sub-Assy, Front Door Trim, Rh
[10.2001 - 09.2003] MCX10..CONQ DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-YF060-B1 |
— | ||
|
67601
|
67601
67610-YF060-E1
Board Sub-Assy, Front Door Trim, Rh
[10.2001 - 09.2003] MCX10..CONQ DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-YF060-E1 |
— | ||
|
67601
|
67601
67610-YF070-B1
Board Sub-Assy, Front Door Trim, Rh
[09.2002 - 09.2003] MCX10..CONQ,CSX DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-YF070-B1 |
— | ||
|
67601
|
67601
67610-YF070-E1
Board Sub-Assy, Front Door Trim, Rh
[09.2002 - 09.2003] MCX10..CONQ,CSX DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67610-YF070-E1 |
— | ||
|
67601
|
67601
67610-YF090-B2
Board Sub-Assy, Front Door Trim, Rh
[09.2003 - 06.2005] MCX10..CONQ NEW ZEALAND SPEC & DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-YF090-B2 |
— | ||
|
67601
|
67601
67610-YF090-B3
Board Sub-Assy, Front Door Trim, Rh
[09.2003 - 06.2005] MCX10..CONQ NEW ZEALAND SPEC & DOOR TRIM=TYPE B-*104,XXXX,TRIM1# |
67610-YF090-B3 |
— | ||
|
67601
|
67601
67610-YF150-B0
Board Sub-Assy, Front Door Trim, Rh
[09.2003 - 06.2005] MCX10..CONQ STONE,TRIM1# |
67610-YF150-B0 |
— | ||
|
67601A
|
67601A
67771-28020 Retainer, Lower Back Finish Panel[04.2000 - 09.2003] MCX10 |
67771-28020 |
from US $1.56 |
||
|
67601B
|
67601B
90467-07066-E8 Clip(For Front Door Trim Board)[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
90467-07066-E8 |
US $1.60 |
||
|
67601B
|
67601B
90467-07066-P4 Clip(For Front Door Trim Board)[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
90467-07066-P4 |
from US $1.42 |
||
|
67601G
|
67601G
90950-01746-B4 Plug, Hole(For Front Door Trim Board)HOLE(FOR FRONT DOOR TRIM BOARD) [04.2000 - 09.2003] MCX10 STONE,TRIM1# |
90950-01746-B4 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
90950-01746-22 |
from US $2.72 |
||
|
67601G
|
67601G
90950-01746-E6 Plug, Hole(For Front Door Trim Board)[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
90950-01746-E6 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
90950-01746-22 |
from US $2.72 |
||
|
67602
|
67602
67620-YF010-B0
Board Sub-Assy, Front Door Trim, Lh
[04.2000 - 10.2001] MCX10..CONQ DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-YF010-B0 |
— | ||
|
67602
|
67602
67620-YF010-E0
Board Sub-Assy, Front Door Trim, Lh
[04.2000 - 10.2001] MCX10..CONQ DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-YF010-E0 |
— | ||
|
67602
|
67602
67620-YF060-B1
Board Sub-Assy, Front Door Trim, Lh
[10.2001 - 09.2003] MCX10..CONQ DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-YF060-B1 |
— | ||
|
67602
|
67602
67620-YF060-E1
Board Sub-Assy, Front Door Trim, Lh
[10.2001 - 09.2003] MCX10..CONQ DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-YF060-E1 |
— | ||
|
67602
|
67602
67620-YF070-B1
Board Sub-Assy, Front Door Trim, Lh
[09.2002 - 09.2003] MCX10..CONQ,CSX DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-YF070-B1 |
— | ||
|
67602
|
67602
67620-YF070-E1
Board Sub-Assy, Front Door Trim, Lh
[09.2002 - 09.2003] MCX10..CONQ,CSX DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67620-YF070-E1 |
— | ||
|
67602
|
67602
67620-YF090-B2
Board Sub-Assy, Front Door Trim, Lh
[09.2003 - 06.2005] MCX10..CONQ NEW ZEALAND SPEC & DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-YF090-B2 |
— | ||
|
67602
|
67602
67620-YF090-B3
Board Sub-Assy, Front Door Trim, Lh
[09.2003 - 06.2005] MCX10..CONQ NEW ZEALAND SPEC & DOOR TRIM=TYPE B-*104,XXXX,TRIM1# |
67620-YF090-B3 |
— | ||
|
67602
|
67602
67620-YF150-B0
Board Sub-Assy, Front Door Trim, Lh
[09.2003 - 06.2005] MCX10..CONQ STONE,TRIM1# |
67620-YF150-B0 |
— | ||
|
67651H
|
67651H
67651-YF010-B0
Grille, Speaker Door, Rh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI STONE,TRIM1# |
67651-YF010-B0 |
— | ||
|
67651H
|
67651H
67651-YF010-E0
Grille, Speaker Door, Rh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI FAWN,TRIM4# |
67651-YF010-E0 |
— | ||
|
67652C
|
67652C
67652-YF010-B0
Grille, Speaker Door, Lh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI STONE,TRIM1# |
67652-YF010-B0 |
— | ||
|
67652C
|
67652C
67652-YF010-E0
Grille, Speaker Door, Lh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI FAWN,TRIM4# |
67652-YF010-E0 |
— | ||
|
67777
|
67777
67770-YF010-B1
Pocket, Front Door Trim, Rh
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
67770-YF010-B1 |
— | ||
|
67777
|
67777
67770-YF010-E1
Pocket, Front Door Trim, Rh
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
67770-YF010-E1 |
— | ||
|
67778
|
67778
67780-YF010-B1
Pocket, Front Door Trim, Lh
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
67780-YF010-B1 |
— | ||
|
67778
|
67778
67780-YF010-E1
Pocket, Front Door Trim, Lh
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
67780-YF010-E1 |
— | ||
|
68170
|
68170
68170-AC010
Weatherstrip Assy, Front Door Glass, Inner
[04.2000 - 09.2003] MCX10 |
68170-AC010 |
— | ||
|
9008933002
|
9008933002
90089-33002
New Genuine Part
|
90089-33002 |
— | ||
|
9015940223
|
9015940223
90159-40223 SCREW WWASHER |
90159-40223 |
from US $0.74 |
||
|
9015940248
|
9015940248
90159-40248 New Genuine Part |
90159-40248 |
US $1.75 |
||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.44 |
||
|
9018904178
|
9018904178
90189-04178 New Genuine Part |
90189-04178 |
from US $2.08 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.80 |
||
|
9090467026
|
9090467026
90904-67026 CLIP |
90904-67026 |
US $1.92 |
||
