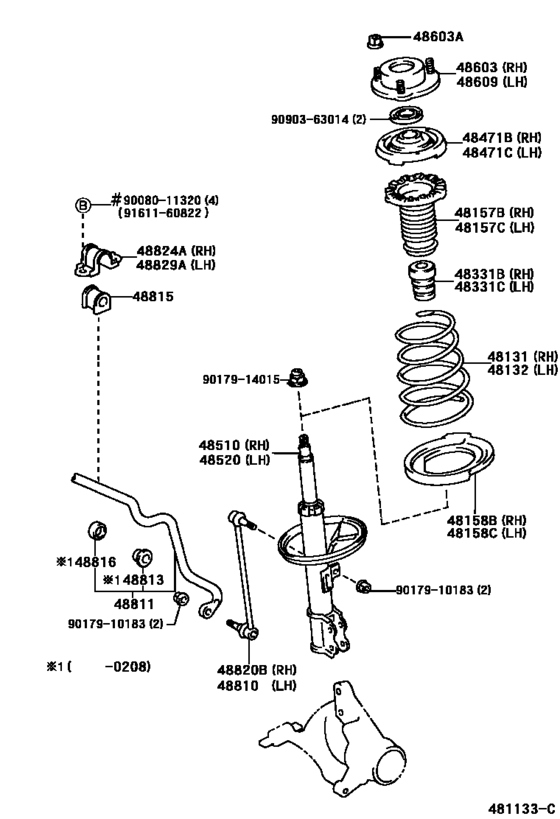

Front Spring & Shock Absorber ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-07050
Spring, Front Coil, Rh
[04.2000 - 09.2003] MCX10 |
48131-07050 |
— | ||
|
48132
|
48132
48131-07050
Spring, Front Coil, Rh
[04.2000 - 09.2003] MCX10 |
48131-07050 |
— | ||
|
48157B
|
48157B
48157-06030 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [04.2000 - 08.2002] MCX10 |
48157-06030 |
US $19.17 |
||
|
48157B
|
48157B
48157-06070 Insulator, Front Coil Spring, Upper Rh[08.2002 - 09.2003] MCX10 |
48157-06070 |
US $21.68 |
||
|
48157C
|
48157C
48157-06030 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [04.2000 - 08.2002] MCX10 |
48157-06030 |
US $19.17 |
||
|
48157C
|
48157C
48157-06070 Insulator, Front Coil Spring, Upper Rh[08.2002 - 09.2003] MCX10 |
48157-06070 |
US $21.68 |
||
|
48158B
|
48158B
48158-06030
Insulator, Front Coil Spring, Lower Rh
[04.2000 - 08.2002] MCX10 |
48158-06030 |
— | ||
|
48158B
|
48158B
48158-06040
Insulator, Front Coil Spring, Lower Rh
[08.2002 - 09.2003] MCX10 |
48158-06040 |
— | ||
|
48158C
|
48158C
48158-06030
Insulator, Front Coil Spring, Lower Rh
[04.2000 - 08.2002] MCX10 |
48158-06030 |
— | ||
|
48158C
|
48158C
48158-06040
Insulator, Front Coil Spring, Lower Rh
[08.2002 - 09.2003] MCX10 |
48158-06040 |
— | ||
|
48331B
|
48331B
48331-33020
Bumper, Front Spring
[04.2000 - 05.2003] MCX10 |
48331-33020 |
— | ||
| replacement | |||||
|
48331B
|
48331B
48331-33021 Bumper, Front Spring[04.2000 - 05.2003] MCX10 |
48331-33021 |
from US $12.38 |
||
|
48331B
|
48331B
48331-33021 Bumper, Front Spring[05.2003 - 09.2003] MCX10 |
48331-33021 |
from US $12.38 |
||
|
48331C
|
48331C
48331-33020
Bumper, Front Spring
[04.2000 - 05.2003] MCX10 |
48331-33020 |
— | ||
| replacement | |||||
|
48331C
|
48331C
48331-33021 Bumper, Front Spring[04.2000 - 05.2003] MCX10 |
48331-33021 |
from US $12.38 |
||
|
48331C
|
48331C
48331-33021 Bumper, Front Spring[05.2003 - 09.2003] MCX10 |
48331-33021 |
from US $12.38 |
||
|
48471B
|
48471B
48471-06020
Seat, Front Coil Spring, Upper Rh
[04.2000 - 09.2003] MCX10 |
48471-06020 |
— | ||
|
48471C
|
48471C
48471-06020
Seat, Front Coil Spring, Upper Rh
[04.2000 - 09.2003] MCX10 |
48471-06020 |
— | ||
|
48510
|
48510
48510-07070
Absorber Assy, Shock, Front Rh
[04.2000 - 09.2003] MCX10 MARK 48510-07070 |
48510-07070 |
— | ||
|
48520
|
48520
48520-07070
Absorber Assy, Shock, Front Lh
[04.2000 - 09.2003] MCX10 MARK 48520-07070 |
48520-07070 |
— | ||
|
48603
|
48603
48603-06020
Support Sub-Assy, Front Suspension, Rh
[04.2000 - 10.2001] MCX10 |
48603-06020 |
— | ||
| replacement | |||||
|
48603
|
48603
48603-06050 Support Sub-Assy, Front Suspension, Rh[04.2000 - 10.2001] MCX10 |
48603-06050 |
US $84.32 |
||
|
48603
|
48603
48603-06021
Support Sub-Assy, Front Suspension, Rh
[10.2001 - 08.2002] MCX10 |
48603-06021 |
— | ||
| replacement | |||||
|
48603
|
48603
48603-06050 Support Sub-Assy, Front Suspension, Rh[10.2001 - 08.2002] MCX10 |
48603-06050 |
US $84.32 |
||
|
48603
|
48603
48603-06040
Support Sub-Assy, Front Suspension, Rh
[08.2002 - 04.2003] MCX10 |
48603-06040 |
— | ||
| replacement | |||||
|
48603
|
48603
48603-06041 Support Sub-Assy, Front Suspension, Rh[08.2002 - 04.2003] MCX10 |
48603-06041 |
US $83.30 |
||
|
48603
|
48603
48603-06041 Support Sub-Assy, Front Suspension, Rh[04.2003 - 09.2003] MCX10 |
48603-06041 |
US $83.30 |
||
|
48603A
|
48603A
90178-10008 Nut (For Rear Axle Bearing Case Rh)[04.2000 - 09.2003] MCX10 |
90178-10008 |
US $1.60 |
||
|
48609
|
48609
48609-06070
Support Sub-Assy, Front Suspension, Lh
[04.2000 - 10.2001] MCX10 |
48609-06070 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-06120
Support Sub-Assy, Front Suspension, Lh
[04.2000 - 10.2001] MCX10 |
48609-06120 |
— | ||
|
48609
|
48609
48609-06071
Support Sub-Assy, Front Suspension, Lh
[10.2001 - 08.2002] MCX10 |
48609-06071 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-06120
Support Sub-Assy, Front Suspension, Lh
[10.2001 - 08.2002] MCX10 |
48609-06120 |
— | ||
|
48609
|
48609
48609-06110
Support Sub-Assy, Front Suspension, Lh
[08.2002 - 04.2003] MCX10 |
48609-06110 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-06111
Support Sub-Assy, Front Suspension, Lh
[08.2002 - 04.2003] MCX10 |
48609-06111 |
— | ||
|
48609
|
48609
48609-06111
Support Sub-Assy, Front Suspension, Lh
[04.2003 - 09.2003] MCX10 |
48609-06111 |
— | ||
|
48810
|
48810
48810-33010 Link Assy, Front Stabilizer, Lh[04.2000 - 09.2003] MCX10 |
48810-33010 |
from US $67.45 |
||
|
48811
|
48811
48811-06090
Bar, Stabilizer, Front
[04.2000 - 08.2002] MCX10 |
48811-06090 |
— | ||
|
48811
|
48811
48811-06130
Bar, Stabilizer, Front
[08.2002 - 09.2003] MCX10 |
48811-06130 |
— | ||
|
48813
|
48813
48813-33020 Stopper, Front Stabilizer[04.2000 - 08.2002] MCX10 |
48813-33020 |
from US $2.04 |
||
|
48815
|
48815
48815-06070
Bush, Front Stabilizer Bar, No.1
[04.2000 - 09.2003] MCX10 |
48815-06070 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-33050 Bush, Front Stabilizer Bar, No.1[04.2000 - 09.2003] MCX10 |
48815-33050 |
from US $8.59 |
||
|
48816
|
48816
48816-33010 Clamp, Front Stabilizer Stopper[04.2000 - 08.2002] MCX10 |
48816-33010 |
US $3.32 |
||
|
48820B
|
48820B
48820-33020 Link Assy, Front Stabilizer, Rh[04.2000 - 09.2003] MCX10 |
48820-33020 |
from US $73.03 |
||
|
48824A
|
48824A
48824-06050
Bracket, Stabilizer, Front
[08.2002 - 09.2003] MCX10 |
48824-06050 |
— | ||
| replacement | |||||
|
48824A
|
48824A
48824-33020 Bracket, Stabilizer, Front[08.2002 - 09.2003] MCX10 |
48824-33020 |
from US $4.51 |
||
|
48824A
|
48824A
48824-33020 Bracket, Stabilizer, Front[04.2000 - 08.2002] MCX10 |
48824-33020 |
from US $4.51 |
||
|
48829A
|
48829A
48824-06050
Bracket, Stabilizer, Front
[08.2002 - 09.2003] MCX10 |
48824-06050 |
— | ||
| replacement | |||||
|
48829A
|
48829A
48824-33020 Bracket, Stabilizer, Front[08.2002 - 09.2003] MCX10 |
48824-33020 |
from US $4.51 |
||
|
48829A
|
48829A
48824-33020 Bracket, Stabilizer, Front[04.2000 - 08.2002] MCX10 |
48824-33020 |
from US $4.51 |
||
|
9008011320
|
9008011320
90080-11320 BOLT WWASHER |
90080-11320 |
US $1.19 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.84 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
|
9090363014
|
9090363014
90903-63014 Bearing(For Front Suspension Support) |
90903-63014 |
from US $32.07 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
