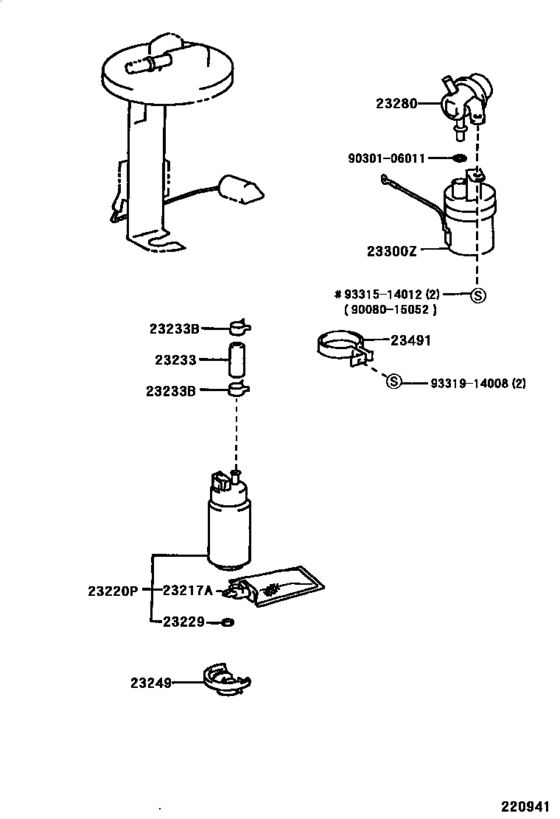

Fuel Injection System ([04.2000 - 08.2002] (0004-0208)) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-03020
Filter, Fuel Pump
[04.2000 - 08.2002] 1MZFE..MCX10 |
23217-03020 |
— | ||
|
23217A
|
23217A
23217-0C010 Filter, Fuel Pump[08.2002 - 09.2003] 1MZFE..MCX10 |
23217-0C010 |
from US $12.32 |
||
|
23220P
|
23220P
23220-20020 Pump Assy, Fuel[04.2000 - 08.2002] 1MZFE..MCX10 |
23220-20020 |
US $513.97 |
||
|
23220P
|
23220P
23221-20040 Pump, Fuel[08.2002 - 09.2003] 1MZFE..MCX10 |
23221-20040 |
from US $378.83 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[04.2000 - 09.2003] 1MZFE..MCX10 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[04.2000 - 09.2003] 1MZFE..MCX10 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[04.2000 - 08.2002] 1MZFE..MCX10 |
23239-16010 |
from US $1.87 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2000 - 08.2002] 1MZFE..MCX10 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[04.2000 - 08.2002] 1MZFE..MCX10 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-0D010
Rubber, Cushion(For Fuel Pump)
[03.2004 - 06.2005] 1MZFE..MCX10 |
23249-0D010 |
— | ||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[08.2002 - 09.2003] 1MZFE..MCX10 |
23249-46180 |
from US $14.70 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[04.2000 - 08.2002] 1MZFE..MCX10 |
23249-74610 |
from US $8.56 |
||
|
23280
|
23280
23280-20020 Regulator Assy, Fuel Pressure[04.2000 - 08.2002] 1MZFE..MCX10 |
23280-20020 |
US $127.55 |
||
|
23280
|
23280
23280-22010 Regulator Assy, Fuel Pressure[08.2002 - 09.2003] 1MZFE..MCX10 |
23280-22010 |
from US $58.54 |
||
|
23300Z
|
23300Z
23300-0D030
Filter Assy, Fuel
[03.2004 - 06.2005] 1MZFE..MCX10 |
23300-0D030 |
— | ||
|
23300Z
|
23300Z
23300-20050 Filter, Fuel(For Fuel Tank)[04.2000 - 08.2002] 1MZFE..MCX10 |
23300-20050 |
from US $58.68 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[08.2002 - 09.2003] 1MZFE..MCX10 |
23300-21010 |
from US $63.43 |
||
|
23491
|
23491
23491-74010 Clamp, Fuel Filter Earth[04.2000 - 08.2002] 1MZFE..MCX10 |
23491-74010 |
US $4.89 |
||
|
9008015052
|
9008015052
90080-15052 New Genuine Part |
90080-15052 |
US $0.73 |
||
|
9030106011
|
9030106011
90301-06011 Ring, O(For Fuel Pressure Regulator) |
90301-06011 |
US $3.14 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
