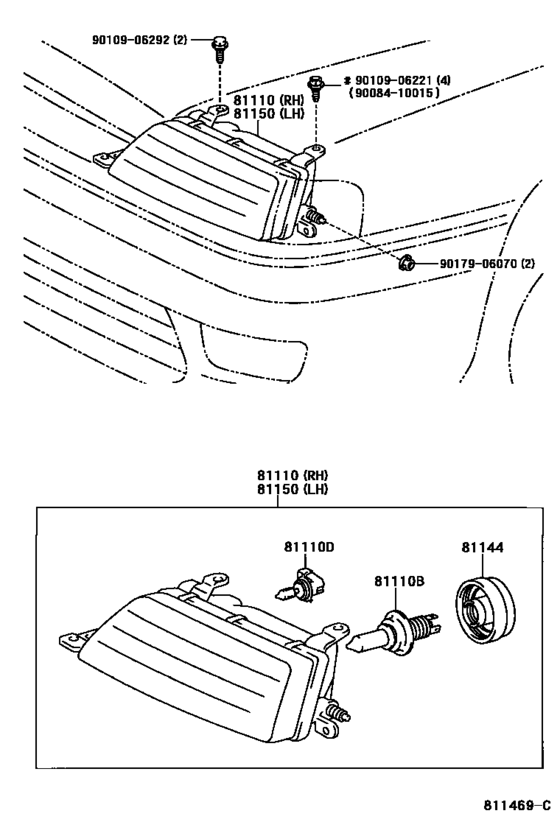

Headlamp ([04.2000 - 09.2003] (0004-0309)) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-YF010
Headlamp Assy, Rh
[04.2000 - 09.2003] MCX10 |
81110-YF010 |
— | ||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[09.2003 - 06.2005] MCX10 12V 60/55W,*HAL *WH |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.2003 - 06.2005] MCX10 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[04.2000 - 09.2003] MCX10 12V 60/55W,*HAL *WH |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [04.2000 - 09.2003] MCX10 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[04.2000 - 09.2003] MCX10 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[04.2000 - 09.2003] MCX10 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81110D
|
81110D
90981-8Y001 Bulb(For Headlamp, No.1)NO.1) [09.2003 - 06.2005] MCX10 12V 65W |
90981-8Y001 |
US $17.94 |
||
|
81144
|
81144
81139-8Y001
Cover, Headlamp, No.1
[04.2000 - 09.2003] MCX10 |
81139-8Y001 |
— | ||
|
81150
|
81150
81150-YF010
Headlamp Assy, Lh
[04.2000 - 09.2003] MCX10 |
81150-YF010 |
— | ||
|
9008410015
|
9008410015
90084-10015
BOLT
|
90084-10015 |
— | ||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.72 |
||
|
9010906292
|
9010906292
90109-06292 New Genuine Part |
90109-06292 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
