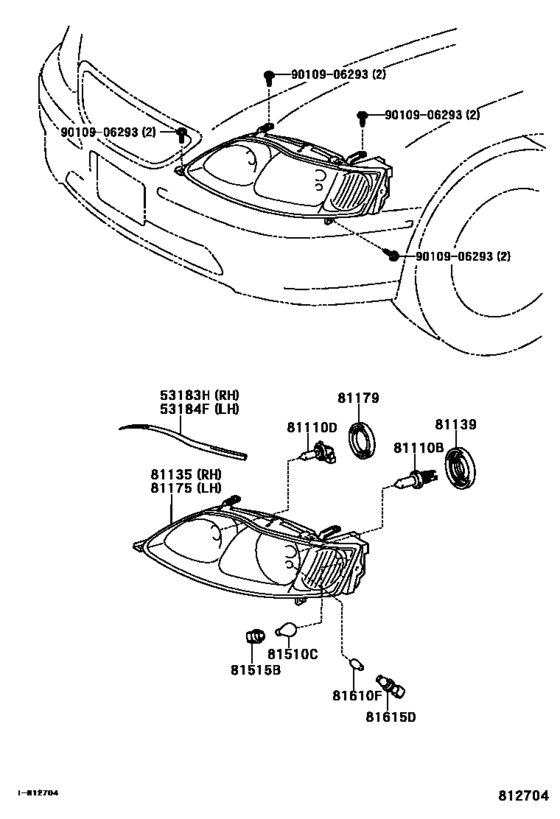

Headlamp ([09.2003 - ] (0309- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-8Y002
Seal, Headlamp Cover, Rh
[09.2003 - 06.2005] MCX10 |
53183-8Y002 |
— | ||
|
53184F
|
53184F
53184-8Y001 Seal, Headlamp Cover, LhHEADLAMP COVER, LH [09.2003 - 06.2005] MCX10 |
53184-8Y001 |
US $25.37 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[09.2003 - 06.2005] MCX10 12V 60/55W,*HAL *WH |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.2003 - 06.2005] MCX10 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[04.2000 - 09.2003] MCX10 12V 60/55W,*HAL *WH |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [04.2000 - 09.2003] MCX10 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[04.2000 - 09.2003] MCX10 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[04.2000 - 09.2003] MCX10 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81110D
|
81110D
90981-8Y001 Bulb(For Headlamp, No.1)NO.1) [09.2003 - 06.2005] MCX10 12V 65W |
90981-8Y001 |
US $17.94 |
||
|
81135
|
81135
81130-8Y001
Unit Assy, Headlamp, Rh
[09.2003 - 06.2005] MCX10 |
81130-8Y001 |
— | ||
|
81139
|
81139
81139-YC090 Cover, Headlamp SocketHEADLAMP [09.2003 - 06.2005] MCX10 |
81139-YC090 |
US $8.25 |
||
|
81175
|
81175
81170-8Y001
Unit Assy, Headlamp, Lh
[09.2003 - 06.2005] MCX10 |
81170-8Y001 |
— | ||
|
81179
|
81179
81179-YC090 Cover, Headlamp Socket[09.2003 - 06.2005] MCX10 |
81179-YC090 |
US $14.06 |
||
|
81510C
|
81510C
99132-8Y001 Bulb (For Front Turn Signal Lamp)FRONT TURN SIGNAL LAMP [09.2003 - 06.2005] MCX10 12V 21W,YELLOW |
99132-8Y001 |
US $3.49 |
||
|
81515B
|
81515B
81515-8Y002 Socket, Front Turn Signal LampFRONT TURN SIGNAL LAMP [09.2003 - 06.2005] MCX10 |
81515-8Y002 |
US $14.35 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[09.2003 - 06.2005] MCX10 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[09.2003 - 06.2005] MCX10 12V 5W |
90080-81053 |
US $1.15 |
||
|
81615D
|
81615D
90069-81043 Socket, Clearance LampCLEARANCE LAMP [09.2003 - 06.2005] MCX10 |
90069-81043 |
US $20.09 |
||
|
9010906293
|
9010906293
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.72 |
||
