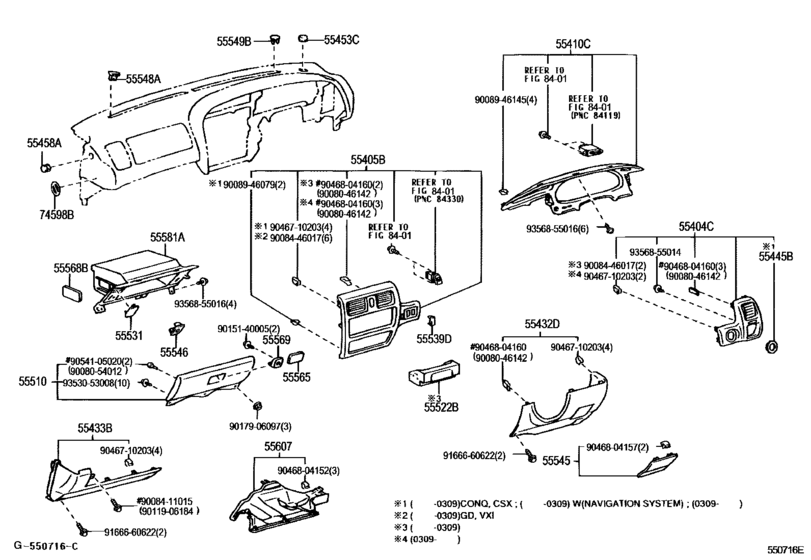

Instrument Panel & Glove Compartment ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55404C
|
55404C
55404-YF010-B0
Panel Sub-Assy, Instrument Cluster Finish, No.2
[04.2000 - 09.2003] MCX10..CONQ,CSX DK. STONE,TRIM1# |
55404-YF010-B0 |
— | ||
|
55404C
|
55404C
55404-YF010-E0
Panel Sub-Assy, Instrument Cluster Finish, No.2
[04.2000 - 09.2003] MCX10..CONQ,CSX SANDAL WOOD,TRIM4# |
55404-YF010-E0 |
— | ||
|
55404C
|
55404C
55404-YF020
Panel Sub-Assy, Instrument Cluster Finish, No.2
[09.2003 -] MCX10..CONQ,CSX |
55404-YF020 |
— | ||
|
55405B
|
55405B
55405-YF010-B0
Panel Sub-Assy, Instrument Cluster Finish, Center
[04.2000 - 09.2003] MCX10..CONQ,CSX DK. STONE,TRIM1# |
55405-YF010-B0 |
— | ||
|
55405B
|
55405B
55405-YF010-E0
Panel Sub-Assy, Instrument Cluster Finish, Center
[04.2000 - 09.2003] MCX10..CONQ,CSX SANDAL WOOD,TRIM4# |
55405-YF010-E0 |
— | ||
|
55405B
|
55405B
55405-YF030
Panel Sub-Assy, Instrument Cluster Finish, Center
[09.2003 -] MCX10..CONQ,CSX |
55405-YF030 |
— | ||
|
55410C
|
55410C
55410-YF010
Panel Assy, Instrument Cluster Finish
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI |
55410-YF010 |
— | ||
|
55432D
|
55432D
55480-YF010-B0
Panel, Instrument Panel Finish, Lower No.1
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55480-YF010-B0 |
— | ||
|
55432D
|
55432D
55480-YF010-E0
Panel, Instrument Panel Finish, Lower No.1
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55480-YF010-E0 |
— | ||
|
55433B
|
55433B
55433-YF010-B0
Panel, Instrument Panel Finish, Lower No.2
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55433-YF010-B0 |
— | ||
|
55433B
|
55433B
55433-YF010-E0
Panel, Instrument Panel Finish, Lower No.2
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55433-YF010-E0 |
— | ||
|
55445B
|
55445B
55445-YC010
Plate, Instrument Panel Finish
[04.2000 - 09.2003] MCX10..CONQ,CSX |
55445-YC010 |
— | ||
|
55453C
|
55453C
55453-YF010-B0
Cover, Instrument Panel Safety Pad, No.2
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI DK. STONE,TRIM1# |
55453-YF010-B0 |
— | ||
|
55453C
|
55453C
55453-YF010-E0
Cover, Instrument Panel Safety Pad, No.2
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI SANDAL WOOD,TRIM4# |
55453-YF010-E0 |
— | ||
|
55458A
|
55458A
55458-YF010-B0
Cap, Instrument Panel Safety Pad
[04.2000 - 09.2003] MCX10 DK. STONE,TRIM1# |
55458-YF010-B0 |
— | ||
|
55458A
|
55458A
55458-YF010-E0
Cap, Instrument Panel Safety Pad
[04.2000 - 09.2003] MCX10 SANDAL WOOD,TRIM4# |
55458-YF010-E0 |
— | ||
|
55510
|
55510
55550-YF010-B0
Door Assy, Glove Compartment
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55550-YF010-B0 |
— | ||
|
55510
|
55510
55550-YF010-E0
Door Assy, Glove Compartment
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55550-YF010-E0 |
— | ||
|
55522B
|
55522B
55522-YF010
Cover, Radio Tuner Opening
[04.2000 - 10.2001] MCX10..CONQ,CSX |
55522-YF010 |
— | ||
|
55531
|
55531
55531-YF010
Panel, Glove Compartment
[04.2000 - 09.2003] MCX10 |
55531-YF010 |
— | ||
|
55539D
|
55539D
55539-YC030-C0
Cover, Spare Switch Hole
[04.2000 - 09.2003] MCX10 BLACK,TRIM1#,4# |
55539-YC030-C0 |
— | ||
|
55545
|
55545
55545-YF010-B0
Cover, Fuse Box Opening
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55545-YF010-B0 |
— | ||
|
55545
|
55545
55545-YF010-E0
Cover, Fuse Box Opening
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55545-YF010-E0 |
— | ||
|
55546
|
55546
55546-30030 Cover, Spare Switch Hole[04.2000 - 09.2003] MCX10..CONQ,CSX |
55546-30030 |
US $5.39 |
||
|
55548A
|
55548A
55548-YF010
Cover, Instrument Panel Hole
[04.2000 - 09.2003] MCX10 |
55548-YF010 |
— | ||
|
55549B
|
55549B
55549-YF010
Cover, Instrument Panel Hole, No.2
[04.2000 - 09.2003] MCX10..CONQ,CSX |
55549-YF010 |
— | ||
|
55565
|
55565
55565-22020-B6 Handle, Glove Compartment Door Lock[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55565-22020-B6 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55565-22020-C0 |
— | ||
|
55565
|
55565
55565-22020-E7 Handle, Glove Compartment Door Lock[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55565-22020-E7 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55565-22020-C0 |
— | ||
|
55568B
|
55568B
55568-YF010
Plate, Glove Compartment Door Finish
[04.2000 - 09.2003] MCX10 |
55568-YF010 |
— | ||
|
55569
|
55569
55569-22030-B6 Cover, Glove Compartment Door Lock[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55569-22030-B6 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
55569-22030-C0 |
— | ||
|
55569
|
55569
55569-22030-E7 Cover, Glove Compartment Door Lock[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55569-22030-E7 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
55569-22030-C0 |
— | ||
|
55581A
|
55581A
55581-YF010
Compartment, Glove
[04.2000 - 09.2003] MCX10 |
55581-YF010 |
— | ||
|
55607
|
55607
55607-YF010
Cover Sub-Assy, Instrument Panel Under, No.2
[04.2000 - 09.2003] MCX10 |
55607-YF010 |
— | ||
|
74598B
|
74598B
74598-30040 Label, Passenger Air Bag CautionPASSENGER AIR BAG CAUTION [04.2000 - 02.2002] MCX10 |
74598-30040 |
US $1.56 |
||
|
74598B
|
74598B
74598-YC010
Label, Driver & Passenger Air Bag Caution
[02.2002 - 09.2003] MCX10 |
74598-YC010 |
— | ||
|
9008046142
|
9008046142
90080-46142
New Genuine Part
|
90080-46142 |
— | ||
|
9008054012
|
9008054012
90080-54012
Cushion(For Glove Compartment Door)
|
90080-54012 |
— | ||
|
9008411015
|
9008411015
90084-11015
New Genuine Part
|
90084-11015 |
— | ||
|
9008446017
|
9008446017
90084-46017 Clip(For Roof Console Box) |
90084-46017 |
US $0.35 |
||
|
9008946079
|
9008946079
90089-46079
New Genuine Part
|
90089-46079 |
— | ||
|
9008946145
|
9008946145
90089-46145
Clip(For Console Box)
|
90089-46145 |
— | ||
|
9011906184
|
9011906184
90119-06184 New Genuine Part |
90119-06184 |
US $0.87 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.92 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $0.87 |
||
|
9166660622
|
9166660622
91666-60622 New Genuine Part |
91666-60622 |
US $1.75 |
||
| replacement | |||||
|
9166660622
|
9166660622
91661-60620 New Genuine Part |
91661-60620 |
US $2.18 |
||
|
9353053008
|
9353053008
93530-53008 New Genuine Part |
93530-53008 |
US $0.87 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
