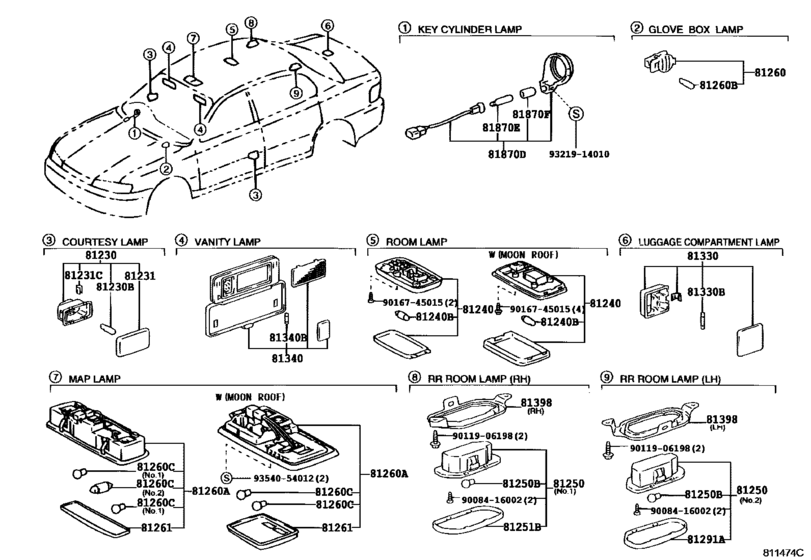

Interior Lamp ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-AC010 Lamp Assy, Courtesy[04.2000 - 09.2003] MCX10 |
81230-AC010 |
US $21.55 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[04.2000 - 09.2003] MCX10 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-AC010 Lens, Courtesy Lamp[04.2000 - 09.2003] MCX10 |
81231-AC010 |
US $4.80 |
||
|
81231C
|
81231C
48141-AC010 Clip, Courtesy Lamp[04.2000 - 09.2003] MCX10 |
48141-AC010 |
US $6.12 |
||
|
81240
|
81240
81240-YA020-B0
Lamp Assy, Room, No.1
[04.2000 - 09.2003] MCX10..CONQ STONE,TRIM1# |
81240-YA020-B0 |
— | ||
|
81240
|
81240
81240-YA020-E0
Lamp Assy, Room, No.1
[04.2000 - 09.2003] MCX10..CONQ FAWN,TRIM4# |
81240-YA020-E0 |
— | ||
|
81240
|
81240
81240-YC020-B0
Lamp Assy, Room, No.1
[04.2000 - 09.2003] MCX10 W(MOON ROOF),STONE,TRIM1# |
81240-YC020-B0 |
— | ||
|
81240
|
81240
81240-YC020-E0
Lamp Assy, Room, No.1
[04.2000 - 09.2003] MCX10 W(MOON ROOF),FAWN,TRIM4# |
81240-YC020-E0 |
— | ||
|
81240B
|
81240B
90089-81002 Bulb, Room Lamp, No.1ROOM LAMP, NO.1 [04.2000 - 09.2003] MCX10 12V 8W |
90089-81002 |
US $3.84 |
||
|
81250
|
81250
81250-AC010-B1
Lamp Assy, Room, No.2
[04.2000 - 09.2003] MCX10 STONE,TRIM1#,NO.1 |
81250-AC010-B1 |
— | ||
|
81250
|
81250
81250-AC010-E2
Lamp Assy, Room, No.2
[04.2000 - 09.2003] MCX10 FAWN,TRIM4#,NO.1 |
81250-AC010-E2 |
— | ||
|
81250
|
81250
81290-AC010-B1 Lamp Assy, Room, No.2[04.2000 - 09.2003] MCX10 STONE,TRIM1#,NO.2 |
81290-AC010-B1 |
US $44.99 |
||
|
81250
|
81250
81290-AC010-E2
Lamp Assy, Room, No.2
[04.2000 - 09.2003] MCX10 FAWN,TRIM4#,NO.2 |
81290-AC010-E2 |
— | ||
|
81250B
|
81250B
90981-12020 Bulb, Room Lamp, No.1[04.2000 - 09.2003] MCX10 12V 8W |
90981-12020 |
from US $2.24 |
||
|
81251B
|
81251B
81251-AC010-B1
Lens, Rear Room Lamp, Rh
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
81251-AC010-B1 |
— | ||
|
81251B
|
81251B
81251-AC010-E2
Lens, Rear Room Lamp, Rh
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
81251-AC010-E2 |
— | ||
|
81260
|
81260
81260-33010 Lamp Assy, Glove Box[04.2000 - 09.2003] MCX10 |
81260-33010 |
from US $12.58 |
||
|
81260A
|
81260A
81260-AC010-B1 Lamp Assy, Map[09.2003 - 06.2005] MCX10 STONE,TRIM1# |
81260-AC010-B1 |
US $119.39 |
||
|
81260A
|
81260A
81260-AC030-B1 Lamp Assy, MapMAP [04.2000 - 09.2003] MCX10 W(MOON ROOF),STONE,TRIM1# |
81260-AC030-B1 |
US $208.21 |
||
|
81260A
|
81260A
81260-AC030-E1 Lamp Assy, MapMAP [04.2000 - 09.2003] MCX10 W(MOON ROOF),FAWN,TRIM4# |
81260-AC030-E1 |
US $208.21 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[04.2000 - 09.2003] MCX10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
81260C
|
81260C
90084-98049 Bulb, Roof Console Box[04.2000 - 09.2003] MCX10 12V 8W,W(MOON ROOF),NO.1 |
90084-98049 |
US $5.24 |
||
|
81260C
|
81260C
90981-12020 Bulb, Room Lamp, No.1[09.2003 -] MCX10 12V 8W,NO.1 |
90981-12020 |
from US $2.24 |
||
|
81260C
|
81260C
90981-14004 Bulb, Room Lamp, No.1[09.2003 -] MCX10 12V 8W,NO.2 |
90981-14004 |
from US $2.28 |
||
|
81261
|
81261
81241-AC010 Lens And Cover, Map Lamp[04.2000 - 09.2003] MCX10 W(MOON ROOF) |
81241-AC010 |
US $180.54 |
||
|
81261
|
81261
81261-AC010 Lens And Cover, Map Lamp[09.2003 -] MCX10 |
81261-AC010 |
US $100.46 |
||
|
81291A
|
81291A
81291-AC010-B1
Lens, Rear Room Lamp, Lh
[04.2000 - 09.2003] MCX10 STONE,TRIM1# |
81291-AC010-B1 |
— | ||
|
81291A
|
81291A
81291-AC010-E2
Lens, Rear Room Lamp, Lh
[04.2000 - 09.2003] MCX10 FAWN,TRIM4# |
81291-AC010-E2 |
— | ||
|
81330
|
81330
81330-YC010
Lamp Assy, Luggage Compartment, No.1
[04.2000 - 09.2003] MCX10 |
81330-YC010 |
— | ||
|
81330B
|
81330B
90089-81005
Bulb, Luggage Compartment Lamp
[04.2000 - 09.2003] MCX10 12V 3W |
90089-81005 |
— | ||
|
81398
|
81398
81397-YF010
Bracket, Rear Loom Lamp
[04.2000 - 09.2003] MCX10 RH |
81397-YF010 |
— | ||
|
81398
|
81398
81398-YF010
Bracket, Rear Loom Lamp
[04.2000 - 09.2003] MCX10 LH |
81398-YF010 |
— | ||
|
81870D
|
81870D
81870-41030
Lamp Assy, Key Cylinder
[04.2000 - 09.2003] MCX10 |
81870-41030 |
— | ||
|
81870E
|
81870E
90981-11014 Bulb, Position Indicator Lamp[04.2000 - 09.2003] MCX10 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
81870F
|
81870F
84998-10080
Cap, Key Cylinder Lamp Bulb
[04.2000 - 09.2003] MCX10 |
84998-10080 |
— | ||
|
9008416002
|
9008416002
90084-16002 New Genuine Part |
90084-16002 |
US $1.46 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $1.75 |
||
|
9016745015
|
9016745015
90167-45015 New Genuine Part |
90167-45015 |
US $1.46 |
||
|
9321914010
|
9321914010
93219-14010 Screw |
93219-14010 |
US $1.12 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
