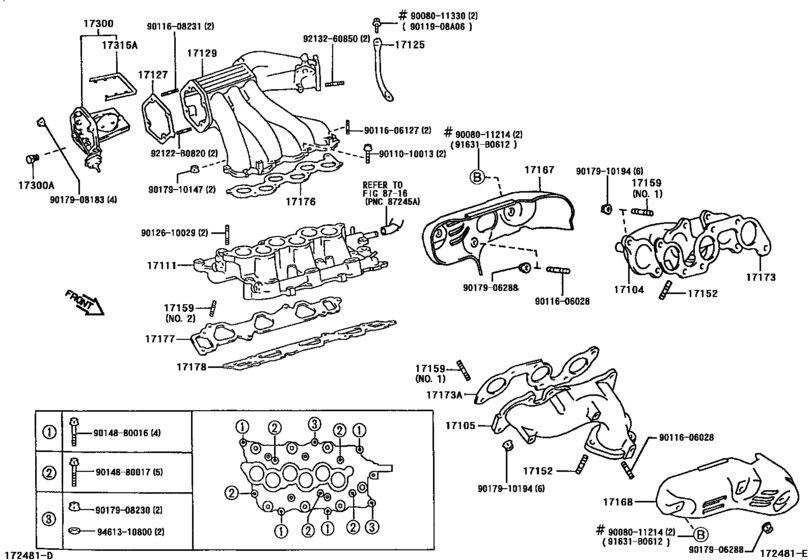

Manifold ([04.2000 - 09.2003] (0004-0309)) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17141-20020 Manifold Sub-Assy, Exhaust, Rh[04.2000 - 09.2003] 1MZFE..MCX10 |
17141-20020 |
US $292.66 |
||
|
17104
|
17104
17141-20050 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [09.2003 -] 1MZFE..MCX10 |
17141-20050 |
US $292.66 |
||
|
17105
|
17105
17142-20020 Manifold Sub-Assy, Exhaust, Lh[04.2000 - 09.2003] 1MZFE..MCX10 |
17142-20020 |
US $292.66 |
||
|
17105
|
17105
17142-20050 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [09.2003 -] 1MZFE..MCX10 |
17142-20050 |
from US $275.69 |
||
|
17111
|
17111
17101-0A040
Manifold, Intake
[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17101-0A040 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-20010 Manifold, Intake[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17101-20010 |
US $441.17 |
||
|
17111
|
17111
17101-20010 Manifold, Intake[04.2000 - 12.2000] 1MZFE..MCX10 |
17101-20010 |
US $441.17 |
||
|
17125
|
17125
17125-0A010
Stay, Surge Tank, No.1
[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17125-0A010 |
— | ||
|
17125
|
17125
17125-20010
Stay, Surge Tank, No.1
[04.2000 - 12.2000] 1MZFE..MCX10 |
17125-20010 |
— | ||
|
17127
|
17127
17127-0A010 Gasket, Surge Tank Cover[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17127-0A010 |
US $9.03 |
||
|
17127
|
17127
17127-62030 Gasket, Surge Tank Cover[04.2000 - 12.2000] 1MZFE..MCX10 |
17127-62030 |
from US $5.30 |
||
|
17129
|
17129
17109-0A020
Tank, Intake Air Surge
[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17109-0A020 |
— | ||
| replacement | |||||
|
17129
|
17129
17109-20060 Tank, Intake Air Surge[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17109-20060 |
US $703.25 |
||
|
17129
|
17129
17109-20060 Tank, Intake Air Surge[04.2000 - 12.2000] 1MZFE..MCX10 |
17109-20060 |
US $703.25 |
||
|
17129
|
17129
17109-20090 Tank, Intake Air SurgeINTAKE AIR SURGE [09.2003 -] 1MZFE..MCX10 |
17109-20090 |
US $706.16 |
||
|
17152
|
17152
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)[09.2003 -] 1MZFE..MCX10 |
90116-10149 |
from US $2.11 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [04.2000 - 07.2001] 1MZFE..MCX10 NO.1 |
90116-10169 |
from US $1.44 |
||
|
17159
|
17159
90126-08013 Bolt, Stud(For Manifold To Cylinder Head)[04.2000 - 09.2003] 1MZFE..MCX10 NO.2 |
90126-08013 |
from US $3.39 |
||
|
17159
|
17159
90126-10030 Bolt, Stud(For Manifold To Cylinder Head)[07.2001 - 09.2003] 1MZFE..MCX10 NO.1 |
90126-10030 |
from US $2.57 |
||
|
17167
|
17167
17167-20020 Insulator, Exhaust Manifold Heat, No.1[04.2000 - 09.2003] 1MZFE..MCX10 |
17167-20020 |
US $41.64 |
||
|
17167
|
17167
17167-20050
Insulator, Exhaust Manifold Heat, No.1
[09.2003 -] 1MZFE..MCX10 |
17167-20050 |
— | ||
|
17168
|
17168
17168-20020
Insulator, Exhaust Manifold Heat, No.2
[04.2000 - 09.2003] 1MZFE..MCX10 |
17168-20020 |
— | ||
|
17168
|
17168
17168-20050 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [09.2003 -] 1MZFE..MCX10 |
17168-20050 |
US $60.13 |
||
|
17173
|
17173
17173-0A010 Gasket, Exhaust Manifold To Head[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17173-0A010 |
US $29.27 |
||
|
17173
|
17173
17173-20010 Gasket, Exhaust Manifold To Head[04.2000 - 12.2000] 1MZFE..MCX10 |
17173-20010 |
from US $23.36 |
||
|
17173A
|
17173A
17173-0A010 Gasket, Exhaust Manifold To Head[12.2000 - 09.2003] 1MZFE..MCX10 (L) |
17173-0A010 |
US $29.27 |
||
|
17173A
|
17173A
17173-20010 Gasket, Exhaust Manifold To Head[04.2000 - 12.2000] 1MZFE..MCX10 |
17173-20010 |
from US $23.36 |
||
|
17176
|
17176
17176-62030 Gasket, Air Surge Tank To Intake Manifold[04.2000 - 09.2003] 1MZFE..MCX10 |
17176-62030 |
from US $8.85 |
||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[04.2000 - 09.2003] 1MZFE..MCX10 |
17177-20020 |
from US $27.59 |
||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[04.2000 - 09.2003] 1MZFE..MCX10 |
17178-20020 |
from US $27.22 |
||
|
17300
|
17300
17300-20020 Valve Assy, Intake Air Control[04.2000 - 09.2003] 1MZFE..MCX10 |
17300-20020 |
US $416.42 |
||
|
17300A
|
17300A
90345-51006 Plug, W/head Taper Screw, No.2[04.2000 - 09.2003] 1MZFE..MCX10 |
90345-51006 |
from US $0.96 |
||
|
17315A
|
17315A
17315-62020 Gasket, Intake Air Control Valve[04.2000 - 09.2003] 1MZFE..MCX10 |
17315-62020 |
from US $4.33 |
||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
9011908A06
|
9011908A06
90119-08A06 BOLT WWASHER |
90119-08A06 |
US $2.08 |
||
|
9008011214
|
9008011214
90080-11214 New Genuine Part |
90080-11214 |
US $1.46 |
||
|
9008011330
|
9008011330
90080-11330
New Genuine Part
|
90080-11330 |
— | ||
|
9011010013
|
9011010013
90110-10013 BOLT HEXAGON SOCKET |
90110-10013 |
US $2.62 |
||
|
9011606028
|
9011606028
90116-06028 Bolt, Stud(For Exhaust Manifold, Rh) |
90116-06028 |
US $4.89 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011608231
|
9011608231
90116-08231 New Genuine Part |
90116-08231 |
US $3.20 |
||
|
9012610029
|
9012610029
90126-10029 New Genuine Part |
90126-10029 |
US $2.18 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.15 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.08 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910194
|
9017910194
90179-10194 NUT |
90179-10194 |
US $5.76 |
||
|
9213260850
|
9213260850
92132-60850
Bolt, Stud(For Manifold To Cylinder Head)
|
92132-60850 |
— | ||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
