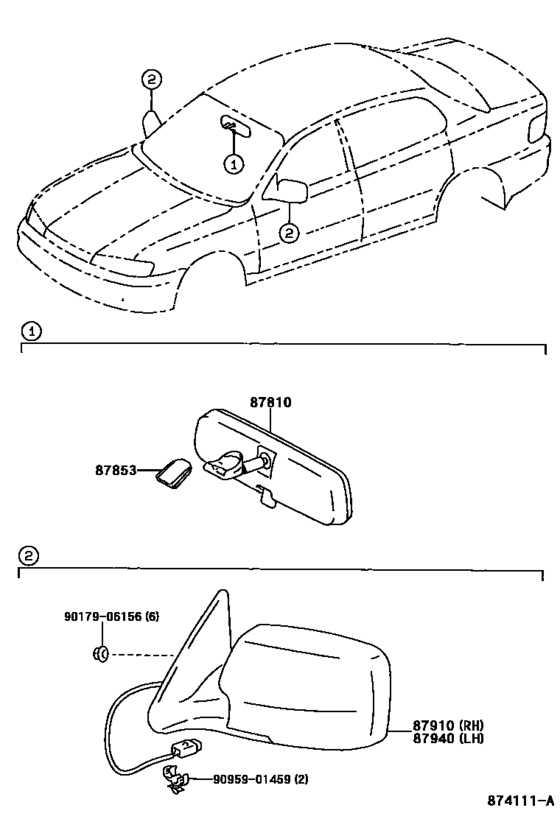

Mirror ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-AA010 Mirror Assy, Inner Rear ViewINNER REAR VIEW [04.2000 - 09.2003] MCX10 |
87810-AA010 |
US $135.41 |
||
|
87853
|
87853
87853-YC010
Base, Inner Rear View Mirror
[04.2000 - 09.2003] MCX10 |
87853-YC010 |
— | ||
|
87910
|
87910
87910-YF010-A0
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 DIAMOND WHITE,061 |
87910-YF010-A0 |
— | ||
|
87910
|
87910
87910-YF010-B0
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 SILVER M,173 |
87910-YF010-B0 |
— | ||
|
87910
|
87910
87910-YF010-D0
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10..CONQ,CSX,VXI DK. RED MC.,3N6 |
87910-YF010-D0 |
— | ||
|
87910
|
87910
87910-YF010-D2
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 DK.RED MC.,3N4 |
87910-YF010-D2 |
— | ||
|
87910
|
87910
87910-YF010-E0
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10..CONQ,CSX,VXI LT.BEIGE ME.OP.,4N5 |
87910-YF010-E0 |
— | ||
|
87910
|
87910
87910-YF010-F0
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 CHAMPAGNE ME.,583 |
87910-YF010-F0 |
— | ||
|
87910
|
87910
87910-YF010-G1
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 LT.GREEN ME.OP.,6P7 |
87910-YF010-G1 |
— | ||
|
87910
|
87910
87910-YF010-G2
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 MD.GREEN ME.,6P8 |
87910-YF010-G2 |
— | ||
|
87910
|
87910
87910-YF010-G3
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 DARK GREEN MC.,6R4 |
87910-YF010-G3 |
— | ||
|
87910
|
87910
87910-YF010-J2
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 DK.BLUE MC.,8N8 |
87910-YF010-J2 |
— | ||
|
87910
|
87910
87910-YF010-J3
Mirror Assy, Outer Rear View, Rh
[09.2002 - 09.2003] MCX10 DK.BLUE M.M.,8P4 |
87910-YF010-J3 |
— | ||
|
87910
|
87910
87910-YF020
Mirror Assy, Outer Rear View, Rh
[04.2000 - 09.2003] MCX10..CONQ |
87910-YF020 |
— | ||
|
87940
|
87940
87940-YF010-A0
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 DIAMOND WHITE,061 |
87940-YF010-A0 |
— | ||
|
87940
|
87940
87940-YF010-B0
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 SILVER M,173 |
87940-YF010-B0 |
— | ||
|
87940
|
87940
87940-YF010-D0
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10..CONQ,CSX,VXI DK. RED MC.,3N6 |
87940-YF010-D0 |
— | ||
|
87940
|
87940
87940-YF010-D2
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 DK.RED MC.,3N4 |
87940-YF010-D2 |
— | ||
|
87940
|
87940
87940-YF010-E0
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10..CONQ,CSX,VXI LT.BEIGE ME.OP.,4N5 |
87940-YF010-E0 |
— | ||
|
87940
|
87940
87940-YF010-F0
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 CHAMPAGNE ME.,583 |
87940-YF010-F0 |
— | ||
|
87940
|
87940
87940-YF010-G1
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 LT.GREEN ME.OP.,6P7 |
87940-YF010-G1 |
— | ||
|
87940
|
87940
87940-YF010-G2
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 MD.GREEN ME.,6P8 |
87940-YF010-G2 |
— | ||
|
87940
|
87940
87940-YF010-G3
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 DARK GREEN MC.,6R4 |
87940-YF010-G3 |
— | ||
|
87940
|
87940
87940-YF010-J2
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 DK.BLUE MC.,8N8 |
87940-YF010-J2 |
— | ||
|
87940
|
87940
87940-YF010-J3
Mirror Assy, Outer Rear View, Lh
[09.2002 - 09.2003] MCX10 DK.BLUE M.M.,8P4 |
87940-YF010-J3 |
— | ||
|
87940
|
87940
87940-YF020
Mirror Assy, Outer Rear View, Lh
[04.2000 - 09.2003] MCX10..CONQ |
87940-YF020 |
— | ||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9095901459
|
9095901459
90959-01459 New Genuine Part |
90959-01459 |
US $3.06 |
