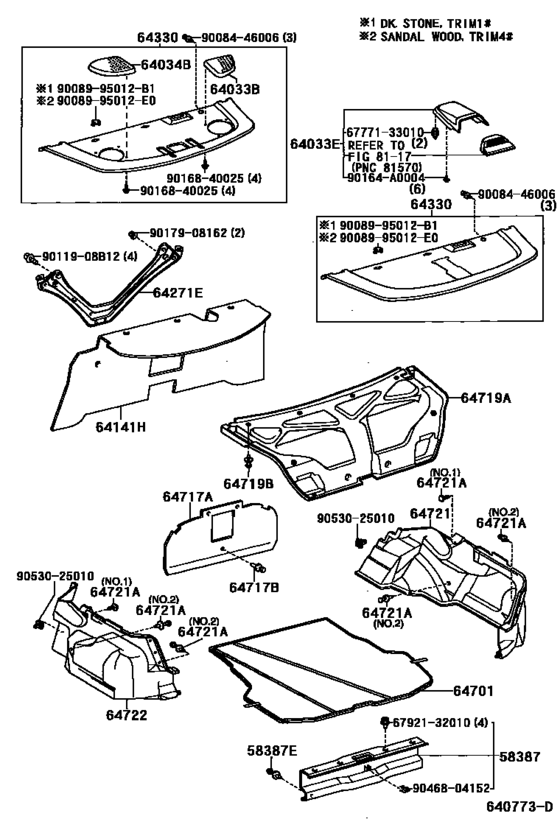

Package Tray Panel & Luggage Compartment Mat ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-YF010
Plate, Rear Floor Finish
[04.2000 - 09.2003] MCX10 |
58387-YF010 |
— | ||
|
58387E
|
58387E
90467-07138
Clip(For Rear Floor Finish Plate)
[04.2000 - 12.2001] MCX10 |
90467-07138 |
— | ||
| replacement | |||||
|
58387E
|
58387E
90467-07138-C0 Clip[04.2000 - 12.2001] MCX10 |
90467-07138-C0 |
from US $1.35 |
||
|
58387E
|
58387E
90467-08186-C0 Clip(For Front Bumper), No.1[12.2001 - 09.2003] MCX10 BLACK,TRIM1#,4# |
90467-08186-C0 |
from US $0.98 |
||
|
64033B
|
64033B
64383-YF010-B0
Grille Sub-Assy, Rear Speaker, Rh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI DK. STONE,TRIM1# |
64383-YF010-B0 |
— | ||
|
64033B
|
64033B
64383-YF010-E0
Grille Sub-Assy, Rear Speaker, Rh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI SANDAL WOOD,TRIM4# |
64383-YF010-E0 |
— | ||
|
64034B
|
64034B
64384-YF010-B0
Grille Sub-Assy, Rear Speaker, Lh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI DK. STONE,TRIM1# |
64384-YF010-B0 |
— | ||
|
64034B
|
64034B
64384-YF010-E0
Grille Sub-Assy, Rear Speaker, Lh
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI SANDAL WOOD,TRIM4# |
64384-YF010-E0 |
— | ||
|
64141H
|
64141H
64141-41010 Silencer, Back Panel, No.1BACK PANEL, NO.1 [04.2000 - 09.2003] MCX10 |
64141-41010 |
US $216.94 |
||
|
64271E
|
64271E
64241-07010 Panel, Room Partition[04.2000 - 09.2003] MCX10 |
64241-07010 |
US $147.06 |
||
|
64330
|
64330
64330-YF010-B0
Panel Assy, Package Tray Trim
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI DARK STONE,TRIM1# |
64330-YF010-B0 |
— | ||
|
64330
|
64330
64330-YF010-E0
Panel Assy, Package Tray Trim
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI SANDAL WOOD,TRIM4# |
64330-YF010-E0 |
— | ||
|
64701
|
64701
64701-YF010-C0
Mat Sub-Assy, Luggage Compartment
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI BLACK,TRIM1#,4# |
64701-YF010-C0 |
— | ||
|
64701
|
64701
64701-YF030-C0
Mat Sub-Assy, Luggage Compartment
[09.2003 - 06.2005] MCX10..CONQ,CSX W(NAVIGATION SYSTEM),BLACK,TRIM1#; MCX10..GD,VXI W(NAVIGATION SYSTEM),BLACK,TRIM1#,4# |
64701-YF030-C0 |
— | ||
|
64717A
|
64717A
64717-YF010-C0
Cover, Luggage Compartment Trim, Front
[04.2000 - 09.2003] MCX10 BLACK,TRIM1#,4# |
64717-YF010-C0 |
— | ||
|
64717B
|
64717B
90467-08150 Clip(For Luggage Compartment Trim Cover)[04.2000 - 09.2003] MCX10 |
90467-08150 |
from US $1.42 |
||
|
64719A
|
64719A
64719-YF010-C0
Cover, Luggage Compartment Door
[04.2000 - 09.2003] MCX10 BLACK,TRIM1#,4# |
64719-YF010-C0 |
— | ||
|
64719A
|
64719A
64719-YF020-C0
Cover, Luggage Compartment Door
[09.2003 - 06.2005] MCX10..CONQ,CSX BLACK,TRIM1#; MCX10..GD,VXI BLACK,TRIM1#,4# |
64719-YF020-C0 |
— | ||
|
64719B
|
64719B
90467-07168 Clip(For Rear Floor Finish Plate)[04.2000 - 12.2001] MCX10 |
90467-07168 |
US $1.76 |
||
| replacement | |||||
|
64719B
|
64719B
90467-07168-C1 Clip(For Rear Floor Finish Plate)[04.2000 - 12.2001] MCX10 |
90467-07168-C1 |
US $1.76 |
||
|
64719B
|
64719B
90467-08186-C0 Clip(For Front Bumper), No.1[12.2001 - 09.2003] MCX10 BLACK,TRIM1#,4# |
90467-08186-C0 |
from US $0.98 |
||
|
64721
|
64721
64721-YF010-C0
Cover, Luggage Compartment Trim, Inner Rh
[04.2000 - 09.2003] MCX10 BLACK,TRIM1#,4# |
64721-YF010-C0 |
— | ||
|
64721A
|
64721A
90467-07042-C0 Clip[04.2000 - 09.2003] MCX10 NO.1:REFER TO ILLUSTRATION,BLACK,TRIM1#,4# |
90467-07042-C0 |
US $1.12 |
||
| replacement | |||||
|
64721A
|
64721A
90467-06175 Clip(For Luggage Compartment Door)[04.2000 - 09.2003] MCX10 NO.1:REFER TO ILLUSTRATION,BLACK,TRIM1#,4# |
90467-06175 |
US $3.52 |
||
|
64721A
|
64721A
90467-07168 Clip(For Rear Floor Finish Plate)[04.2000 - 12.2001] MCX10 NO.2:REFER TO ILLUSTRATION |
90467-07168 |
US $1.76 |
||
| replacement | |||||
|
64721A
|
64721A
90467-07168-C1 Clip(For Rear Floor Finish Plate)[04.2000 - 12.2001] MCX10 NO.2:REFER TO ILLUSTRATION |
90467-07168-C1 |
US $1.76 |
||
|
64721A
|
64721A
90467-08186-C0 Clip(For Front Bumper), No.1[12.2001 - 09.2003] MCX10 NO.2:REFER TO ILLUSTRATION,BLACK,TRIM1#,4# |
90467-08186-C0 |
from US $0.98 |
||
|
64722
|
64722
64722-YF010-C0
Cover, Luggage Compartment Trim, Inner Lh
[04.2000 - 09.2003] MCX10 BLACK,TRIM1#,4# |
64722-YF010-C0 |
— | ||
|
64722
|
64722
64722-YF020-C0
Cover, Luggage Compartment Trim, Inner Lh
[09.2003 - 06.2005] MCX10..CONQ,CSX W(NAVIGATION SYSTEM),BLACK,TRIM1#; MCX10..GD,VXI W(NAVIGATION SYSTEM),BLACK,TRIM1#,4# |
64722-YF020-C0 |
— | ||
|
90164A0004
|
90164A0004
90164-A0004
New Genuine Part
|
90164-A0004 |
— | ||
|
9011908B12
|
9011908B12
90119-08B12 New Genuine Part |
90119-08B12 |
US $0.73 |
||
|
6777133010
|
6777133010
67771-33010 Weatherstrip, Back Door Trim, Rh |
67771-33010 |
US $2.04 |
||
|
6792132010
|
6792132010
67921-32010 Retainer, Cowl Side Trim |
67921-32010 |
US $2.56 |
||
|
9008446006
|
9008446006
90084-46006 New Genuine Part |
90084-46006 |
US $2.18 |
||
|
9008995012B1
|
9008995012B1
90089-95012-B1
New Genuine Part
|
90089-95012-B1 |
— | ||
|
9008995012E0
|
9008995012E0
90089-95012-E0
New Genuine Part
|
90089-95012-E0 |
— | ||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.44 |
||
|
9017908162
|
9017908162
90179-08162 New Genuine Part |
90179-08162 |
US $2.04 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9053025010
|
9053025010
90530-25010 Fastener, Hook |
90530-25010 |
from US $1.54 |
||
