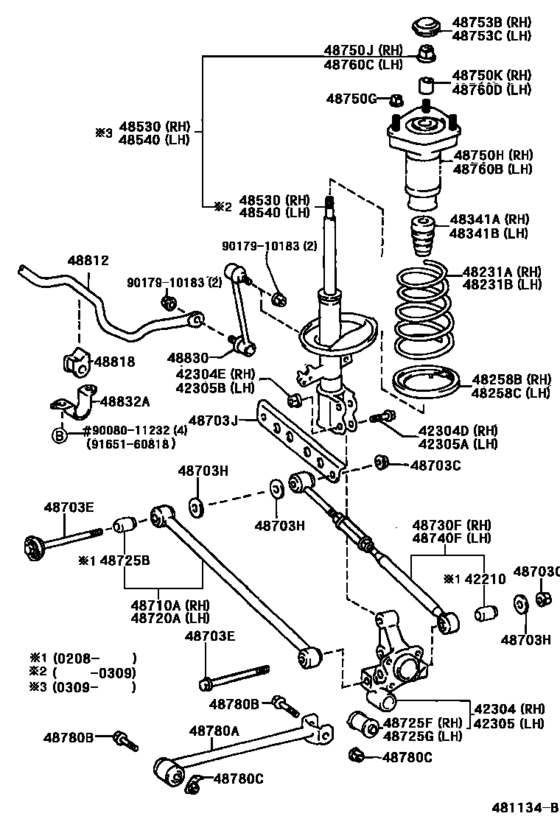

Rear Spring & Shock Absorber ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42210
|
42210
42210-20010 Bush, Rear Suspension Arm, No.1[08.2002 - 09.2003] MCX10 |
42210-20010 |
US $39.67 |
||
|
42304
|
42304
42304-06030
Carrier Sub-Assy, Rear Axle, Rh
[04.2000 - 09.2003] MCX10..CONQ,VXI |
42304-06030 |
— | ||
|
42304
|
42304
42304-06040
Carrier Sub-Assy, Rear Axle, Rh
[04.2000 - 09.2003] MCX10 W(ABS) |
42304-06040 |
— | ||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[04.2000 - 08.2002] MCX10 |
90105-15001 |
US $6.56 |
||
|
42304D
|
42304D
90901-05001 Bolt (For Rear Axle Carrier Rh)[08.2002 - 09.2003] MCX10 |
90901-05001 |
from US $6.24 |
||
|
42304E
|
42304E
90178-15001 Nut (For Rear Axle Carrier Rh)[08.2002 - 09.2003] MCX10 |
90178-15001 |
US $3.67 |
||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[04.2000 - 08.2002] MCX10 |
90179-15001 |
from US $3.14 |
||
|
42305
|
42305
42305-06030
Carrier Sub-Assy, Rear Axle, Lh
[04.2000 - 09.2003] MCX10..CONQ,VXI |
42305-06030 |
— | ||
|
42305
|
42305
42305-06040
Carrier Sub-Assy, Rear Axle, Lh
[04.2000 - 09.2003] MCX10 W(ABS) |
42305-06040 |
— | ||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[04.2000 - 08.2002] MCX10 |
90105-15001 |
US $6.56 |
||
|
42305A
|
42305A
90901-05001 Bolt (For Rear Axle Carrier Rh)[08.2002 - 09.2003] MCX10 |
90901-05001 |
from US $6.24 |
||
|
42305B
|
42305B
90178-15001 Nut (For Rear Axle Carrier Rh)[08.2002 - 09.2003] MCX10 |
90178-15001 |
US $3.67 |
||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[04.2000 - 08.2002] MCX10 |
90179-15001 |
from US $3.14 |
||
|
48231A
|
48231A
48231-07030
Spring, Coil, Rear Rh
[04.2000 - 09.2003] MCX10 |
48231-07030 |
— | ||
|
48231B
|
48231B
48231-07030
Spring, Coil, Rear Rh
[04.2000 - 09.2003] MCX10 |
48231-07030 |
— | ||
|
48258B
|
48258B
48258-06020 Insulator, Rear Coil Spring, Lower RhREAR COIL SPRING, LOWER RH [04.2000 - 09.2003] MCX10 |
48258-06020 |
US $17.26 |
||
|
48258C
|
48258C
48258-06020 Insulator, Rear Coil Spring, Lower RhREAR COIL SPRING, LOWER RH [04.2000 - 09.2003] MCX10 |
48258-06020 |
US $17.26 |
||
|
48341A
|
48341A
48341-32053
Bumper, Rear Spring, No.1 Rh
[04.2000 - 09.2003] MCX10 |
48341-32053 |
— | ||
| replacement | |||||
|
48341A
|
48341A
48341-32054 Bumper, Rear Spring, No.1[04.2000 - 09.2003] MCX10 |
48341-32054 |
from US $9.83 |
||
|
48341B
|
48341B
48341-32053
Bumper, Rear Spring, No.1 Rh
[04.2000 - 09.2003] MCX10 |
48341-32053 |
— | ||
| replacement | |||||
|
48341B
|
48341B
48341-32054 Bumper, Rear Spring, No.1[04.2000 - 09.2003] MCX10 |
48341-32054 |
from US $9.83 |
||
|
48530
|
48530
48530-07080
Absorber Assy, Shock, Rear Rh
[04.2000 - 09.2003] MCX10 MARK 48530-07080 |
48530-07080 |
— | ||
|
48530
|
48530
48530-80109
Absorber Assy, Shock, Rear Rh
[09.2003 -] MCX10 MARK 48530-07090 |
48530-80109 |
— | ||
|
48540
|
48540
48540-07080
Absorber Assy, Shock, Rear Lh
[04.2000 - 09.2003] MCX10 MARK 48540-07080 |
48540-07080 |
— | ||
|
48540
|
48540
48540-09460
Absorber Assy, Shock, Rear Lh
[09.2003 -] MCX10 MARK 48540-07090 |
48540-09460 |
— | ||
|
48703C
|
48703C
90179-14019 Nut[04.2000 - 09.2003] MCX10 |
90179-14019 |
from US $1.40 |
||
|
48703E
|
48703E
90901-09001 Bolt(For Rear Suspension Arm)[04.2000 - 09.2003] MCX10 *14-1.50PX260-26,BODY SIDE |
90901-09001 |
from US $20.62 |
||
|
48703E
|
48703E
90901-19001 Bolt(For Rear Suspension Arm)[04.2000 - 09.2003] MCX10 *14-1.50PX260-26,CARRIER SIDE |
90901-19001 |
from US $17.82 |
||
|
48703H
|
48703H
90201-14017 Washer(For Rear Suspension Arm)[04.2000 - 09.2003] MCX10 |
90201-14017 |
from US $3.22 |
||
|
48703J
|
48703J
48715-06020
Washer, No.2(For Rear Suspension Arm)
[08.2002 - 09.2003] MCX10 |
48715-06020 |
— | ||
|
48703J
|
48703J
48715-33020 Washer, No.2(For Rear Suspension Arm)[04.2000 - 08.2002] MCX10 |
48715-33020 |
US $11.53 |
||
|
48710A
|
48710A
48710-06030
Arm Assy, Rear Suspension, No.1 Rh
[08.2002 - 09.2003] MCX10 |
48710-06030 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[08.2002 - 09.2003] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48710A
|
48710A
48710-33050
Arm Assy, Rear Suspension, No.1 Rh
[04.2000 - 09.2001] MCX10 |
48710-33050 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[04.2000 - 09.2001] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48710A
|
48710A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[09.2001 - 08.2002] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48720A
|
48720A
48710-06030
Arm Assy, Rear Suspension, No.1 Rh
[08.2002 - 09.2003] MCX10 |
48710-06030 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[08.2002 - 09.2003] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48720A
|
48720A
48710-33050
Arm Assy, Rear Suspension, No.1 Rh
[04.2000 - 09.2001] MCX10 |
48710-33050 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[04.2000 - 09.2001] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48720A
|
48720A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[09.2001 - 08.2002] MCX10 |
48710-33051 |
from US $108.33 |
||
|
48725B
|
48725B
42210-20010 Bush, Rear Suspension Arm, No.1[08.2002 - 09.2003] MCX10 |
42210-20010 |
US $39.67 |
||
|
48725F
|
48725F
48725-03010 Bush, Rear Axle Carrier, RhREAR AXLE CARRIER, RH [04.2000 - 09.2003] MCX10 |
48725-03010 |
US $27.32 |
||
|
48725G
|
48725G
48725-03010 Bush, Rear Axle Carrier, RhREAR AXLE CARRIER, RH [04.2000 - 09.2003] MCX10 |
48725-03010 |
US $27.32 |
||
|
48730F
|
48730F
48730-06030
Arm Assy, Rear Suspension, No.2 Rh
[08.2002 - 09.2003] MCX10 |
48730-06030 |
— | ||
| replacement | |||||
|
48730F
|
48730F
48730-33050 Arm Assy, Rear Suspension, No.2 Rh[08.2002 - 09.2003] MCX10 |
48730-33050 |
from US $131.04 |
||
|
48730F
|
48730F
48730-33050 Arm Assy, Rear Suspension, No.2 Rh[04.2000 - 08.2002] MCX10 |
48730-33050 |
from US $131.04 |
||
|
48740F
|
48740F
48740-06020
Arm Assy, Rear Suspension, No.2 Lh
[08.2002 - 09.2003] MCX10 |
48740-06020 |
— | ||
| replacement | |||||
|
48740F
|
48740F
48740-33060 Arm Assy, Rear Suspension, No.2 Lh[08.2002 - 09.2003] MCX10 |
48740-33060 |
from US $131.04 |
||
|
48740F
|
48740F
48740-33060 Arm Assy, Rear Suspension, No.2 Lh[04.2000 - 08.2002] MCX10 |
48740-33060 |
from US $131.04 |
||
|
48750G
|
48750G
90178-08007 Nut(For Rear Suspension Support)[08.2002 - 09.2003] MCX10 |
90178-08007 |
from US $0.96 |
||
|
48750G
|
48750G
90179-08122 Nut(For Rear Suspension Support)[04.2000 - 08.2002] MCX10 |
90179-08122 |
US $7.04 |
||
|
48750H
|
48750H
48750-06040
Support Assy, Rear Suspension, Rh
[04.2000 - 08.2002] MCX10 |
48750-06040 |
— | ||
|
48750H
|
48750H
48750-06080 Support Assy, Rear Suspension, RhREAR SUSPENSION, RH [08.2002 - 09.2003] MCX10 |
48750-06080 |
US $138.66 |
||
|
48750J
|
48750J
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[04.2000 - 08.2002] MCX10 |
90177-14001 |
from US $1.52 |
||
|
48750J
|
48750J
94182-11400 Nut(For Idler Arm Support)[08.2002 - 09.2003] MCX10 |
94182-11400 |
US $4.96 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[04.2000 - 09.2003] MCX10 |
90387-15027 |
from US $3.57 |
||
|
48753B
|
48753B
48753-06020
Cover, Rear Suspension Supoport, No.1 Rh
[08.2002 - 09.2003] MCX10 |
48753-06020 |
— | ||
|
48753B
|
48753B
48753-33010 Cover, Rear Suspension Supoport, No.1 Rh[04.2000 - 08.2002] MCX10 |
48753-33010 |
US $4.32 |
||
|
48753C
|
48753C
48753-06020
Cover, Rear Suspension Supoport, No.1 Rh
[08.2002 - 09.2003] MCX10 |
48753-06020 |
— | ||
|
48753C
|
48753C
48753-33010 Cover, Rear Suspension Supoport, No.1 Rh[04.2000 - 08.2002] MCX10 |
48753-33010 |
US $4.32 |
||
|
48760B
|
48760B
48760-06040 Support Assy Rear Suspension, LhLH [04.2000 - 08.2002] MCX10 |
48760-06040 |
US $120.90 |
||
|
48760B
|
48760B
48760-06080
Support Assy Rear Suspension, Lh
[08.2002 - 09.2003] MCX10 |
48760-06080 |
— | ||
|
48760C
|
48760C
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[04.2000 - 08.2002] MCX10 |
90177-14001 |
from US $1.52 |
||
|
48760C
|
48760C
94182-11400 Nut(For Idler Arm Support)[08.2002 - 09.2003] MCX10 |
94182-11400 |
US $4.96 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[04.2000 - 09.2003] MCX10 |
90387-15027 |
from US $3.57 |
||
|
48780A
|
48780A
48780-YC010 Rod Assy, Strut, RearSTRUT, REAR [04.2000 - 09.2003] MCX10 |
48780-YC010 |
US $146.91 |
||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[04.2000 - 09.2003] MCX10 |
90119-12131 |
from US $3.57 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[04.2000 - 09.2003] MCX10 |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90179-12063 Nut(For Rear Suspension Arm)[04.2000 - 09.2003] MCX10 BODY SIDE |
90179-12063 |
from US $1.95 |
||
|
48780C
|
48780C
90179-12091 Nut(For Front Suspension Lower Arm)[04.2000 - 09.2003] MCX10 CARRIER SIDE |
90179-12091 |
from US $1.17 |
||
|
48812
|
48812
48812-YC050
Bar, Stabilizer, Rear
[04.2000 - 08.2002] MCX10 |
48812-YC050 |
— | ||
|
48812
|
48812
48812-YC051
Bar, Stabilizer, Rear
[08.2002 - 09.2003] MCX10 |
48812-YC051 |
— | ||
|
48818
|
48818
48818-06110
Bush, Stabilizer, Rear
[04.2000 - 09.2003] MCX10 |
48818-06110 |
— | ||
| replacement | |||||
|
48818
|
48818
48818-33050 Bush, Stabilizer, Rear[04.2000 - 09.2003] MCX10 |
48818-33050 |
from US $9.63 |
||
|
48830
|
48830
48830-33010 Link Assy, Rear Stabilizer[04.2000 - 09.2003] MCX10 |
48830-33010 |
from US $61.02 |
||
|
48832A
|
48832A
48832-06040
Bracket, Rear Stabilizer Bar, No.1
[08.2002 - 09.2003] MCX10 |
48832-06040 |
— | ||
|
48832A
|
48832A
48832-33020 Bracket, Rear Stabilizer Bar, No.1[04.2000 - 08.2002] MCX10 |
48832-33020 |
from US $7.29 |
||
|
9008011232
|
9008011232
90080-11232
New Genuine Part
|
90080-11232 |
— | ||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
