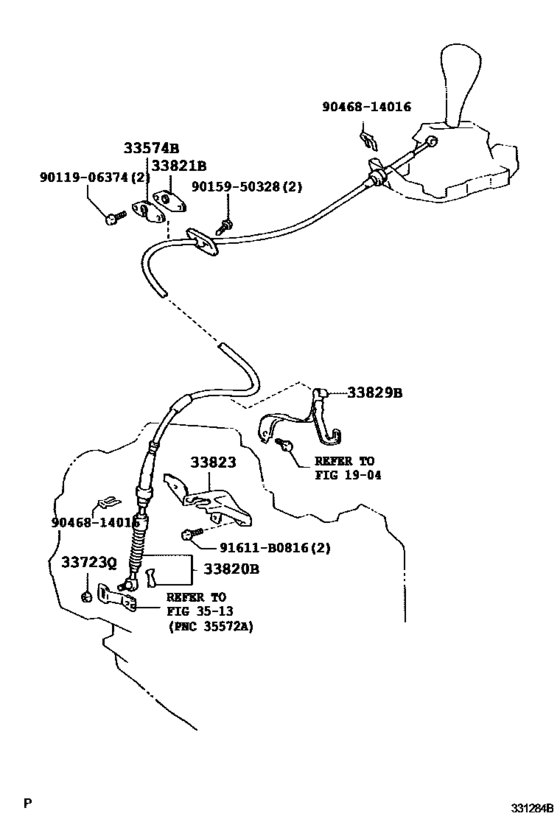

Shift Lever & Retainer ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574B
|
33574B
33574-33030 Retainer, Shift Cable Grommet, No.2[04.2000 - 09.2003] MCX10 |
33574-33030 |
US $6.84 |
||
|
33723Q
|
33723Q
90179-08054 Nut (For Connecting Rod Swivel)[04.2000 - 09.2003] MCX10 |
90179-08054 |
US $1.60 |
||
|
33820B
|
33820B
33820-YC050
Cable Assy, Transmission Control
[04.2000 - 09.2003] MCX10 |
33820-YC050 |
— | ||
|
33821B
|
33821B
33577-33010 Grommet, No.2 (For Transmission Control Cable)[04.2000 - 09.2003] MCX10 |
33577-33010 |
US $7.72 |
||
|
33823
|
33823
33823-33030
Bracket, Transmission Control Cable, No.1
[04.2000 - 09.2003] MCX10 |
33823-33030 |
— | ||
|
33829B
|
33829B
33829-33020
Bracket, Transmission Control Cable, No.3
[04.2000 - 09.2003] MCX10 |
33829-33020 |
— | ||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9015950328
|
9015950328
90159-50328 New Genuine Part |
90159-50328 |
US $0.96 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
