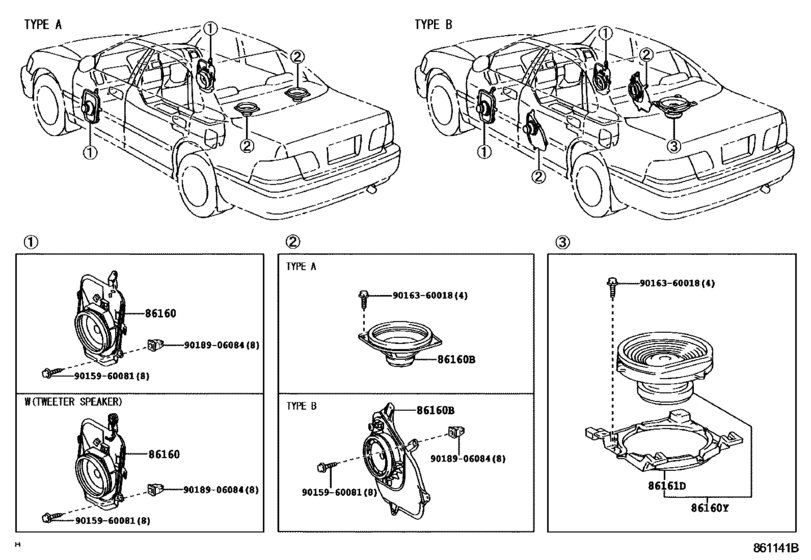

Speaker ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-YF010
Speaker Assy, Front No.1
[04.2000 - 09.2003] MCX10..CONQ RH |
86160-YF010 |
— | ||
|
86160
|
86160
86160-YF020
Speaker Assy, Front No.1
[04.2000 - 09.2003] MCX10..CONQ LH |
86160-YF020 |
— | ||
|
86160
|
86160
86160-YF030
Speaker Assy, Front No.1
[09.2002 - 09.2003] MCX10 W(TWEETER SPEAKER),RH |
86160-YF030 |
— | ||
|
86160
|
86160
86160-YF040
Speaker Assy, Front No.1
[09.2002 - 09.2003] MCX10 W(TWEETER SPEAKER),LH |
86160-YF040 |
— | ||
|
86160B
|
86160B
86160-YF050
Speaker Assy, Rear
[04.2000 - 09.2003] MCX10..CONQ,CSX,VXI TYPE A:REFER TO ILLUSTRATION |
86160-YF050 |
— | ||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9016360018
|
9016360018
90163-60018 New Genuine Part |
90163-60018 |
US $0.73 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.76 |
