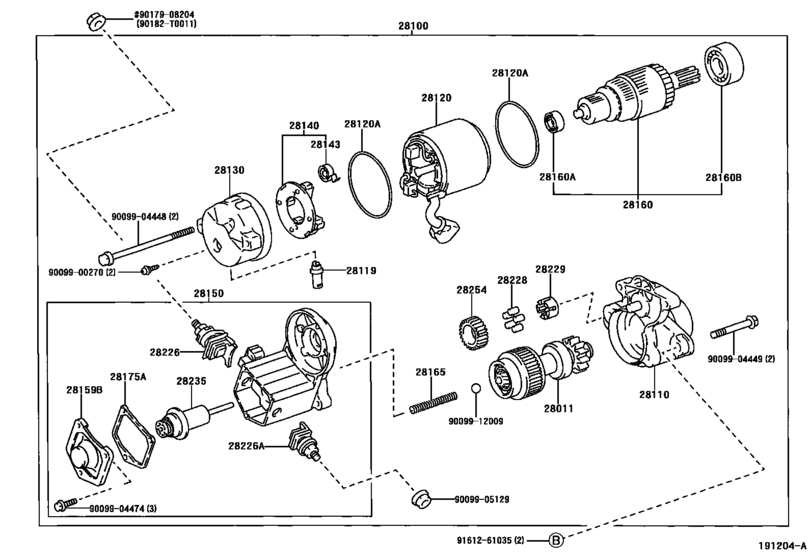

Starter ([04.2000 - ] 12V 1.4KW (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[04.2000 - 09.2003] 1MZFE..MCX10 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-74260 Starter Assy[04.2000 - 09.2003] 1MZFE..MCX10 12V 1.4KW |
28100-74260 |
US $1,415.23 |
||
|
28110
|
28110
28110-74270 Housing Assy, Starter Drive[04.2000 - 09.2003] 1MZFE..MCX10 |
28110-74270 |
US $58.24 |
||
|
28119
|
28119
28199-74110 Cover, Starter End Frame[04.2000 - 09.2003] 1MZFE..MCX10 |
28199-74110 |
US $2.97 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[04.2000 - 09.2003] 1MZFE..MCX10 |
28120-66040 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[04.2000 - 09.2003] 1MZFE..MCX10 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-74260
Frame Assy, Starter Commutator End
[04.2000 - 09.2003] 1MZFE..MCX10 |
28130-74260 |
— | ||
|
28140
|
28140
28140-74070
Holder Assy, Starter Brush
[04.2000 - 09.2003] 1MZFE..MCX10 |
28140-74070 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[04.2000 - 09.2003] 1MZFE..MCX10 |
90099-17112 |
— | ||
|
28150
|
28150
28150-74270 Switch Assy, Magnet Starter[04.2000 - 09.2003] 1MZFE..MCX10 |
28150-74270 |
US $215.49 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[04.2000 - 09.2003] 1MZFE..MCX10 |
28159-55050 |
— | ||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[04.2000 - 09.2003] 1MZFE..MCX10 |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[04.2000 - 09.2003] 1MZFE..MCX10 |
90099-10196 |
from US $6.12 |
||
|
28160B
|
28160B
90099-10197 Bearing, Starter Armature[04.2000 - 09.2003] 1MZFE..MCX10 |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[04.2000 - 09.2003] 1MZFE..MCX10 |
28165-74070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[04.2000 - 09.2003] 1MZFE..MCX10 |
28175-55050 |
US $1.92 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[04.2000 - 09.2003] 1MZFE..MCX10 |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[04.2000 - 09.2003] 1MZFE..MCX10 |
28226-64370 |
from US $6.90 |
||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[09.2003 -] 1MZFE..MCX10 |
28226-64370 |
from US $6.90 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[04.2000 - 09.2003] 1MZFE..MCX10 |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[04.2000 - 09.2003] 1MZFE..MCX10 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[04.2000 - 09.2003] 1MZFE..MCX10 |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-74130 Plunger, Magnet Switch[04.2000 - 09.2003] 1MZFE..MCX10 |
28235-74130 |
US $29.39 |
||
|
28254
|
28254
28254-74070
Pinion, Starter Drive
[04.2000 - 09.2003] 1MZFE..MCX10 |
28254-74070 |
— | ||
|
90182T0011
|
90182T0011
90182-T0011 New Genuine Part |
90182-T0011 |
US $1.46 |
||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
US $1.60 |
||
