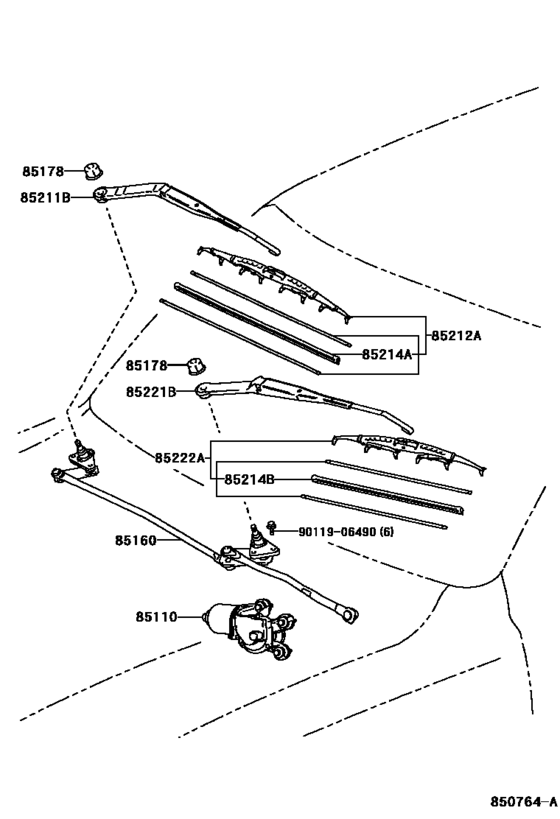

Windshield Wiper ([04.2000 - ] (0004- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-41010
Motor Assy, Windshield Wiper
[04.2000 - 09.2003] MCX10 |
85110-41010 |
— | ||
|
85160
|
85160
85150-YF010
Link Assy, Windshield Wiper
[04.2000 - 09.2003] MCX10 |
85150-YF010 |
— | ||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[04.2000 - 09.2003] MCX10 |
90176-10005 |
US $1.76 |
||
|
85211B
|
85211B
85211-YF010
Arm, Front Wiper, Rh
[04.2000 - 09.2003] MCX10 |
85211-YF010 |
— | ||
|
85212A
|
85212A
85212-YC030
Blade, Fr Wiper, Rh
[04.2000 - 09.2003] MCX10 |
85212-YC030 |
— | ||
|
85214A
|
85214A
85214-YC020 Rubber, Wiper, RhWIPER, RH [04.2000 - 08.2002] MCX10 |
85214-YC020 |
US $17.26 |
||
|
85214A
|
85214A
85214-YC900 Rubber, Wiper, RhWIPER, RH [08.2002 - 09.2003] MCX10 |
85214-YC900 |
US $11.27 |
||
|
85214B
|
85214B
85214-YC010 Rubber, Wiper, LhWIPER, LH [04.2000 - 08.2002] MCX10 |
85214-YC010 |
US $11.64 |
||
|
85214B
|
85214B
85214-YC900 Rubber, Wiper, RhWIPER, RH [08.2002 - 09.2003] MCX10 |
85214-YC900 |
US $11.27 |
||
|
85221B
|
85221B
85221-YF010
Arm, Front Wiper, Lh
[04.2000 - 09.2003] MCX10 |
85221-YF010 |
— | ||
|
85222A
|
85222A
85222-YC030
Blade, Fr Wiper, Lh
[04.2000 - 09.2003] MCX10 |
85222-YC030 |
— | ||
|
9011906490
|
9011906490
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
