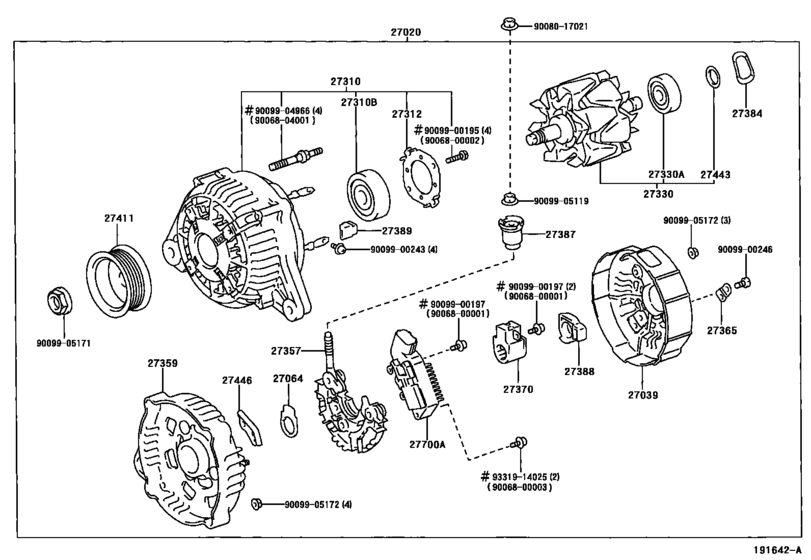

Alternator ([08.1999 - ] 12V 100A (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0A050 Alternator Assy[08.1999 - 06.2002] 1MZFE..MCX20 12V 100A |
27060-0A050 |
US $1,820 |
||
|
27039
|
27039
27039-0A010 Cover, Alternator Rear End[09.2000 - 06.2002] 1MZFE..MCX20 |
27039-0A010 |
US $20.97 |
||
|
27039
|
27039
27039-20060
Cover, Alternator Rear End
[08.1999 - 09.2000] 1MZFE..MCX20 |
27039-20060 |
— | ||
|
27064
|
27064
27064-0A020
Seal, Alternator Plate
[09.2000 - 06.2002] 1MZFE..MCX20 |
27064-0A020 |
— | ||
| replacement | |||||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[09.2000 - 06.2002] 1MZFE..MCX20 |
27064-42010 |
from US $2.10 |
||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1999 - 09.2000] 1MZFE..MCX20 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-0A030
Frame Assy, Drive End, Alternator
[09.2000 - 06.2002] 1MZFE..MCX20 |
27310-0A030 |
— | ||
| replacement | |||||
|
27310
|
27310
27310-20060
Frame Assy, Drive End, Alternator
[09.2000 - 06.2002] 1MZFE..MCX20 |
27310-20060 |
— | ||
|
27310
|
27310
27310-20060
Frame Assy, Drive End, Alternator
[08.1999 - 09.2000] 1MZFE..MCX20 |
27310-20060 |
— | ||
|
27310B
|
27310B
90068-10002
Bearing(For Alternator Drive End Frame)
[09.2000 - 06.2002] 1MZFE..MCX20 (L) |
90068-10002 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[09.2000 - 06.2002] 1MZFE..MCX20 (L) |
90099-10192 |
from US $15.03 |
||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[08.1999 - 09.2000] 1MZFE..MCX20 |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-0A020 Plate, Retainer[09.2000 - 06.2002] 1MZFE..MCX20 |
27312-0A020 |
US $6.55 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[08.1999 - 09.2000] 1MZFE..MCX20 |
27312-42010 |
— | ||
|
27330
|
27330
27330-0A050
Rotor Assy, Alternator
[09.2000 - 06.2002] 1MZFE..MCX20 |
27330-0A050 |
— | ||
|
27330
|
27330
27330-20010
Rotor Assy, Alternator
[08.1999 - 10.1999] 1MZFE..MCX20 |
27330-20010 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[08.1999 - 10.1999] 1MZFE..MCX20 |
27330-20070 |
— | ||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[10.1999 - 09.2000] 1MZFE..MCX20 |
27330-20070 |
— | ||
|
27330A
|
27330A
90068-10001
Bearing(For Alternator Rotor)
[09.2000 - 06.2002] 1MZFE..MCX20 |
90068-10001 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1999 - 09.2000] 1MZFE..MCX20 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-0A030
Holder, Alternator, W/rectifier
[09.2000 - 06.2002] 1MZFE..MCX20 |
27357-0A030 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-20060 Holder, Alternator, W/rectifier[09.2000 - 06.2002] 1MZFE..MCX20 |
27357-20060 |
from US $71.45 |
||
|
27357
|
27357
27357-20060 Holder, Alternator, W/rectifier[08.1999 - 09.2000] 1MZFE..MCX20 |
27357-20060 |
from US $71.45 |
||
|
27359
|
27359
27359-0A010 Frame, Alternator Rectifier End[09.2000 - 06.2002] 1MZFE..MCX20 |
27359-0A010 |
US $81.54 |
||
| replacement | |||||
|
27359
|
27359
27359-20060
Frame, Alternator Rectifier End
[09.2000 - 06.2002] 1MZFE..MCX20 |
27359-20060 |
— | ||
|
27359
|
27359
27359-20060
Frame, Alternator Rectifier End
[08.1999 - 09.2000] 1MZFE..MCX20 |
27359-20060 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[08.1999 - 06.2002] 1MZFE..MCX20 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1999 - 06.2002] 1MZFE..MCX20 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-0A020 Washer[09.2000 - 06.2002] 1MZFE..MCX20 |
27384-0A020 |
US $9.32 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.1999 - 09.2000] 1MZFE..MCX20 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42021 Insulator, Terminal[08.1999 - 06.2002] 1MZFE..MCX20 |
27387-42021 |
US $2.42 |
||
|
27388
|
27388
27388-0A020 Cover, Alternator Brush[09.2000 - 06.2002] 1MZFE..MCX20 |
27388-0A020 |
US $7.28 |
||
| replacement | |||||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[09.2000 - 06.2002] 1MZFE..MCX20 |
27388-42010 |
US $10.66 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1999 - 09.2000] 1MZFE..MCX20 |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-0A020 Insulator, Terminal[09.2000 - 06.2002] 1MZFE..MCX20 |
27389-0A020 |
US $4.37 |
||
| replacement | |||||
|
27389
|
27389
27389-42010
Insulator, Terminal
[09.2000 - 06.2002] 1MZFE..MCX20 |
27389-42010 |
— | ||
|
27389
|
27389
27389-42010
Insulator, Terminal
[08.1999 - 09.2000] 1MZFE..MCX20 |
27389-42010 |
— | ||
|
27411
|
27411
27411-0A050
Pulley, Alternator
[09.2000 - 06.2002] 1MZFE..MCX20 |
27411-0A050 |
— | ||
|
27411
|
27411
27411-46080
Pulley, Alternator
[08.1999 - 09.2000] 1MZFE..MCX20 |
27411-46080 |
— | ||
|
27443
|
27443
27443-0A020
Cover, Alternator Bearing
[09.2000 - 06.2002] 1MZFE..MCX20 |
27443-0A020 |
— | ||
| replacement | |||||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[09.2000 - 06.2002] 1MZFE..MCX20 |
27443-63020 |
from US $1.12 |
||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1999 - 09.2000] 1MZFE..MCX20 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-20020
Clip, Alternator Cord
[08.1999 - 06.2002] 1MZFE..MCX20 |
27446-20020 |
— | ||
|
27700A
|
27700A
27700-20050 Regulator Assy, Generator[08.1999 - 06.2002] 1MZFE..MCX20 |
27700-20050 |
US $262.08 |
||
|
9006800001
|
9006800001
90068-00001 New Genuine Part |
90068-00001 |
US $0.87 |
||
|
9006800002
|
9006800002
90068-00002 New Genuine Part |
90068-00002 |
US $1.16 |
||
|
9006800003
|
9006800003
90068-00003 New Genuine Part |
90068-00003 |
US $1.60 |
||
|
9006804001
|
9006804001
90068-04001 Bolt, Compressor, No.1 |
90068-04001 |
US $8.30 |
||
|
9008017021
|
9008017021
90080-17021
Nut (For Rear Wiper Arm Setting)
|
90080-17021 |
— | ||
| replacement | |||||
|
9008017021
|
9008017021
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
