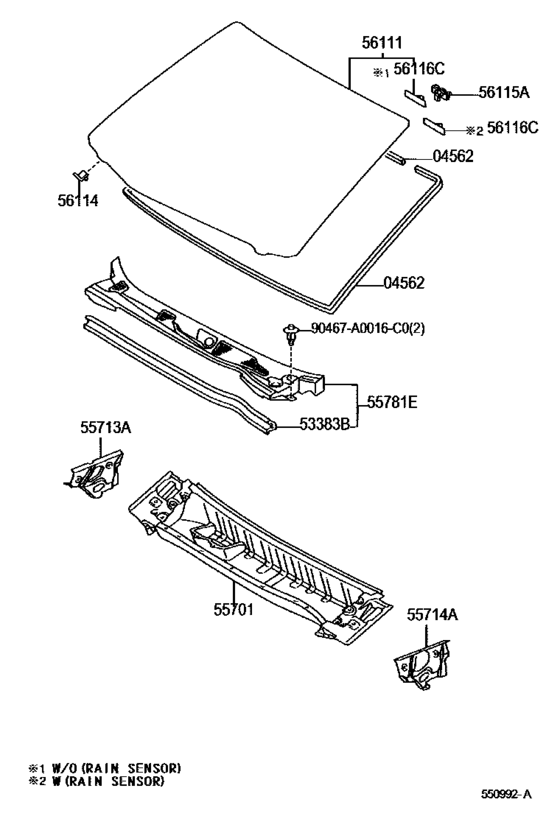

Cowl Panel & Windshield Glass ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
56117-AC010 Dam Kit, Windshield Glass[08.1999 - 02.2001] MCX20 L=3310 |
56117-AC010 |
US $19.07 |
||
| replacement | |||||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[08.1999 - 02.2001] MCX20 L=3310 |
90998-91004 |
US $14.88 |
||
|
04562
|
04562
56118-AC010 Dam Kit, Windshield Glass[08.1999 - 02.2001] MCX20 L=724 |
56118-AC010 |
US $8.30 |
||
| replacement | |||||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[08.1999 - 02.2001] MCX20 L=724 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91001
Dam Kit, Windshield Glass
[08.1999 - 04.2002] MCX20 L=3500 |
90998-91001 |
— | ||
| replacement | |||||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[08.1999 - 04.2002] MCX20 L=3500 |
90998-91004 |
US $14.88 |
||
|
04562
|
04562
90998-91002 Dam Kit, Windshield Glass[08.1999 - 04.2002] MCX20 L=750 |
90998-91002 |
US $4.66 |
||
| replacement | |||||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[08.1999 - 04.2002] MCX20 L=750 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[04.2002 - 06.2002] MCX20 L=750 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[04.2002 - 06.2002] MCX20 L=3500 |
90998-91004 |
US $14.88 |
||
|
53383B
|
53383B
53383-07010
Seal, Hood To Cowl Top
[08.1999 - 06.2002] MCX20 |
53383-07010 |
— | ||
|
55701
|
55701
55700-07040
Panel Sub-Assy, Cowl
[08.1999 - 06.2002] MCX20 |
55700-07040 |
— | ||
|
55713A
|
55713A
55713-07030 Panel, Cowl Top Side, Rh[08.1999 - 06.2002] MCX20 |
55713-07030 |
US $28.68 |
||
|
55714A
|
55714A
55714-07030 Panel, Cowl Top Side, Lh[08.1999 - 06.2002] MCX20 |
55714-07030 |
US $28.68 |
||
|
55781E
|
55781E
55781-07010
Louver Sub-Assy, Cowl Top Ventilator
[08.1999 - 06.2002] MCX20..USA |
55781-07010 |
— | ||
|
56111
|
56111
56101-AC110
Glass, Windshield
[08.1999 - 06.2002] MCX20 *UVCTT,T=4.7 |
56101-AC110 |
— | ||
|
56111
|
56111
56101-AC140
Glass, Windshield
[06.2002 - 01.2005] MCX20..XLS *UVCTT,T=4.7,W(RAIN SENSOR) |
56101-AC140 |
— | ||
|
56114
|
56114
56114-22050 Retainer, Windshield Glass[08.1999 - 06.2002] MCX20 |
56114-22050 |
from US $4 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[08.1999 - 08.2001] MCX20 |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[08.1999 - 08.2001] MCX20 |
56116-22050 |
from US $1.38 |
||
|
90467A0016C0
|
90467A0016C0
90467-A0016-C0
Clip, Radiator Grille
|
90467-A0016-C0 |
— | ||
