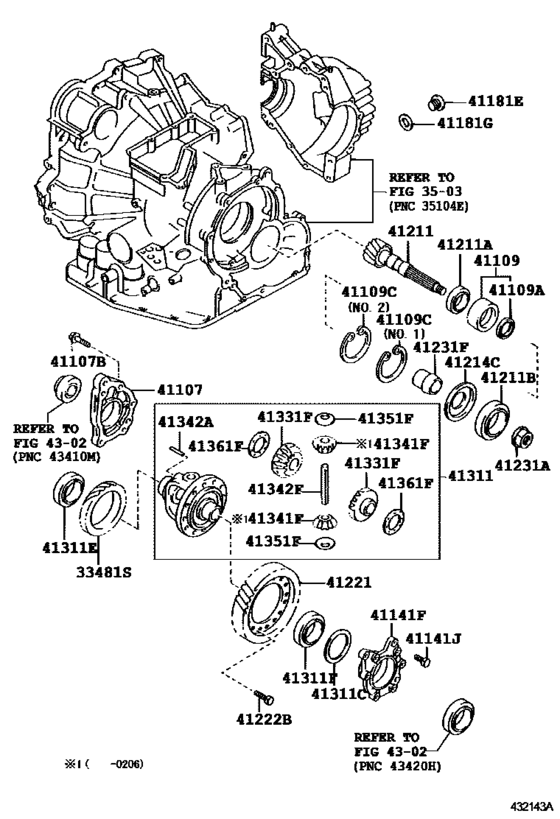

Front Axle Housing & Differential ([08.1999 - ] A541E (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-33030 Gear, Speedometer Drive (Atm)[08.1999 - 05.2000] MCX20 |
33481-33030 |
US $39.31 |
||
|
41107
|
41107
41107-33030 Retainer Sub-Assy, Front Differential Oil Seal[08.1999 - 06.2002] MCX20 |
41107-33030 |
US $50.09 |
||
|
41107B
|
41107B
90105-08331 Bolt (For Front Differential Oil Seal Retainer)[08.1999 - 06.2002] MCX20 |
90105-08331 |
US $1.75 |
||
|
41109
|
41109
41109-33020 Cage Sub-Assy, Differential Drive Pinion Bearing[08.1999 - 06.2002] MCX20 |
41109-33020 |
from US $41.35 |
||
|
41109A
|
41109A
90310-35007 Seal, Oil (For Differential Drive Pinion Bearing Cage)[08.1999 - 06.2002] MCX20 |
90310-35007 |
from US $3.30 |
||
|
41109C
|
41109C
90521-79008 Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)[08.1999 - 06.2002] MCX20 NO.2 |
90521-79008 |
US $3.20 |
||
|
41109C
|
41109C
90521-83002 Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)[08.1999 - 06.2002] MCX20 NO.1 |
90521-83002 |
US $4.22 |
||
|
41141F
|
41141F
41101-33050 Retainer, Front Differential Side Bearing[08.1999 - 06.2002] MCX20 |
41101-33050 |
US $311.58 |
||
|
41141J
|
41141J
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[08.1999 - 06.2002] MCX20 *8-1.25PX28-28 |
90105-08050 |
US $3.20 |
||
|
41141J
|
41141J
90105-08062 Bolt (For Overdrive Case & Transaxle Case Setting)[08.1999 - 06.2002] MCX20 *8-1.25PX29-24 |
90105-08062 |
US $2.34 |
||
|
41141J
|
41141J
90109-08242 Bolt(For Front Differential Side Bearing Retainer)[08.1999 - 06.2002] MCX20 *8-1.25PX36-23 |
90109-08242 |
US $2.18 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[08.1999 - 06.2002] MCX20 |
90341-18021 |
from US $2.44 |
||
|
41181G
|
41181G
90430-18008 Gasket[08.1999 - 06.2002] MCX20 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1999 - 06.2002] MCX20 |
90430-T0021 |
US $1.15 |
||
|
41211
|
41211
41211-33030
Pinion, Differential Drive
[08.1999 - 06.2002] MCX20 |
41211-33030 |
— | ||
|
41211A
|
41211A
90366-36003
Bearing, Tapered Roller (For Front Drive Pinion Front)
[08.1999 - 06.2002] MCX20 |
90366-36003 |
— | ||
|
41211B
|
41211B
90366-40074 Bearing, Tapered Roller (For Front Drive Pinion Rear)[08.1999 - 06.2002] MCX20 |
90366-40074 |
US $30.43 |
||
|
41214C
|
41214C
41214-33010 Slinger, Front Differential Drive Pinion Oil[08.1999 - 06.2002] MCX20 |
41214-33010 |
from US $7.28 |
||
|
41221
|
41221
41221-33010
Gear, Front Differential Ring
[08.1999 - 06.2002] MCX20 |
41221-33010 |
— | ||
|
41222B
|
41222B
90105-12154 Bolt (For Rear Differential Ring Gear Set)[08.1999 - 06.2002] MCX20 |
90105-12154 |
US $3.84 |
||
|
41231A
|
41231A
90179-24006 Nut, Drive Pinion Lock[08.1999 - 06.2002] MCX20 |
90179-24006 |
US $3.16 |
||
|
41231F
|
41231F
41231-33010 Spacer, Front Differential Drive Pinion Bearing[08.1999 - 06.2002] MCX20 |
41231-33010 |
US $19.51 |
||
|
41311
|
41311
41301-33020 Case, Front Differential[08.1999 - 06.2002] MCX20 |
41301-33020 |
from US $685.78 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.00,MARK 0 |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.05,MARK 1 |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.10,MARK 2 |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.15,MARK 3 |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.20,MARK 4 |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.25,MARK 5 |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.30,MARK 6 |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.35,MARK 7 |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.40,MARK 8 |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.45,MARK 9 |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.50,MARK A |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.55,MARK B |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.60,MARK C |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.65,MARK D |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.70,MARK E |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.75,MARK F |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.80,MARK G |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[08.1999 - 06.2002] MCX20 T=2.85,MARK H |
90564-76018 |
US $5.53 |
||
|
41311E
|
41311E
90366-57026 Bearing, Tapered Roller (For Front Differential Case Front)[08.1999 - 06.2002] MCX20 |
90366-57026 |
US $46.59 |
||
|
41311F
|
41311F
90366-50030 Bearing, Tapered Roller (For Front Differential Case Rear)[08.1999 - 06.2002] MCX20 |
90366-50030 |
US $38.88 |
||
|
41331F
|
41331F
41331-33010 Gear, Front Differential Side[08.1999 - 06.2002] MCX20 |
41331-33010 |
US $75.71 |
||
| replacement | |||||
|
41331F
|
41331F
41039-45H00 Gear, Front Differential Side[08.1999 - 06.2002] MCX20 |
41039-45H00 |
from US $214.03 |
||
|
41341F
|
41341F
41341-24010
Pinion, Rear Differential
[08.1999 - 06.2002] MCX20 |
41341-24010 |
— | ||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[08.1999 - 06.2002] MCX20 |
90250-06058 |
from US $1.99 |
||
|
41342F
|
41342F
41342-33010 Shaft, Front Differential Pinion, No.1[08.1999 - 06.2002] MCX20 |
41342-33010 |
US $31.16 |
||
|
41351F
|
41351F
41351-33011 Washer, Front Differential Pinion Thrust[08.1999 - 06.2002] MCX20 |
41351-33011 |
US $2.91 |
||
|
41361F
|
41361F
41361-33010 Washer, Front Differential Side Gear Thrust, No.1[08.1999 - 06.2002] MCX20 T=1.625 |
41361-33010 |
from US $4.08 |
||
|
41361F
|
41361F
41362-33080 Washer, Front Differential Side Gear Thrust, No.1[08.1999 - 06.2002] MCX20 T=1.725 |
41362-33080 |
US $4.22 |
||
|
41361F
|
41361F
41363-33010 Washer, Front Differential Side Gear Thrust, No.1[08.1999 - 06.2002] MCX20 T=1.825 |
41363-33010 |
US $4.51 |
||
