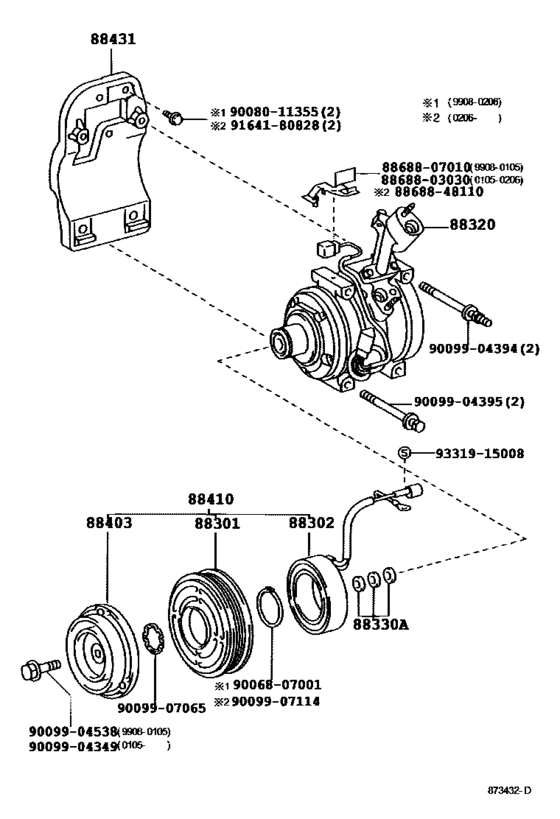

Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-07020 Rotor Sub-Assy, Magnet Clutch[08.1999 - 05.2001] MCX20 |
88412-07020 |
US $183.46 |
||
|
88301
|
88301
88412-48020
Rotor Sub-Assy, Magnet Clutch
[05.2001 - 06.2002] MCX20 |
88412-48020 |
— | ||
|
88302
|
88302
88411-06050
Stator Sub-Assy, Magnet Clutch
[05.2001 - 06.2002] MCX20 |
88411-06050 |
— | ||
|
88302
|
88302
88411-07030 Stator Sub-Assy, Magnet Clutch[08.1999 - 05.2001] MCX20 |
88411-07030 |
US $120.85 |
||
|
88320
|
88320
88320-07040 Compressor Assy, Cooler[08.1999 - 05.2001] MCX20 |
88320-07040 |
US $1,041.04 |
||
|
88320
|
88320
88320-07090 Compressor Assy, Cooler[05.2001 - 06.2002] MCX20 |
88320-07090 |
US $1,659.84 |
||
|
88330A
|
88330A
88335-14020 Washer[08.1999 - 06.2002] MCX20 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-07010 Hub Sub-Assy, Magnet Clutch[08.1999 - 05.2001] MCX20 |
88403-07010 |
US $160.16 |
||
|
88403
|
88403
88403-32010
Hub Sub-Assy, Magnet Clutch
[05.2001 - 06.2002] MCX20 |
88403-32010 |
— | ||
|
88410
|
88410
88410-07020 Clutch Assy, Magnet[08.1999 - 05.2001] MCX20 |
88410-07020 |
US $368.37 |
||
|
88410
|
88410
88410-07030
Clutch Assy, Magnet
[05.2001 - 06.2002] MCX20 |
88410-07030 |
— | ||
|
88431
|
88431
88431-07021 Bracket, Compressor Mounting, No.1[08.1999 - 06.2002] MCX20 |
88431-07021 |
US $132.50 |
||
|
88431
|
88431
88431-33041
Bracket, Compressor Mounting, No.1
[08.2003 -] MCX20 (J) |
88431-33041 |
— | ||
|
8868803030
|
8868803030
88688-03030
Bracket, Cooler Compressor
|
88688-03030 |
— | ||
|
8868807010
|
8868807010
88688-07010 Bracket, Cooler Diaphragm |
88688-07010 |
US $8.15 |
||
|
8868848110
|
8868848110
88688-48110
Bracket, Cooler Compressor
|
88688-48110 |
— | ||
|
9006807001
|
9006807001
90068-07001 New Genuine Part |
90068-07001 |
US $3.93 |
||
|
9008011355
|
9008011355
90080-11355
New Genuine Part
|
90080-11355 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904394
|
9009904394
90099-04394
Bolt
|
90099-04394 |
— | ||
|
9009904395
|
9009904395
90099-04395 BOLT W-WASHER |
90099-04395 |
from US $1.68 |
||
|
9009904538
|
9009904538
90099-04538 New Genuine Part |
90099-04538 |
US $1.60 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9164180828
|
9164180828
91641-80828 New Genuine Part |
91641-80828 |
US $1.14 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
